SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| SGI Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) | SPECpower_ssj2008 = 681 overall ssj_ops/watt | ||||
| Test Sponsor: | SGI | SPEC License #: | 4 | Test Method: | Single Node |
| Tested By: | SGI | Test Location: | Mountain View,CA, USA | Test Date: | May 5, 2008 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Jun 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

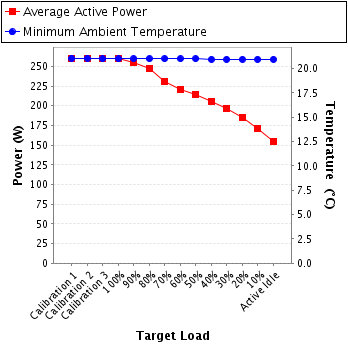

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 260 | 21.1 |
| Calibration 2 | 260 | 21.1 |
| Calibration 3 | 260 | 21.0 |
| 100% | 260 | 21.0 |
| 90% | 255 | 21.0 |
| 80% | 247 | 21.0 |
| 70% | 231 | 21.0 |
| 60% | 221 | 21.0 |
| 50% | 214 | 21.0 |
| 40% | 206 | 20.9 |
| 30% | 197 | 20.9 |
| 20% | 185 | 20.9 |
| 10% | 172 | 20.9 |
| Active Idle | 155 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 |
| Serial Number: | 91H132263 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd |
| Calibration Label: | 08-0385 |
| Date of Calibration: | 29-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.14.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

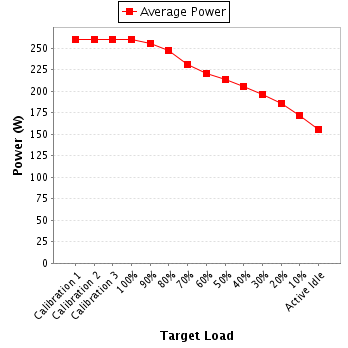

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | -- | 1.35 | -- | 0.953 | 260 | -- |
| Calibration 2 | 203 | -- | 1.35 | -- | 0.953 | 260 | -- |
| Calibration 3 | 203 | -- | 1.35 | -- | 0.953 | 260 | -- |
| 100% | 203 | -- | 1.34 | -- | 0.953 | 260 | -- |
| 90% | 203 | -- | 1.32 | -- | 0.952 | 255 | -- |
| 80% | 203 | -- | 1.28 | -- | 0.950 | 247 | -- |
| 70% | 203 | -- | 1.21 | -- | 0.946 | 231 | -- |
| 60% | 203 | -- | 1.16 | -- | 0.943 | 221 | -- |
| 50% | 203 | -- | 1.12 | -- | 0.940 | 214 | -- |
| 40% | 203 | -- | 1.08 | -- | 0.936 | 206 | -- |
| 30% | 203 | -- | 1.04 | -- | 0.931 | 197 | -- |
| 20% | 203 | -- | 0.988 | -- | 0.924 | 185 | -- |
| 10% | 203 | -- | 0.925 | -- | 0.915 | 172 | -- |
| Active Idle | 203 | -- | 0.846 | -- | 0.904 | 155 | -- |
