Hewlett Packard Enterprise ProLiant DL380 Gen10 75789 SPECjbb2015-MultiJVM max-jOPS
41037 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: September 09, 2018
SPEC license #: 3 Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Thu Oct 11 18:37:58 EDT 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2018
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 06/20/2018
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 1607 (OS Build 14393.2273)
AvailableMay-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Memory Patrol Scrub=Disabled
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts --add-modules=java.xml.bind -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms725g -Xmx725g -Xmn672g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300

Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 74937 75789 76640 77492 78344
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 11864 44706 57565 61738 61738 41037
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 852 - / 852 - / 852 - / 852 - / 852 - / 852
1000us 7664 / 8516 1703 / 2555 852 / 1703 - / 852 - / 852 - / 852
5000us 69828 / 39172 59609 / 24695 51094 / 13625 45133 / 11922 - / 852 - / 852
10000us 70679 / 60461 66422 / 39172 58758 / 39172 51094 / 26398 22992 / 11070 - / 852
25000us 74086 / 73234 70679 / 71531 65570 / 66422 62164 / 63015 49390 / 40023 11922 / 5961
50000us 74086 / 74937 70679 / 71531 67273 / 68125 65570 / 66422 62164 / 54500 34062 / 5961
75000us 74086 / 74937 70679 / 71531 67273 / 68125 66422 / 67273 62164 / 61312 38320 / 5961
100000us 74937 / 75789 71531 / 72383 67273 / 68125 67273 / 68125 62164 / 61312 38320 / 5961
200000us 74937 / 75789 72383 / 73234 69828 / 70679 67273 / 68125 66422 / 64719 55351 / 33211
500000us 75789 / - 74086 / 74937 71531 / 72383 71531 / 72383 69828 / 70679 68976 / 65570
1000000us 75789 / - 75789 / - 74086 / 74937 74086 / 74937 74086 / 73234 70679 / 71531
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

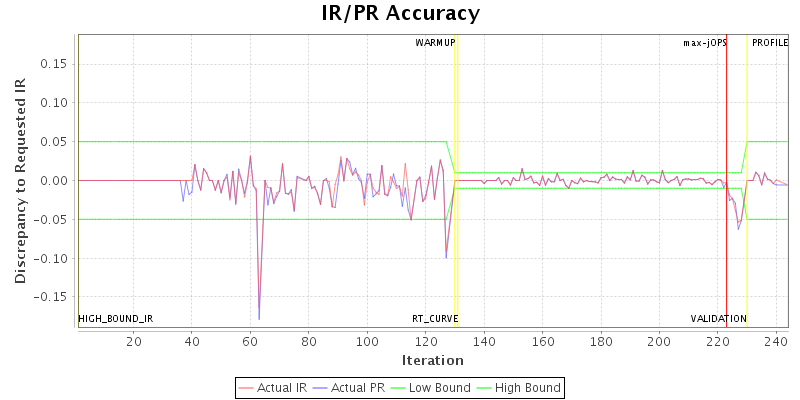

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.forkjoin.workers 56 {Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 85156 IR
High-bound (settled) is 78930 IR
