SPECviewperf 13 Results

http://www.spec.org/gwpg

Scores Configuration 3dsmax-06catia-05creo-02energy-02maya-05medical-02showcase-02snx-03sw-04

Composite Scores

SPECviewperf measures the frame rate, or frames per second (FPS), at which your graphics card can render scenes across a wide variety of applications and usage models. Each viewset represents an application or a usage model, and each composite score below is based on a weighted geometric mean of many different scenes and rendering modes.

Composites by Viewset

To explore a viewset in more detail, including the measured frame rate for each test of which the composite score is comprised, click on the viewset name in the menu to the left.

Viewset	Composite Score	Window
3dsmax-06	236.82	1900 x 1060
catia-05	321.25	1900 x 1060
creo-02	284.49	1900 x 1060
energy-02	56.28	1900 x 1060
maya-05	335.38	1900 x 1060
medical-02	102.47	1900 x 1060
showcase-02	141.3	1900 x 1060
snx-03	545.67	1900 x 1060
sw-04	193.08	1900 x 1060

Benchmark Information

Benchmark
Name	SPECgpc SPECviewperf 13 Benchmark
Version	13.0.0
Submission
Test Date	Wed Feb 13 2019 12:41:54 GMT+0900 (Tokyo Standard Time)
Submission Candidate	Yes
Submitting Company	Fujitsu
Comments	Vertical sync set to off. Set Power Options to High Performance. Graphics driver downloaded from https://www.nvidia.com/Download/driverResults.aspx/142448/en-us

System Configuration

Workstation
Manufacturer	FUJITSU
Model	CELSIUS R970
BIOS Name	BIOS Date: 02/23/18 10:21:04 Ver: R1.7.0
Manufacturer	FUJITSU // American Megatrends Inc.
Serial Number	G816F001HQ
Version	FUJ - 10700000
SMBIOS Version	V5.0.0.12 R1.7.0 for D3488-A1x
OS Name	Microsoft Windows 10 Pro
Build Number	17134
Graphics
Name	NVIDIA Quadro RTX 5000
Driver Version	25.21.14.1881
Resolution	1920 x 1080
DPI	96 (Scale Factor: 100%)
Processor
Name	Intel(R) Xeon(R) Gold 6144 CPU @ 3.50GHz
Address Width	64-bit
Nominal Clock Speed	3501 MHz
Number Of Cores	8
Number Of Logical Processors	8
Name	Intel(R) Xeon(R) Gold 6144 CPU @ 3.50GHz
Address Width	64-bit
Nominal Clock Speed	3492 MHz
Number Of Cores	8
Number Of Logical Processors	8
Memory
CPU1_DIMM_A1	32 GB 2666 MHz
CPU1_DIMM_B1	32 GB 2666 MHz
CPU1_DIMM_C1	32 GB 2666 MHz
CPU1_DIMM_D1	32 GB 2666 MHz
CPU1_DIMM_E1	32 GB 2666 MHz
CPU1_DIMM_F1	32 GB 2666 MHz
CPU2_DIMM_G1	32 GB 2666 MHz
CPU2_DIMM_H1	32 GB 2666 MHz
CPU2_DIMM_J1	32 GB 2666 MHz
CPU2_DIMM_K1	32 GB 2666 MHz
CPU2_DIMM_L1	32 GB 2666 MHz
CPU2_DIMM_M1	32 GB 2666 MHz
Disk Drives
Drive Model	SAMSUNG MZVKW1T0HMLH-00000
Drive Capacity	953.86 GB
Drive Model	SAMSUNG MZVKW1T0HMLH-00000
Drive Capacity	953.86 GB
Drive Model	ST1000NM0033-9ZM173
Drive Capacity	931.51 GB
Display
Fujitsu E22T-7 LED (analog)

3dsmax-06

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	3dsmax_Arch_Shaded	311.71	9.52	4700	15.08	02/13/19 13:35:11
2	3dsmax_Arch_Graphite	193.13	9.52	2900	15.02	02/13/19 13:35:27
3	3dsmax_Space_Wireframe	166.67	9.52	2500	15	02/13/19 13:35:44

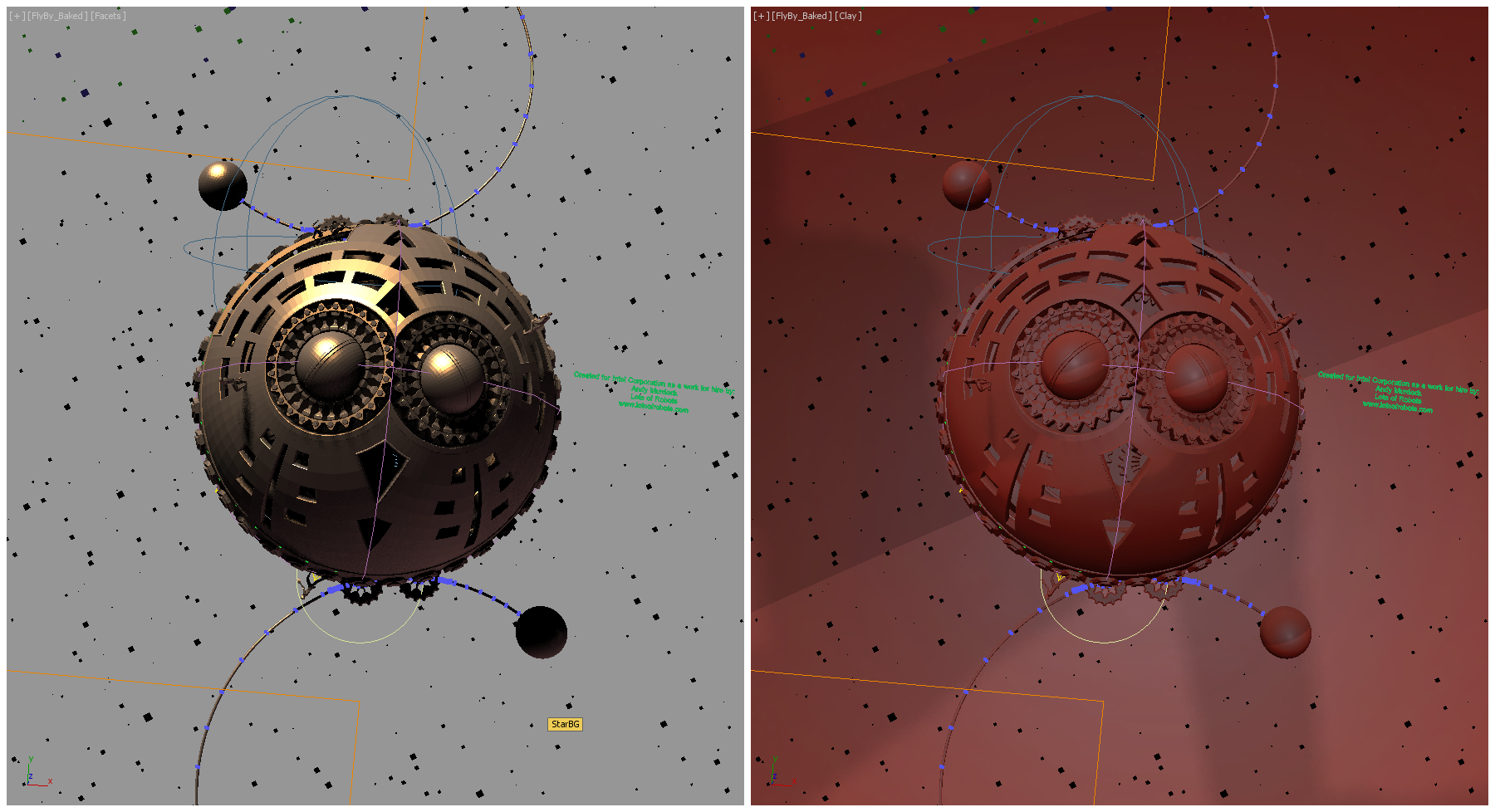

4	3dsmax_Space_Clay	79.18	9.52	1200	15.16	02/13/19 13:36:01
5	3dsmax_Underwater_Wireframe	515.6	9.52	7750	15.03	02/13/19 13:36:16
6	3dsmax_Underwater_Shaded	345.58	9.52	5200	15.05	02/13/19 13:36:32
7	3dsmax_HugeFish_Wireframe	324.65	9.52	4875	15.02	02/13/19 13:36:50
8	3dsmax_HugeFish_Shaded	240.91	9.52	3625	15.05	02/13/19 13:37:08
9	3dsmax_Office_Realistic	454.3	9.52	6850	15.08	02/13/19 13:37:25
10	3dsmax_Office_Shaded	102.06	9.52	1550	15.19	02/13/19 13:37:42
11	3dsmax_Office_RealisticMats	276.37	4.8	4150	15.02	02/13/19 13:37:59

Screen Grabs Folder
Text Log File
XML Result File

catia-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	CATIA_car_dof	431.54	2.75	6480	15.02	02/13/19 13:38:15
2	CATIA_car_pencil	424.47	2.75	6480	15.27	02/13/19 13:38:32

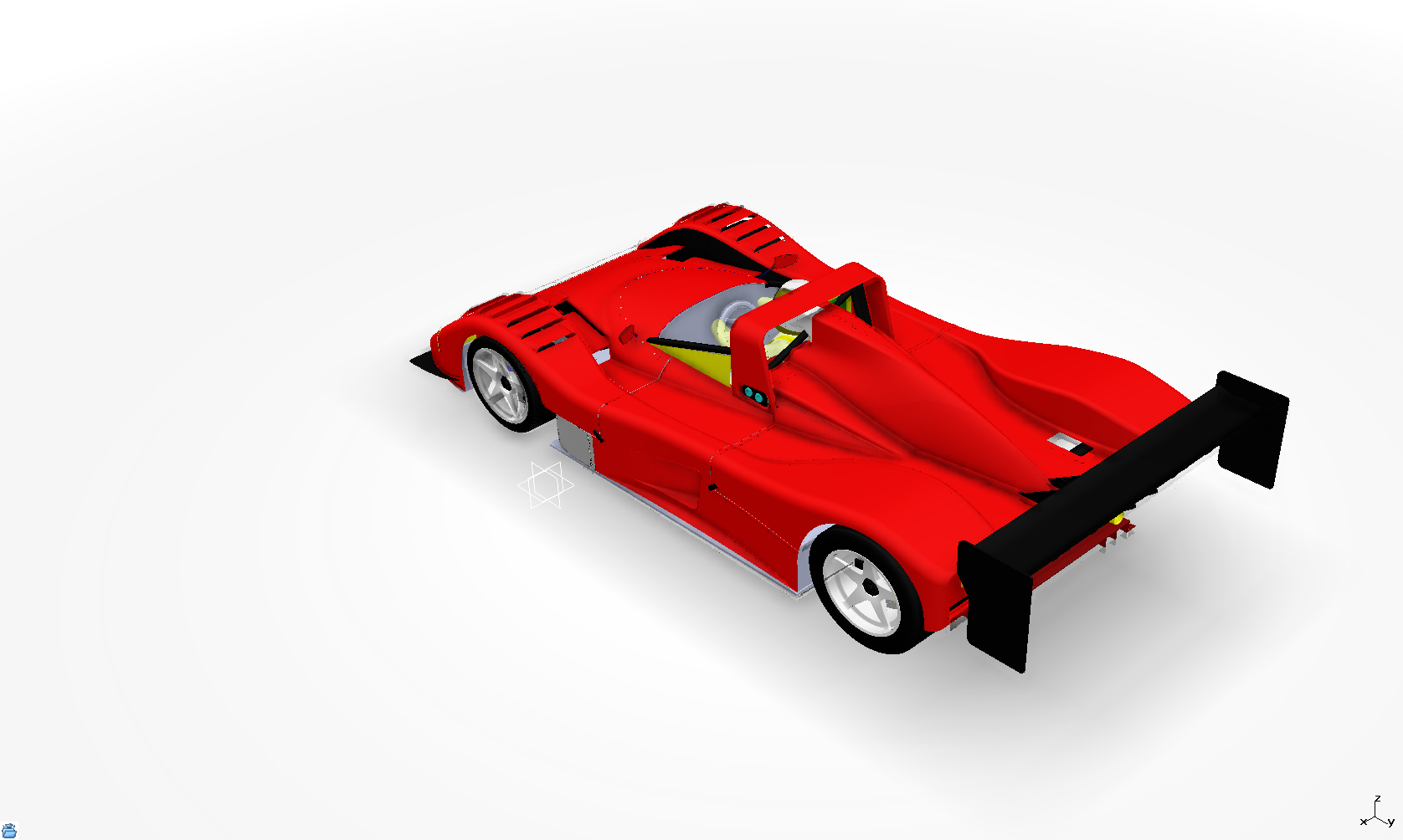

3	CATIA_car_ssao	463.56	9.89	7200	15.53	02/13/19 13:38:48

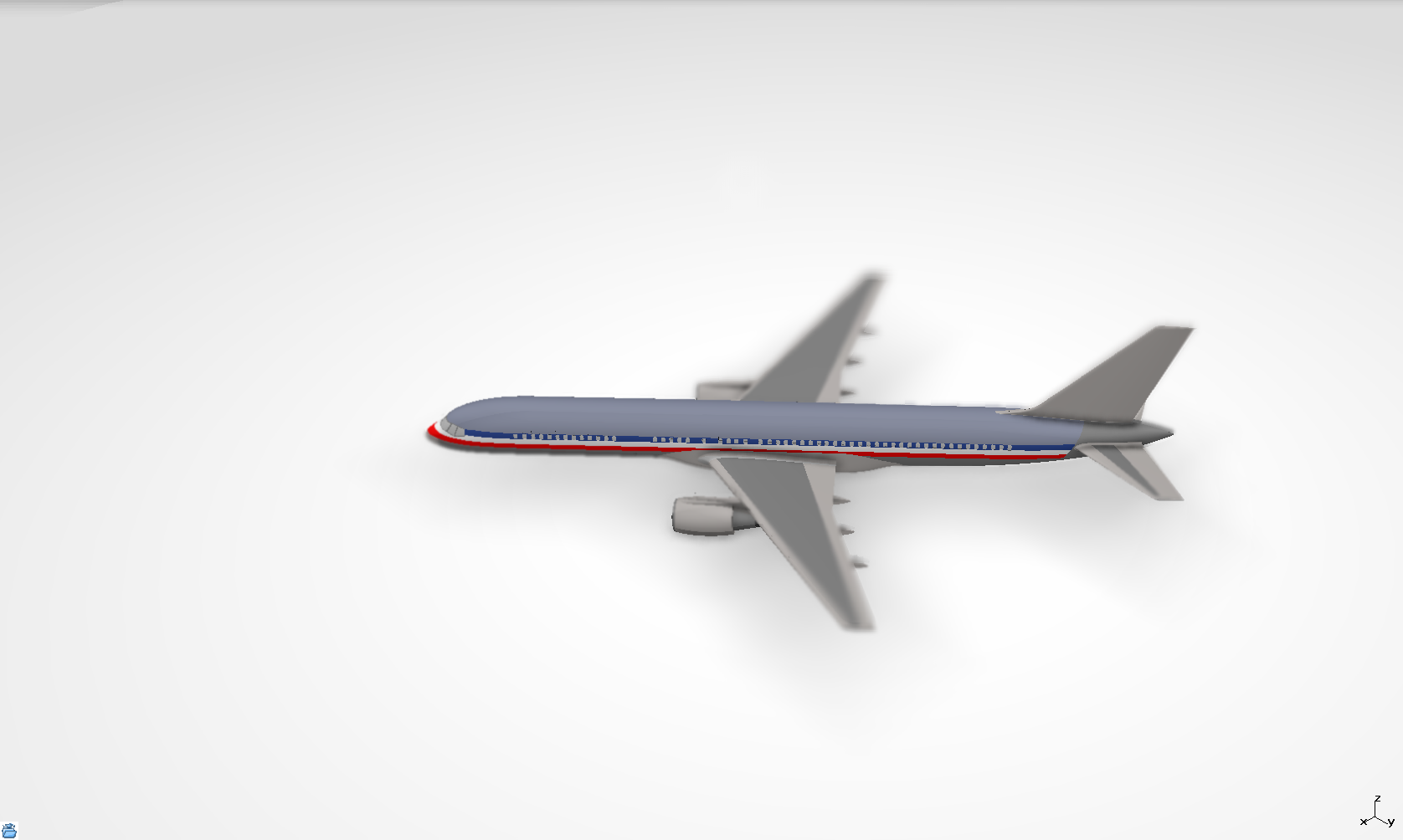

4	CATIA_plane_dof	479.52	2.75	7200	15.02	02/13/19 13:39:03
5	CATIA_plane_edges	2001.46	0	30240	15.11	02/13/19 13:39:19

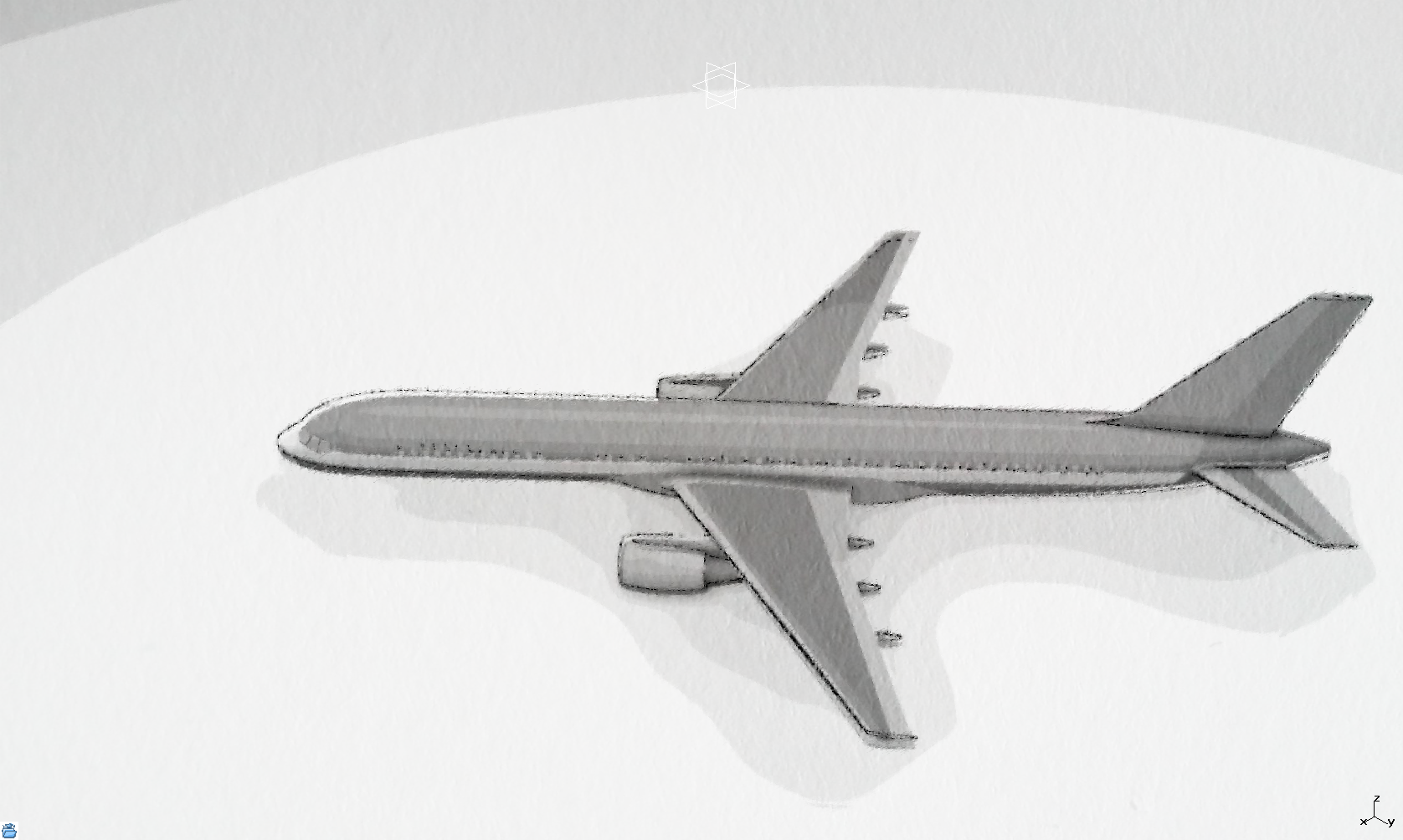

6	CATIA_plane_pencil	485.5	2.75	7920	16.31	02/13/19 13:39:36

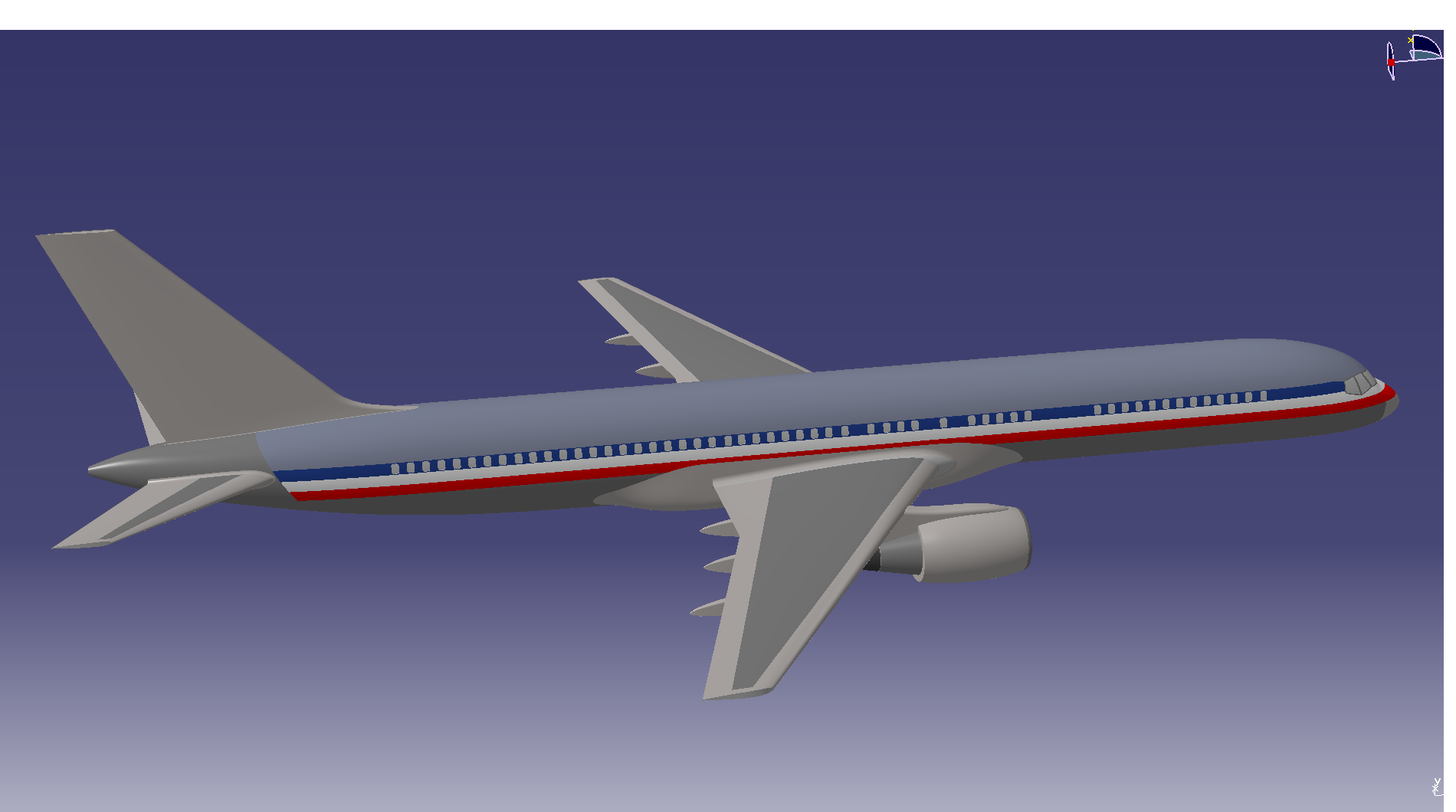

7	CATIA_plane_shaded	1112.61	9.89	17280	15.53	02/13/19 13:39:52

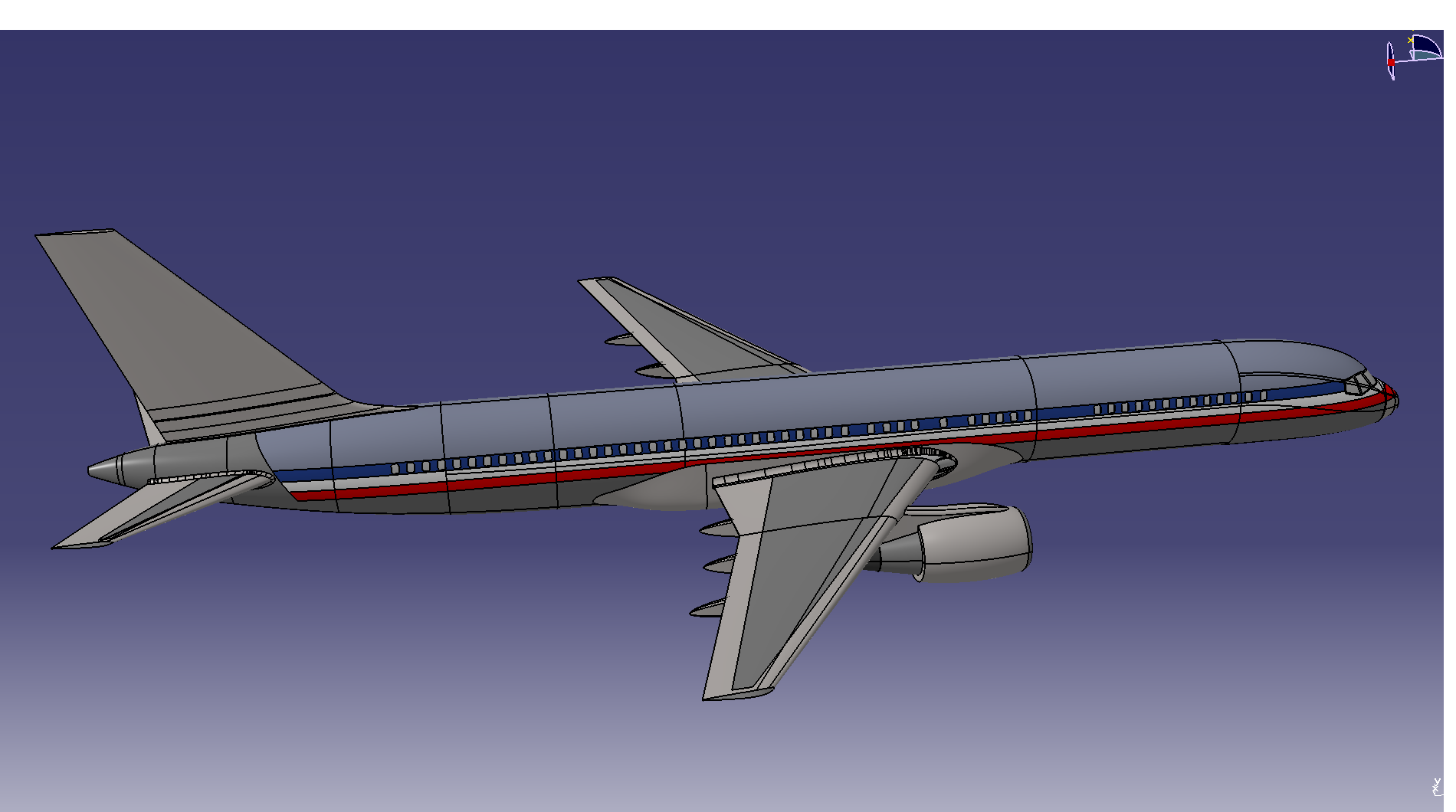

8	CATIA_plane_shadedEdges	1091.48	9.89	16560	15.17	02/13/19 13:40:08
9	CATIA_plane_ssao	711.84	9.89	10800	15.17	02/13/19 13:40:24
10	CATIA_car_01	229.93	9.89	3600	15.66	02/13/19 13:40:42
11	CATIA_car_02	246.78	9.89	3960	16.05	02/13/19 13:40:59
12	CATIA_car_04	143.55	9.88	2160	15.05	02/13/19 13:41:16
13	CATIA_plane_01	97.3	9.89	1800	18.5	02/13/19 13:41:37

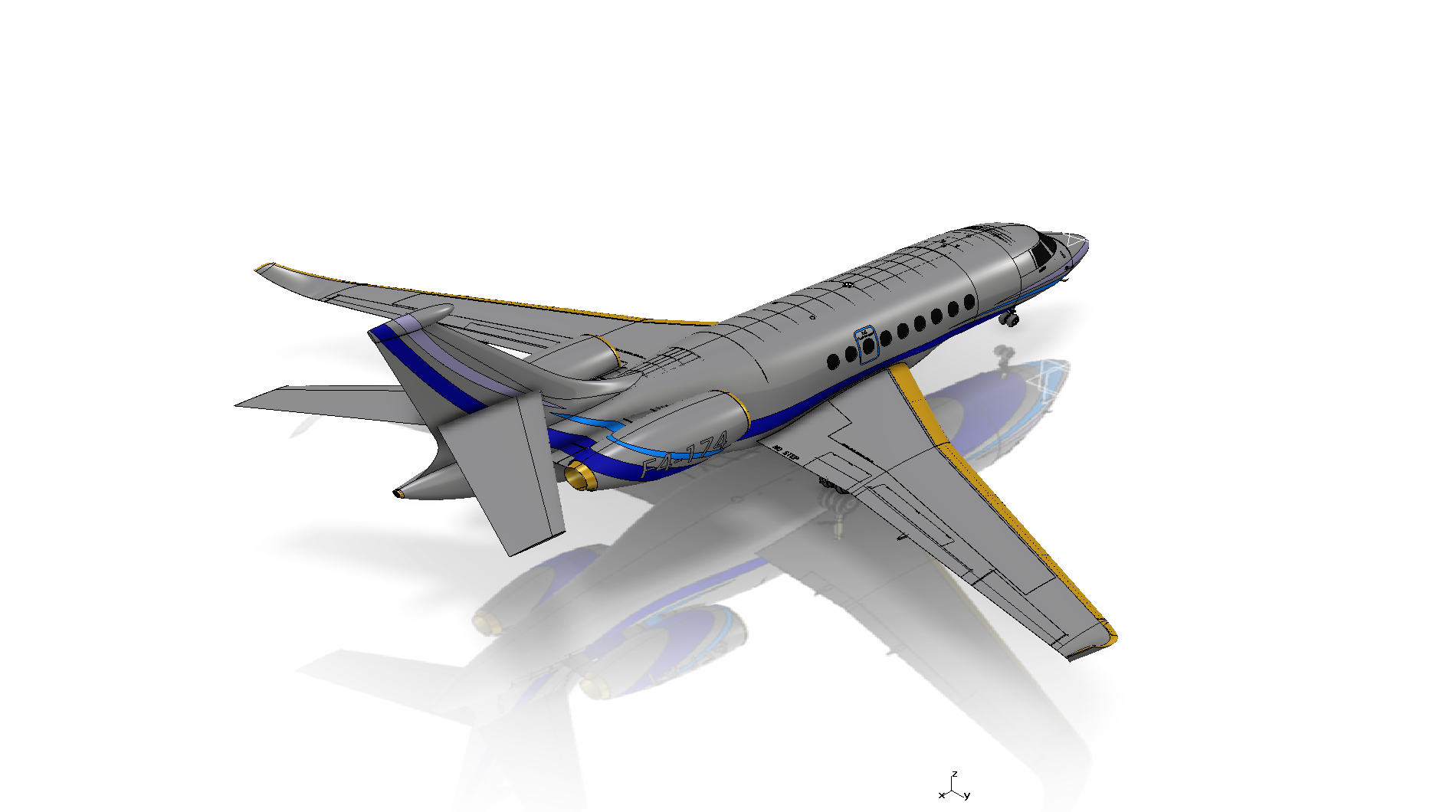

14	CATIA_plane_02	77.97	9.89	1440	18.47	02/13/19 13:41:58

Screen Grabs Folder
Text Log File
XML Result File

creo-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Creo_02_test_01	66.15	6.66	1044	15.78	02/13/19 13:42:19
2	Creo_02_test_02	65.96	6.67	1044	15.83	02/13/19 13:42:40
3	Creo_02_test_03	65.06	6.67	1044	16.05	02/13/19 13:43:02
4	Creo_02_test_04	287.77	10	4375	15.2	02/13/19 13:43:21
5	Creo_02_test_05	595.51	10	9072	15.23	02/13/19 13:43:38
6	Creo_02_test_06	689.93	10	10500	15.22	02/13/19 13:43:55
7	Creo_02_test_07	82.28	7.5	1400	17.01	02/13/19 13:44:16
8	Creo_02_test_08	444.79	7.5	6804	15.3	02/13/19 13:44:33
9	Creo_02_test_09	695.69	7.5	10500	15.09	02/13/19 13:44:50
10	Creo_059_10	380.53	7.5	5708	15	02/13/19 13:45:06
11	Creo_02_test_11	726.34	3.33	11020	15.17	02/13/19 13:45:22
12	Creo_057_12	568.6	3.34	8529	15	02/13/19 13:45:39
13	Creo_02_test_13	185.12	3.33	2800	15.13	02/13/19 13:45:58
14	Creo_02_test_14	503.89	3.34	7700	15.28	02/13/19 13:46:15
15	Creo_02_test_15	614.82	3.33	9261	15.06	02/13/19 13:46:32

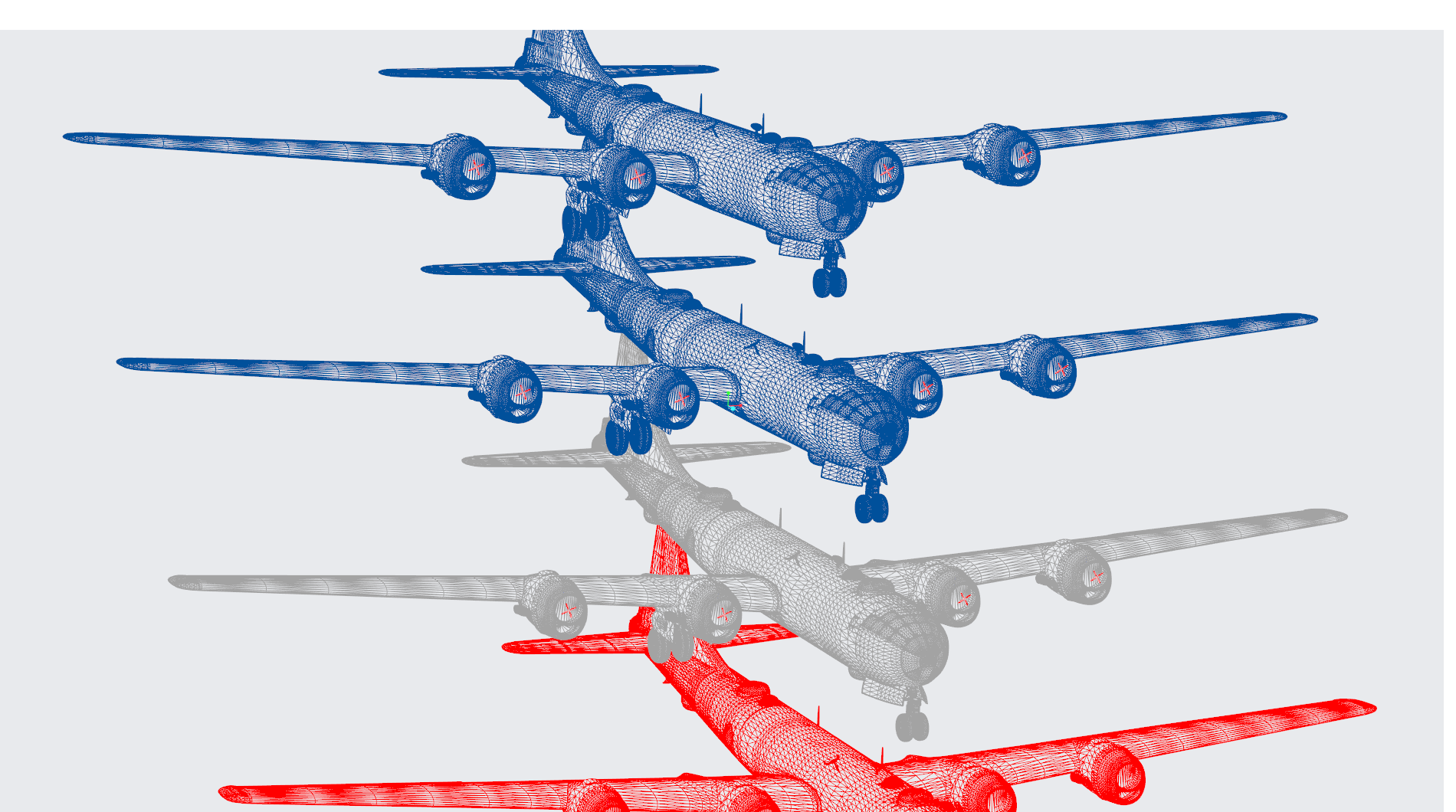

16	Creo_060_16	450.33	3.33	6755	15	02/13/19 13:46:48

Screen Grabs Folder
Text Log File
XML Result File

energy-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	81.37	16.67	1260	15.48	02/13/19 13:47:05

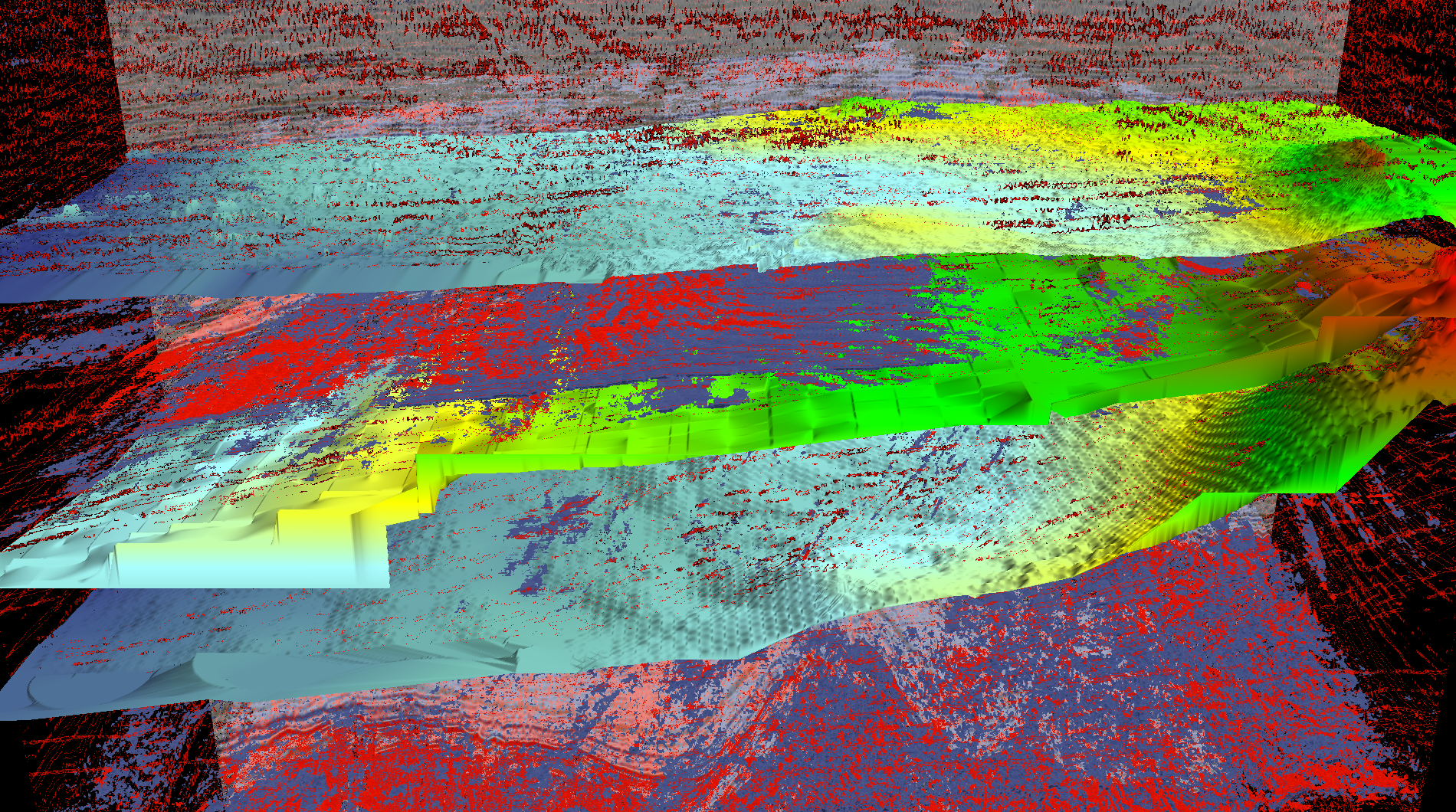

2	Test2	38.47	16.67	720	18.72	02/13/19 13:47:27

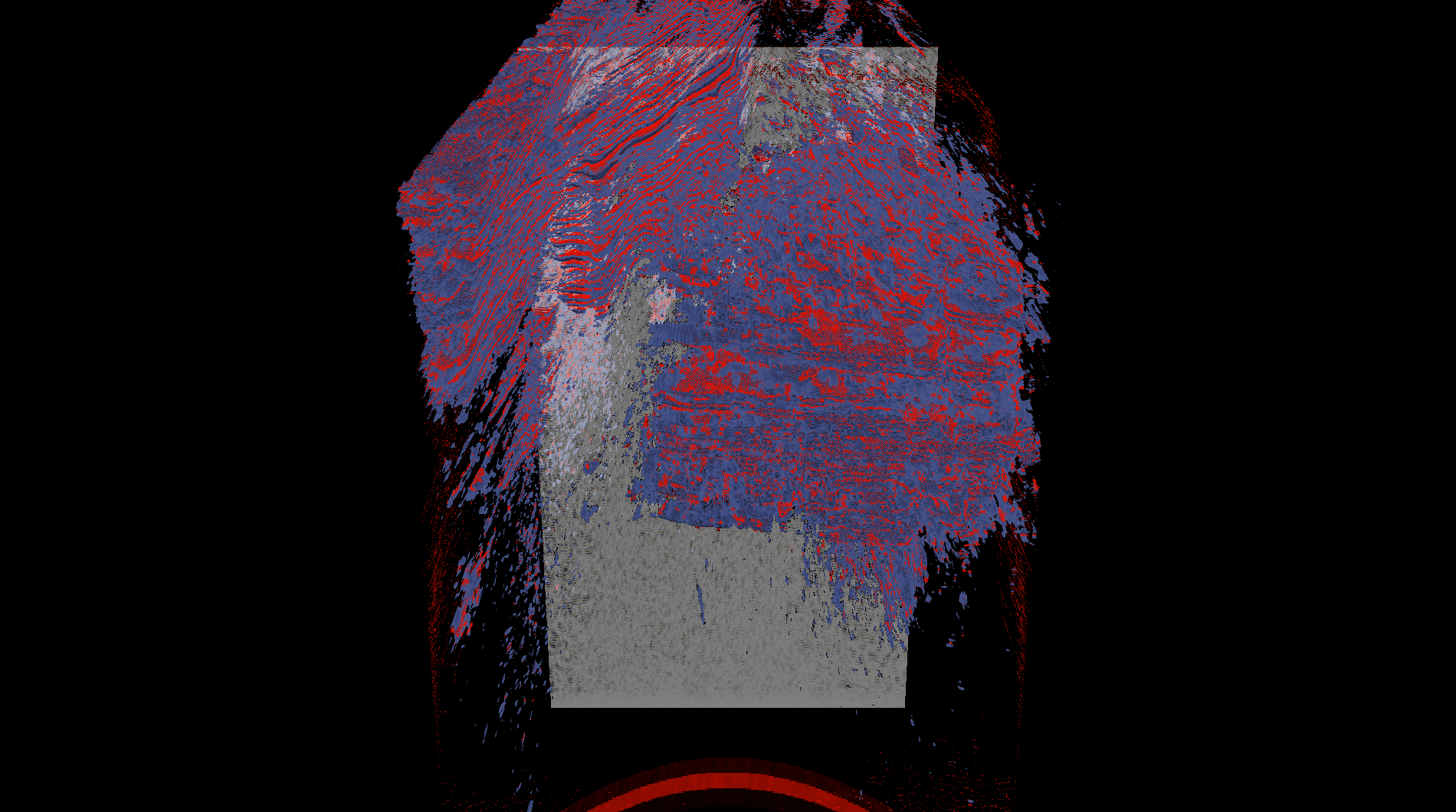

3	Test3	38.55	16.67	630	16.34	02/13/19 13:47:45

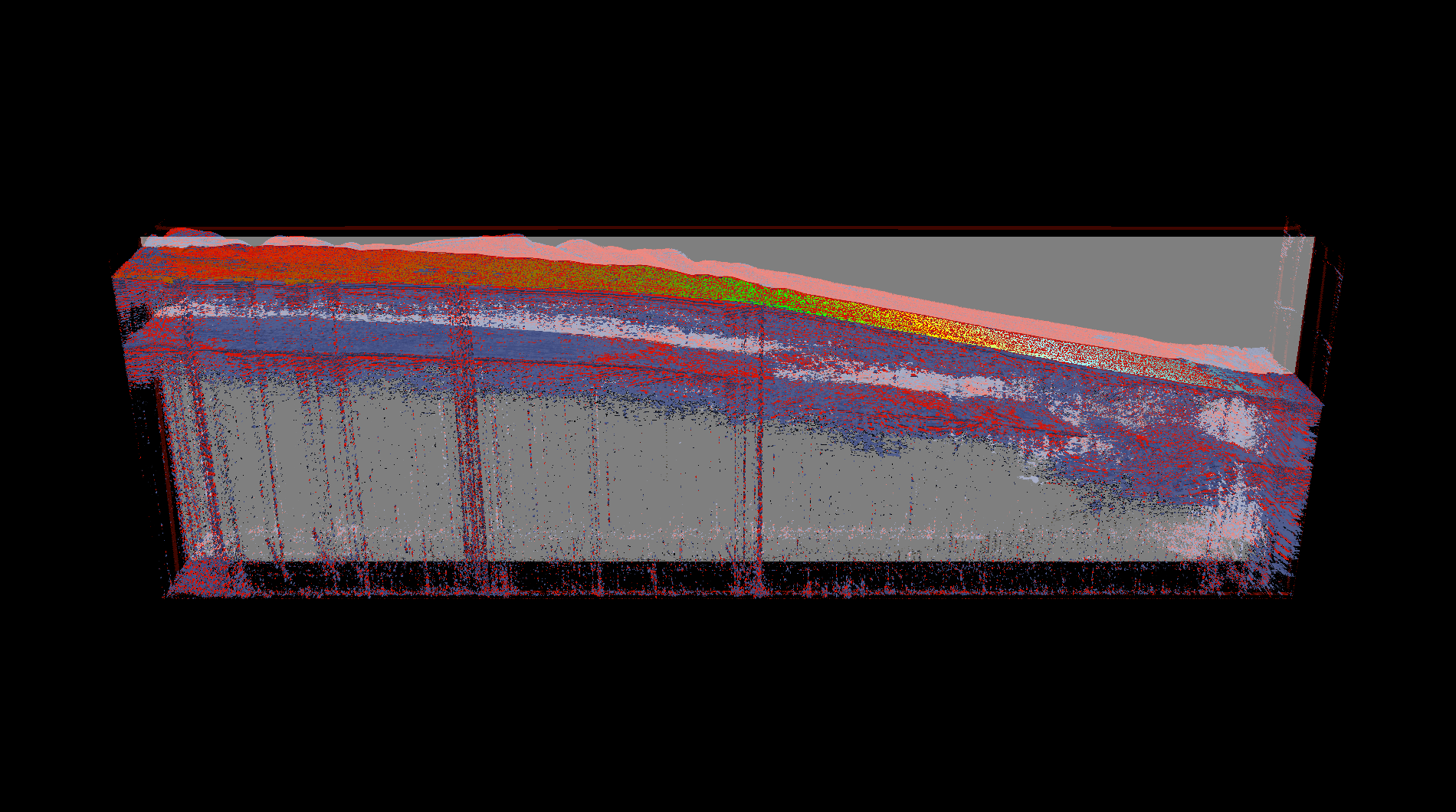

4	Test4	106.34	16.67	1620	15.23	02/13/19 13:48:01
5	Test5	48.81	16.66	900	18.44	02/13/19 13:48:23
6	Test6	50.72	16.66	810	15.97	02/13/19 13:48:41

Screen Grabs Folder
Text Log File
XML Result File

maya-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Maya_01	68.72	8.33	1062	15.45	02/13/19 13:49:00
2	Maya_02	857.5	8.33	12956	15.11	02/13/19 13:49:16
3	Maya_03	145.05	12.5	2212	15.25	02/13/19 13:49:42
4	Maya_04	513.46	12.5	7742	15.08	02/13/19 13:50:00

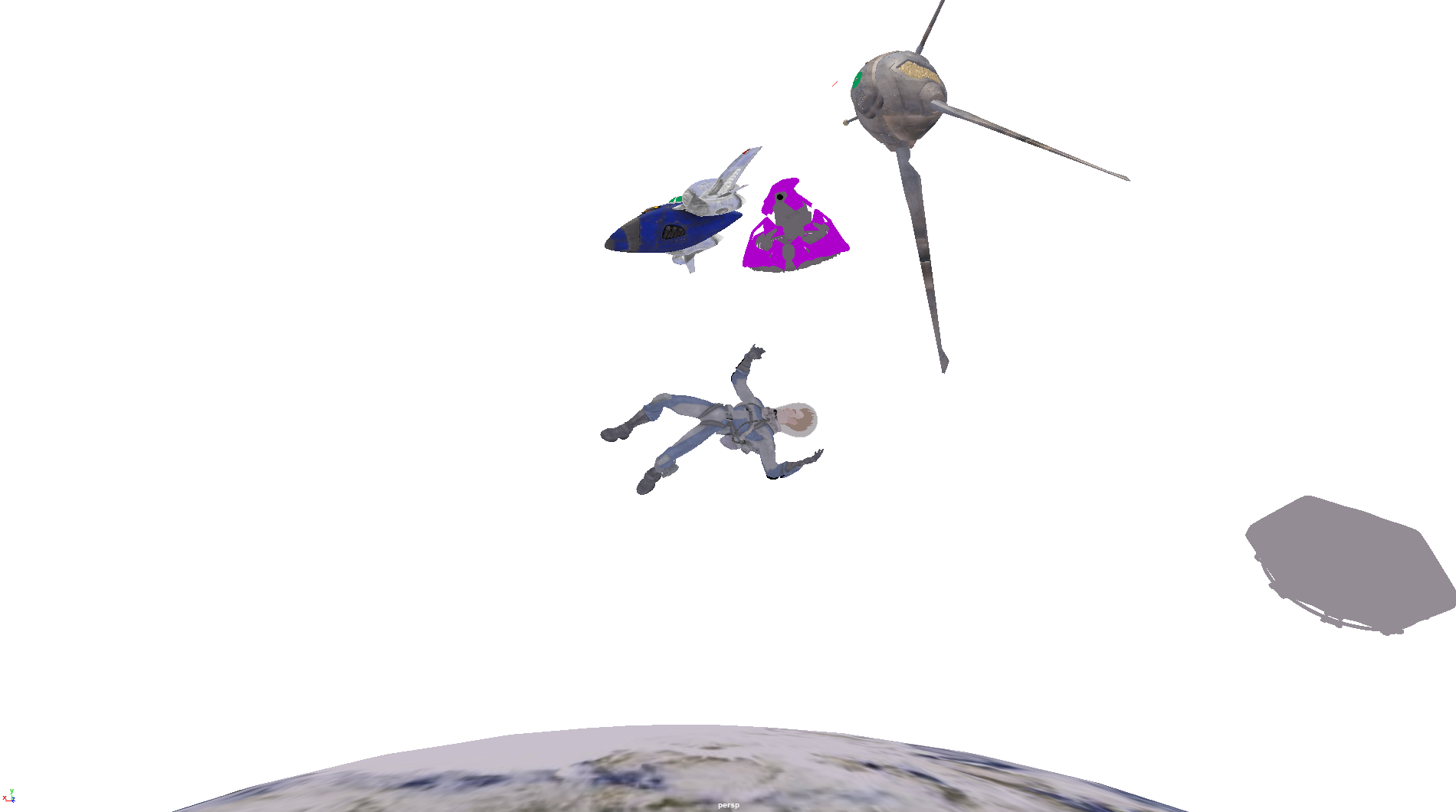

5	Maya_07	298.33	12.5	4582	15.36	02/13/19 13:50:17
6	Maya_08	243.67	8.33	3792	15.56	02/13/19 13:50:35

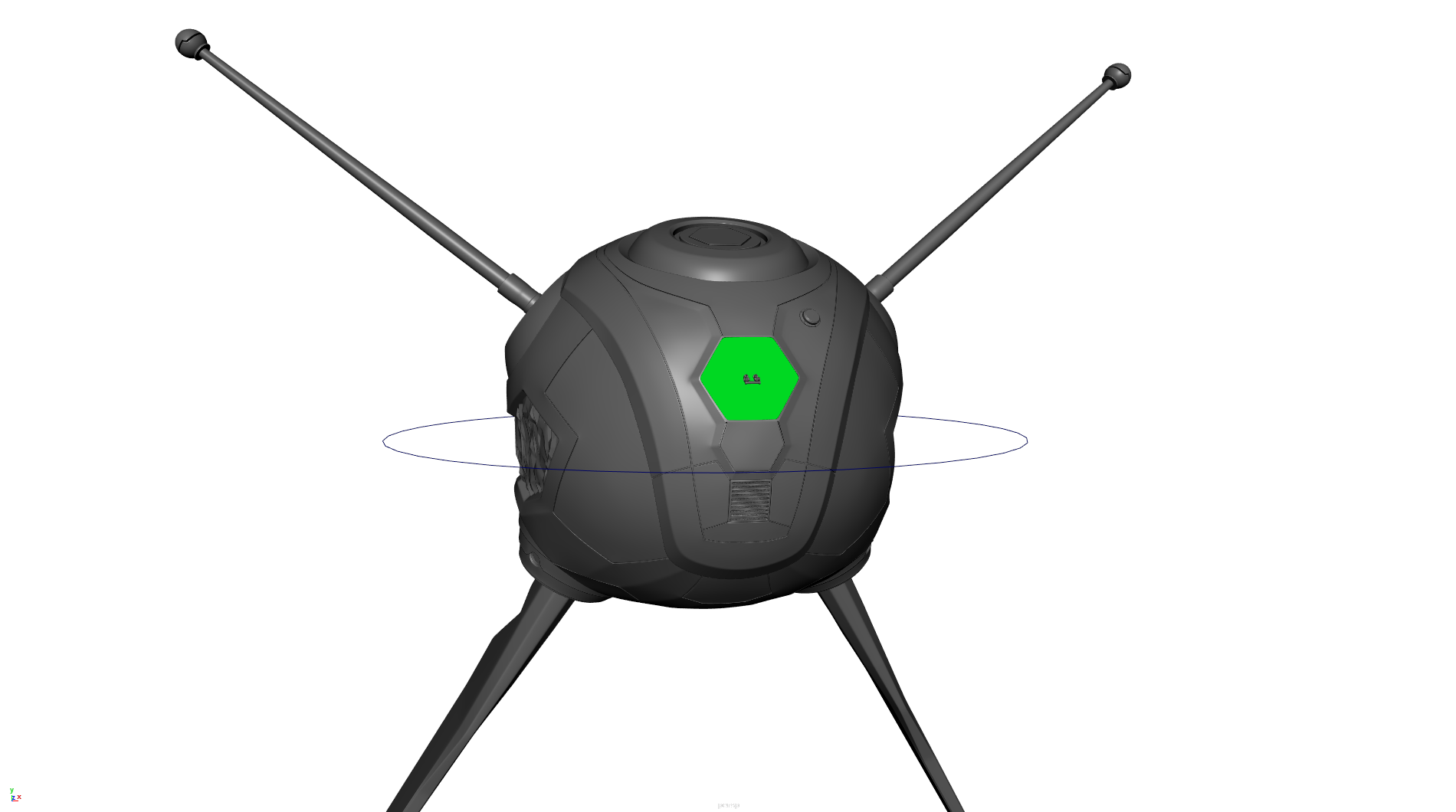

7	Maya_09	1194.59	8.33	18012	15.08	02/13/19 13:50:50

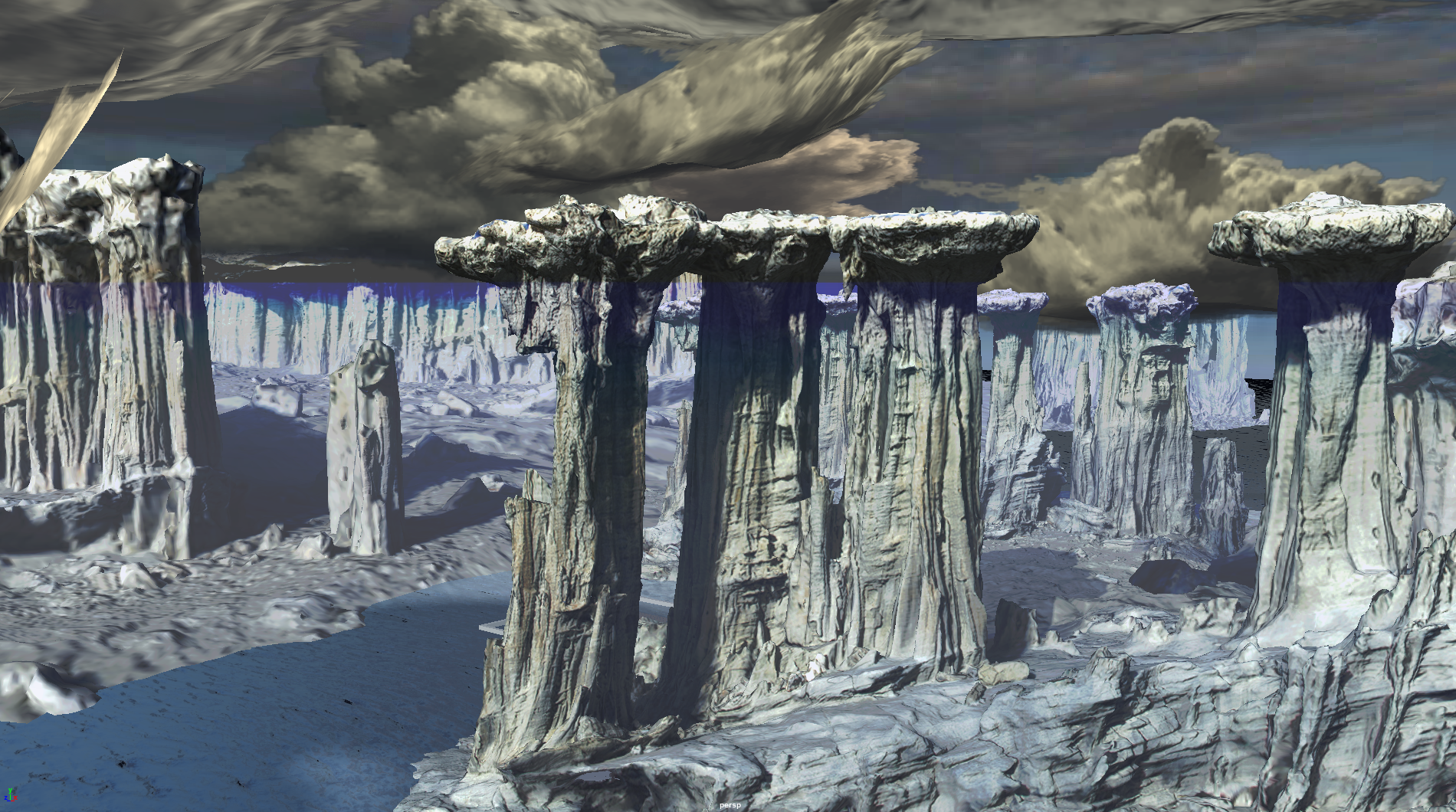

8	Maya_10	421.13	12.5	6317	15	02/13/19 13:51:07
9	Maya_11	126.77	8.34	2054	16.2	02/13/19 13:51:25
10	Maya_12	1029.04	8.34	15484	15.05	02/13/19 13:51:41

Screen Grabs Folder
Text Log File
XML Result File

medical-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	234.08	12.5	2981	12.73	02/13/19 13:51:55

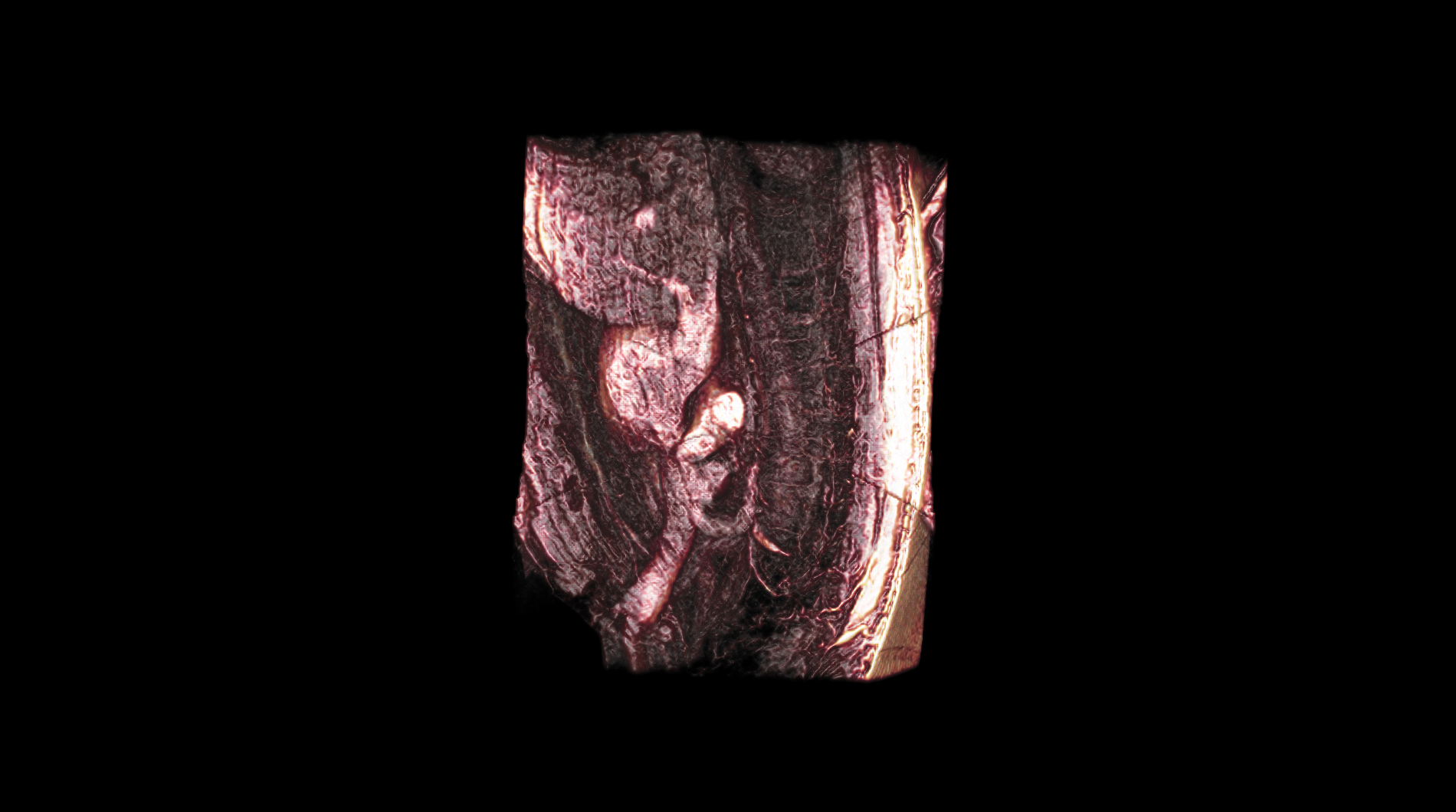

2	Test2	373.7	12.5	4607	12.33	02/13/19 13:52:07
3	Test3	71.95	12.5	896	12.45	02/13/19 13:52:21
4	Test4	38.02	12.5	464	12.2	02/13/19 13:52:35
5	Test5	157.03	12.5	1904	12.13	02/13/19 13:52:47
6	Test6	109.99	12.5	1344	12.22	02/13/19 13:53:00
7	Test7	45.12	12.5	552	12.23	02/13/19 13:53:13
8	Test8	65.16	12.5	840	12.89	02/13/19 13:53:26

Screen Grabs Folder
Text Log File
XML Result File

showcase-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Showcase_AmbientShadows	143.55	25	2400	16.72	02/13/19 13:53:45
2	Showcase_bothShadows	140.79	25	2400	17.05	02/13/19 13:54:04
3	Showcase_NoShadows	142.35	25	2400	16.86	02/13/19 13:54:23
4	Showcase_Shadows	138.55	25	2100	15.16	02/13/19 13:54:41

Screen Grabs Folder
Text Log File
XML Result File

snx-03

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	NX8_AdvancedStudioAA	352.08	7.5	5760	16.36	02/13/19 13:55:00
2	NX8_ShadedAA	672.35	10	10800	16.06	02/13/19 13:55:18
3	NX8_ShadedWithEdgeAA	447.4	20	7200	16.09	02/13/19 13:55:37
4	NX8_StudioAA	374.24	5	5760	15.39	02/13/19 13:55:55
5	NX8_powerTrain_Wireframe	577.15	7.5	9000	15.59	02/13/19 13:56:13
6	NX8_suvAdvancedStudio	782.56	7.5	12240	15.64	02/13/19 13:56:31

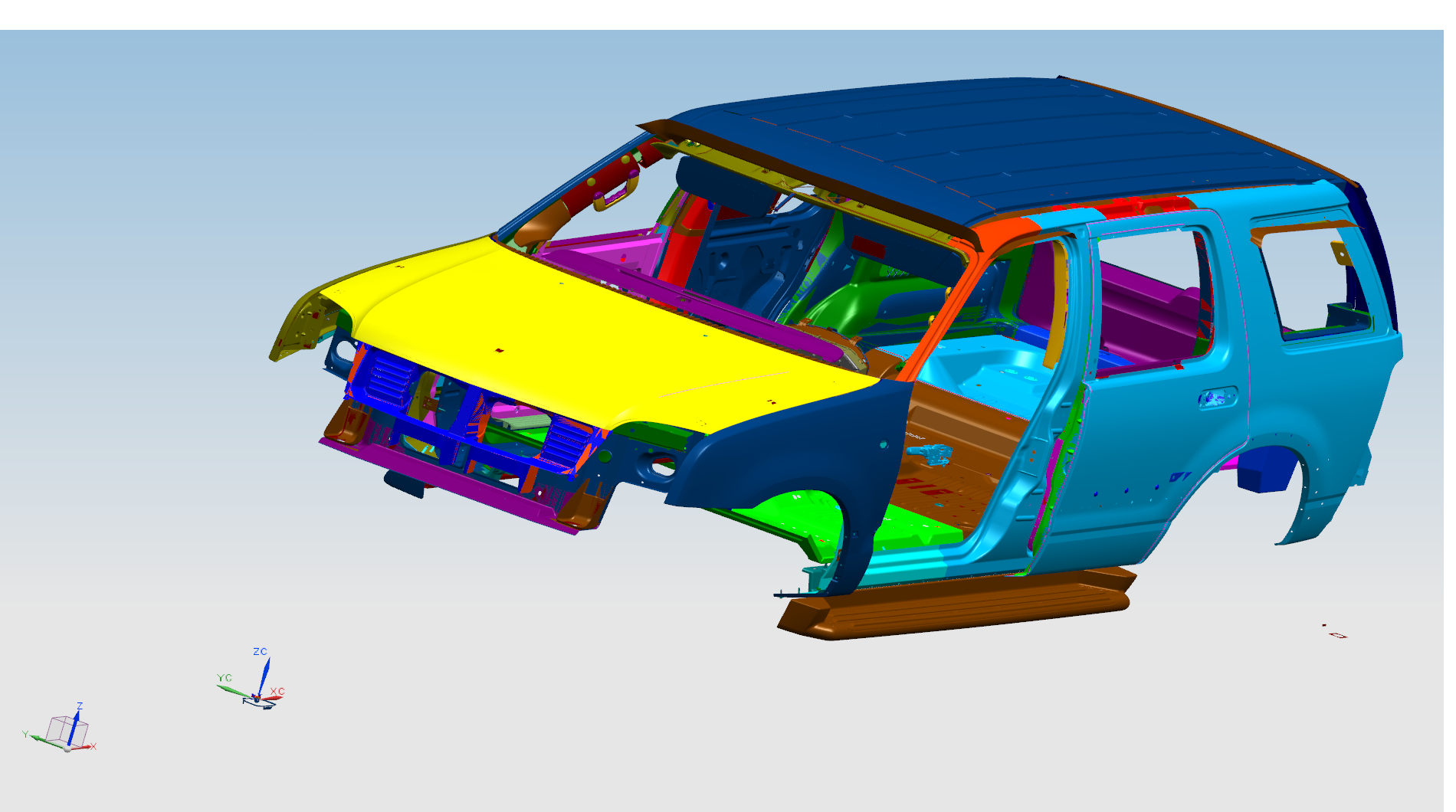

7	NX8_suvShaded	738.79	10	11520	15.59	02/13/19 13:56:49
8	NX8_suvShadedWithEdge	503.37	20	7920	15.73	02/13/19 13:57:06

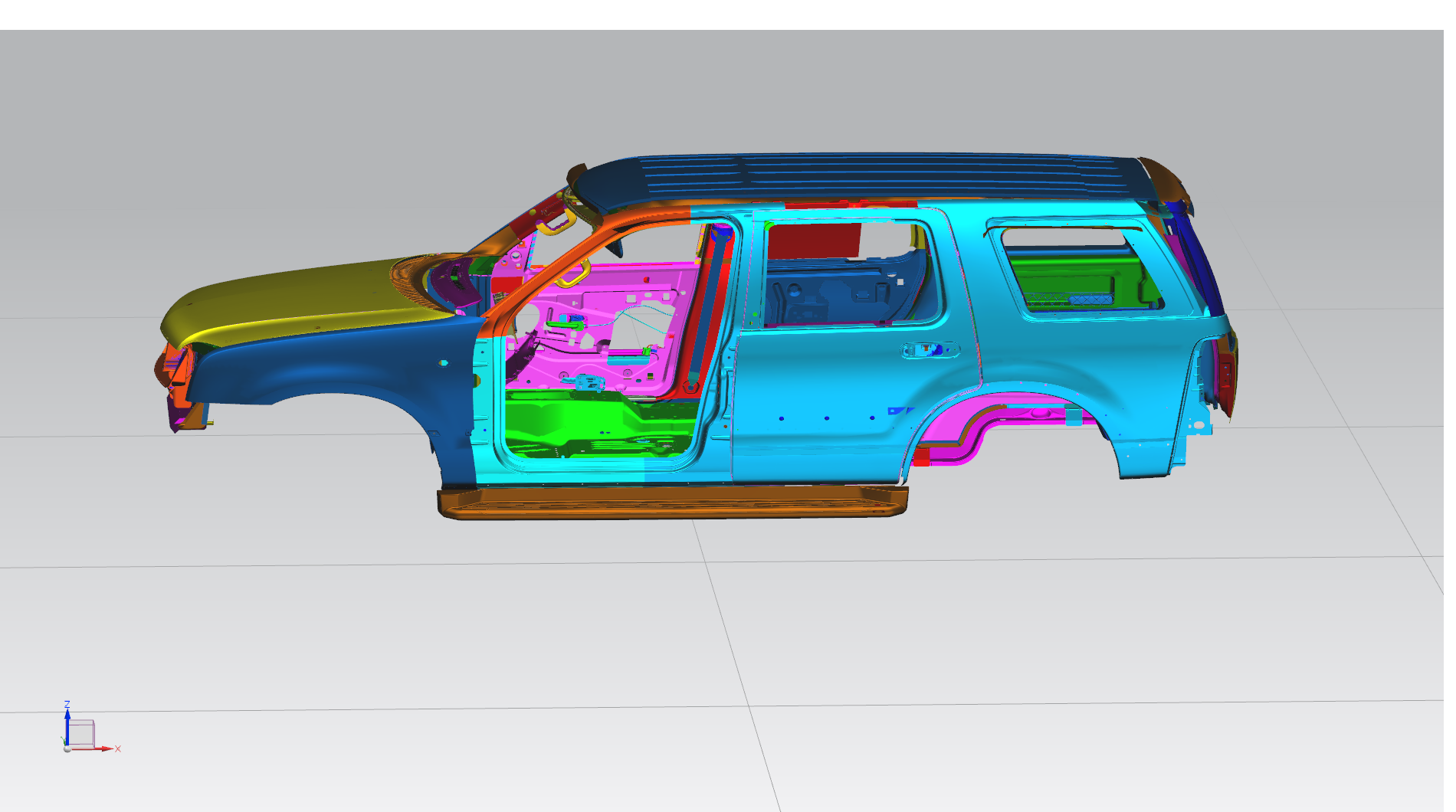

9	NX8_suvStudio2	441.37	5	7200	16.31	02/13/19 13:57:25
10	NX8_suvWireframe	878.86	7.5	13320	15.16	02/13/19 13:57:43

Screen Grabs Folder
Text Log File
XML Result File

sw-04

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	SW2012_shaded	1397.09	12	21240	15.2	02/13/19 13:57:59

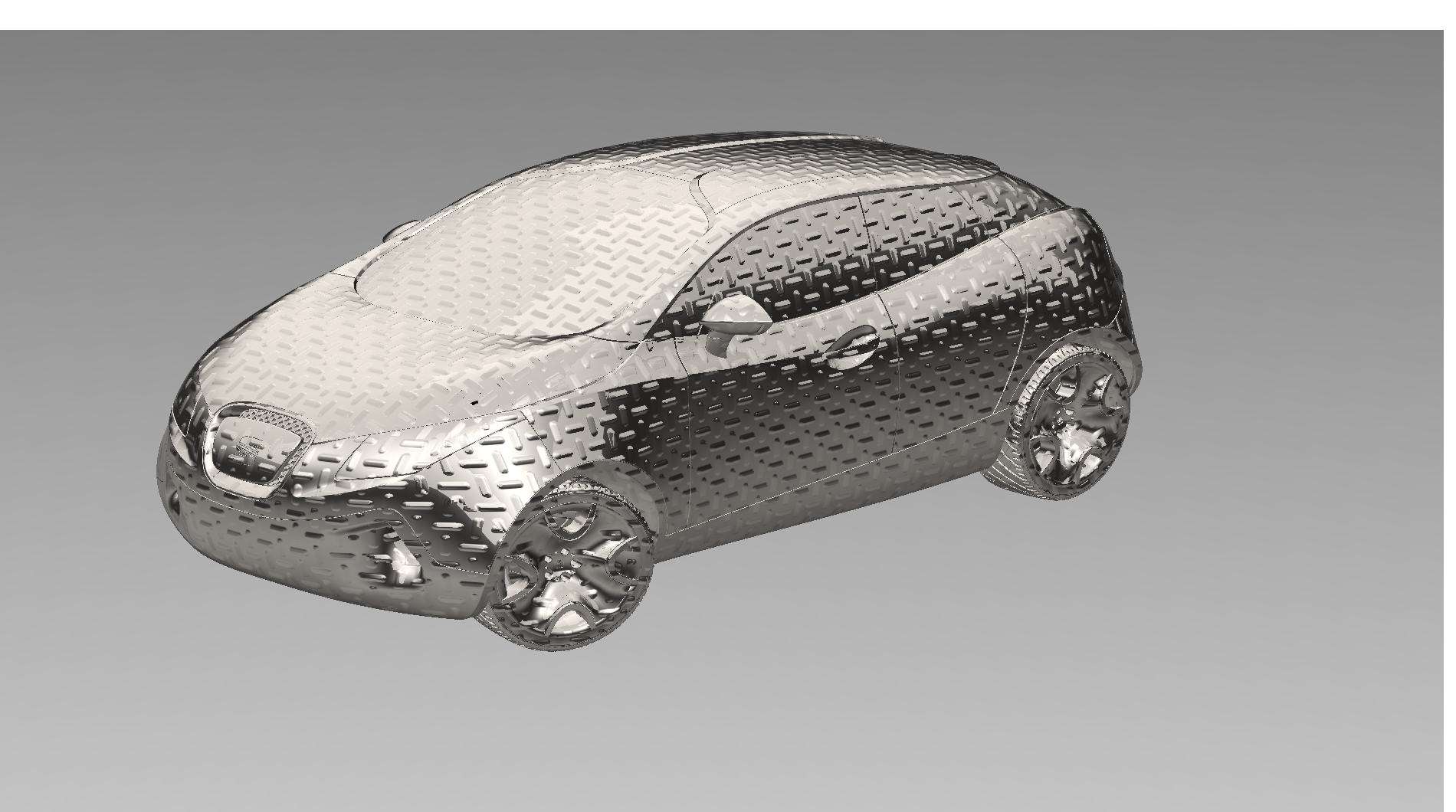

2	SW2012_plax	1181.49	8	18000	15.23	02/13/19 13:58:16
3	SW2012_ssao	379.25	10	5760	15.19	02/13/19 13:58:32
4	SW2012_edges	481.93	15	7560	15.69	02/13/19 13:58:49
5	SW2012_wireframe	40	8	720	18	02/13/19 13:59:08

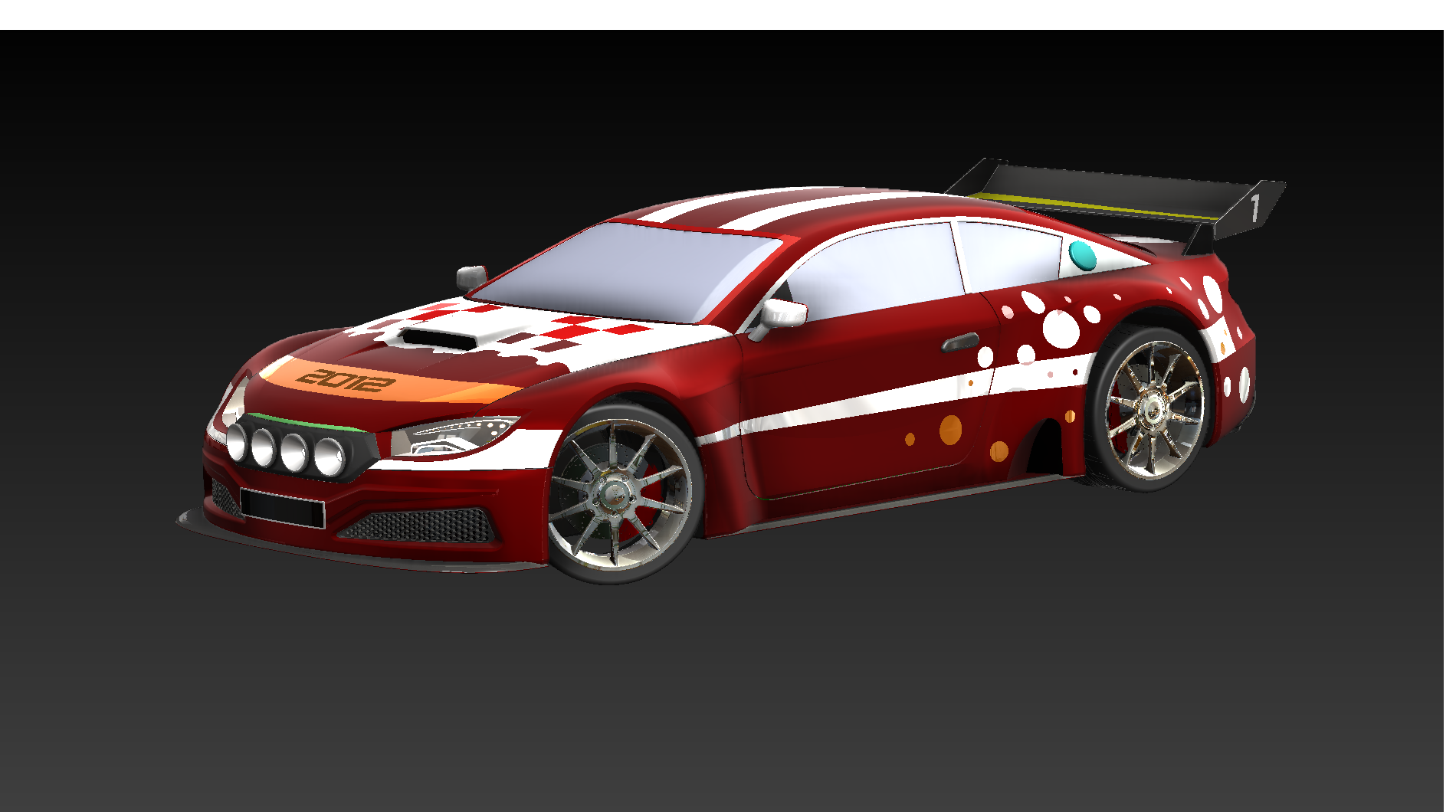

6	SW2012_rallyCar_AO	42.39	10	720	16.98	02/13/19 13:59:26

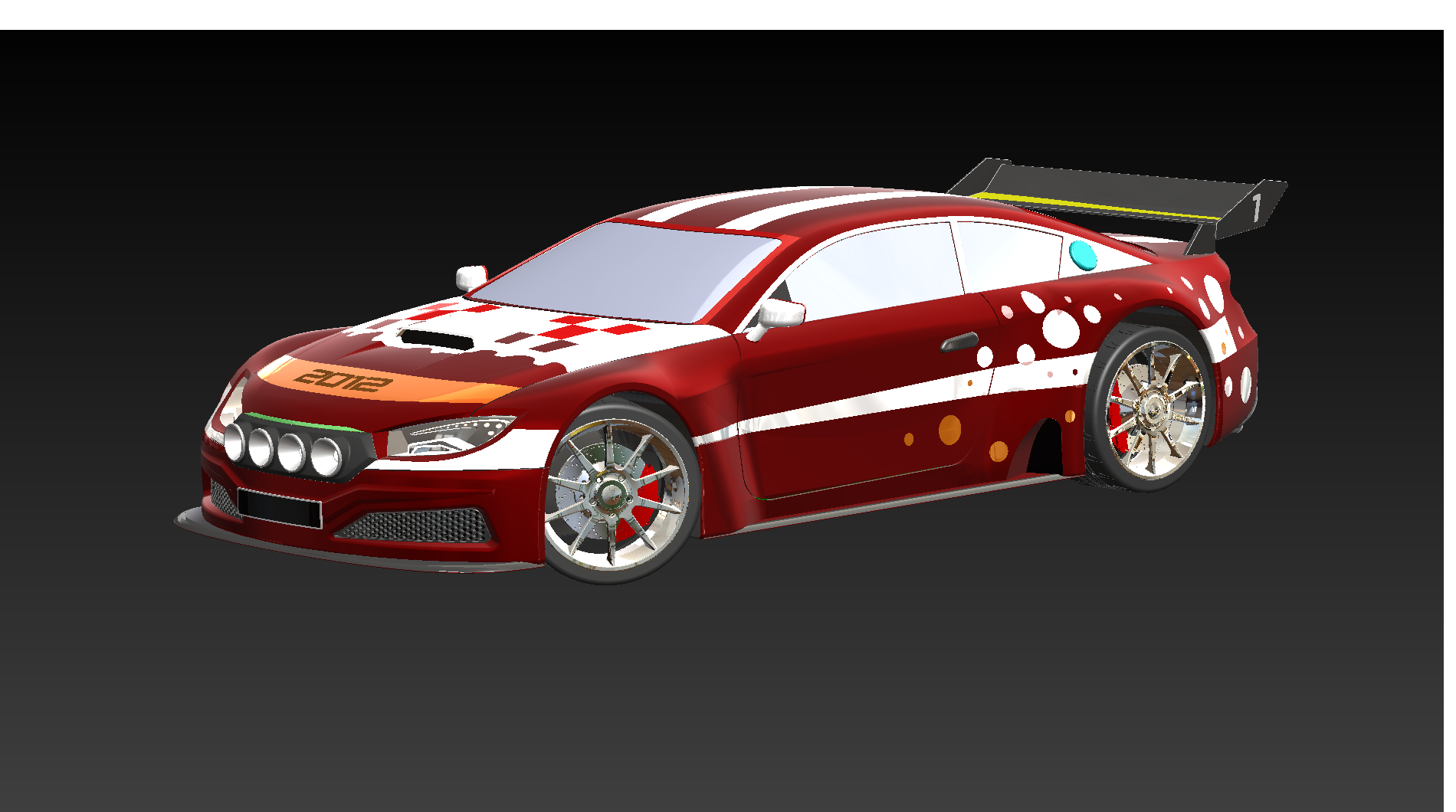

7	SW2012_rallyCar_shaded	48.61	12	1080	22.22	02/13/19 13:59:49
8	SW2012_rallyCar_ShadedEdges	39.25	15	720	18.34	02/13/19 14:00:08

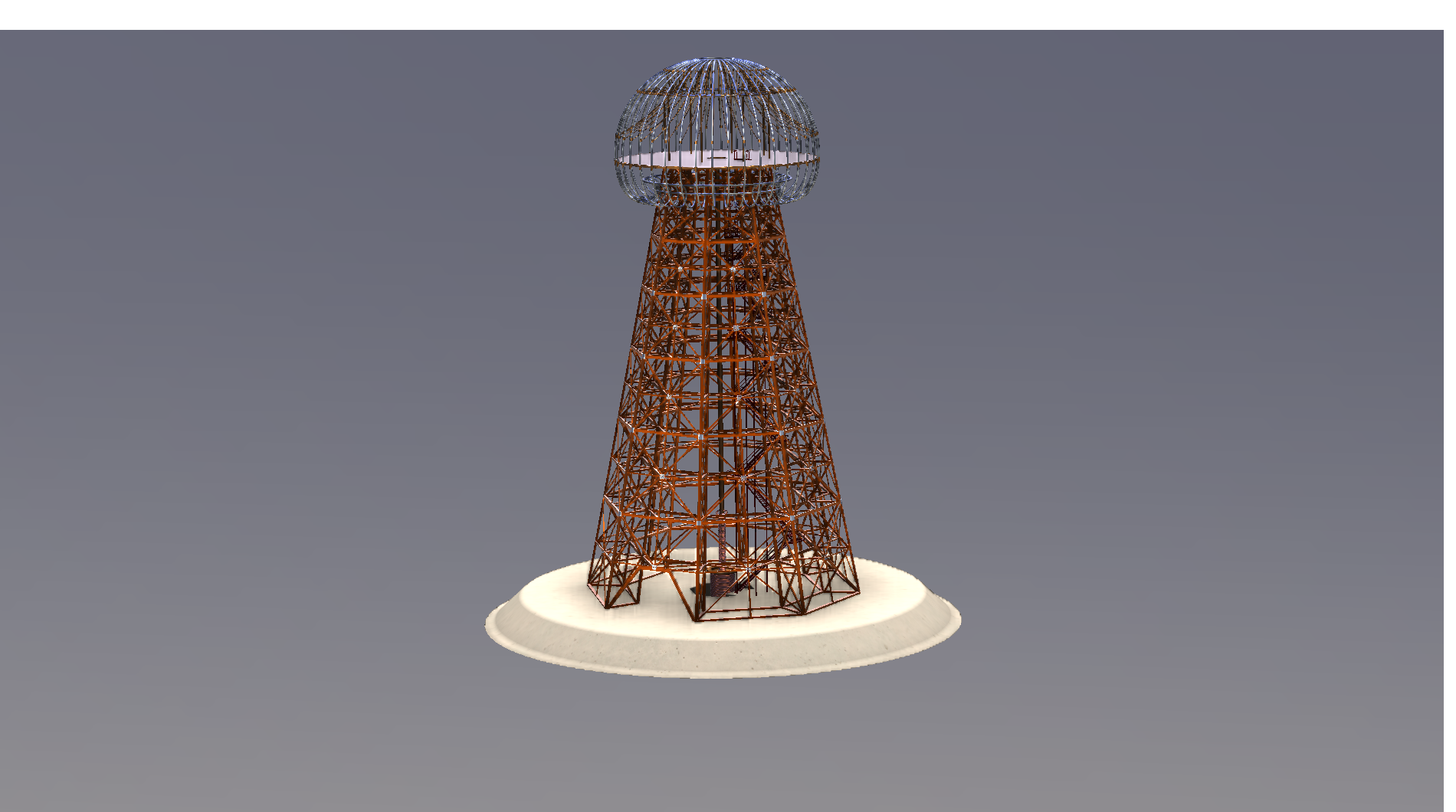

9	SW2012_teslaTower_AO	498.81	10	7560	15.16	02/13/19 14:00:23
10	SW2012_teslaTower_shaded	677.61	0	10440	15.41	02/13/19 14:00:39

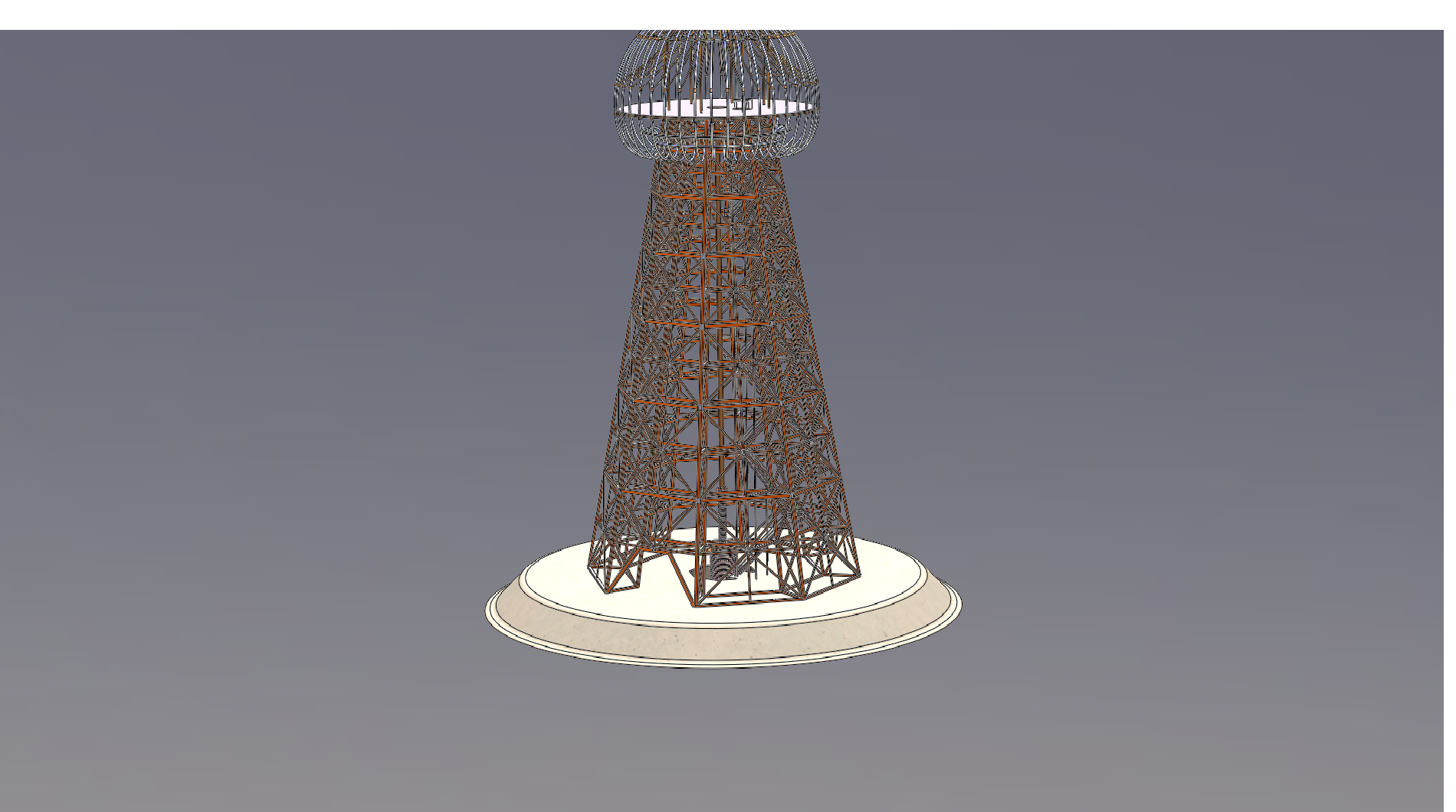

11	SW2012_teslaTower_ShadedEdges	645.29	0	9720	15.06	02/13/19 14:00:55

Screen Grabs Folder
Text Log File
XML Result File
