| CPU2006 license: | 9017 | Test date: | Aug-2017 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Aug-2017 |
| Tested by: | Lenovo Global Technology | Software Availability: | Nov-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Silver 4116 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 16.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 384 GB (12 x 32 GB 2Rx4 PC4-2666V-R, running at 2400 MHz) |
| Disk Subsystem: | 1 x 800 GB SATA SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP2 (x86_64) Kernel 4.4.21-69-default |
| Compiler: | C/C++: Version 17.0.0.098 of Intel C/C++ Compiler for Linux |
| Auto Parallel: | No |
| File System: | btrfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

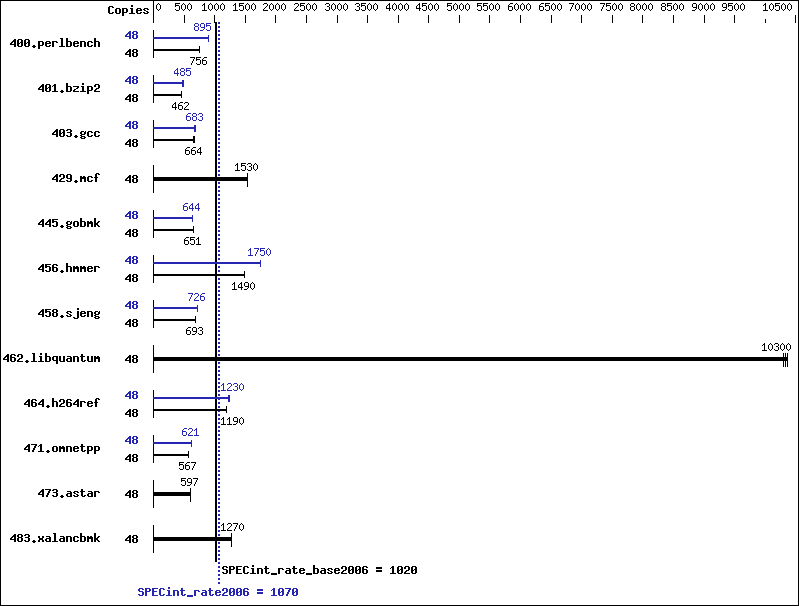

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 48 | 617 | 760 | 620 | 756 | 620 | 756 | 48 | 525 | 893 | 524 | 895 | 522 | 899 |
| 401.bzip2 | 48 | 1001 | 463 | 1014 | 457 | 1002 | 462 | 48 | 955 | 485 | 950 | 488 | 963 | 481 |
| 403.gcc | 48 | 584 | 661 | 582 | 664 | 582 | 664 | 48 | 566 | 683 | 572 | 675 | 559 | 691 |
| 429.mcf | 48 | 286 | 1530 | 285 | 1530 | 286 | 1530 | 48 | 286 | 1530 | 285 | 1530 | 286 | 1530 |
| 445.gobmk | 48 | 773 | 651 | 774 | 650 | 773 | 651 | 48 | 782 | 644 | 782 | 644 | 783 | 643 |
| 456.hmmer | 48 | 301 | 1490 | 300 | 1490 | 301 | 1490 | 48 | 256 | 1750 | 256 | 1750 | 256 | 1750 |
| 458.sjeng | 48 | 838 | 693 | 838 | 693 | 838 | 693 | 48 | 800 | 726 | 800 | 726 | 800 | 726 |
| 462.libquantum | 48 | 96.0 | 10400 | 96.2 | 10300 | 96.6 | 10300 | 48 | 96.0 | 10400 | 96.2 | 10300 | 96.6 | 10300 |
| 464.h264ref | 48 | 891 | 1190 | 886 | 1200 | 889 | 1190 | 48 | 864 | 1230 | 869 | 1220 | 857 | 1240 |
| 471.omnetpp | 48 | 529 | 567 | 529 | 567 | 528 | 568 | 48 | 483 | 621 | 483 | 621 | 483 | 621 |
| 473.astar | 48 | 564 | 597 | 564 | 597 | 563 | 598 | 48 | 564 | 597 | 564 | 597 | 563 | 598 |
| 483.xalancbmk | 48 | 261 | 1270 | 261 | 1270 | 261 | 1270 | 48 | 261 | 1270 | 261 | 1270 | 261 | 1270 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Choose Operating Mode set to Maximum Performance DCU Streamer Prefetcher set to Disable SNC set to Enable Per Core P-state set to Disable UPI Prefetcher set to Disable Stale AtoS set to Enable LLC dead line alloc set to Disable Sysinfo program /home/cpu2006-1.2-ic17.0/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on ST550 Wed Aug 2 20:46:25 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Silver 4116 CPU @ 2.10GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 16896 KB From /proc/meminfo MemTotal: 395882964 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 2 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP2" VERSION_ID="12.2" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp2" uname -a: Linux ST550 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016 (9464f67) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 2 20:44 SPEC is set to: /home/cpu2006-1.2-ic17.0 Filesystem Type Size Used Avail Use% Mounted on /dev/sdb2 btrfs 744G 88G 655G 12% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Lenovo -[O0E105R-1.00]- 04/27/2017 Memory: 12x Hynix HMA84GR7AFR4N-VK 32 GB 2 rank 2666 MHz, configured at 2400 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0/libs/32:/home/cpu2006-1.2-ic17.0/libs/64:/home/cpu2006-1.2-ic17.0/sh10.2" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages enabled by default Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -qopt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -qopt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-ra-region-strategy=block -qopt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
