SPEC® CFP2006 Result

Microsoft Corporation (Test Sponsor: Intel Corporation)

Surface Pro 3

SPECfp®_rate2006 = 64.6

SPECfp_rate_base2006 = 63.1

CPU2006 license:	13	Test date:	Sep-2014
Test sponsor:	Intel Corporation	Hardware Availability:	Jun-2014
Tested by:	Intel Corporation	Software Availability:	Oct-2013

Hardware
CPU Name:	Intel Core i5-4300U
CPU Characteristics:	Intel Turbo Boost Technology up to 2.90 GHz
CPU MHz:	1900
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	3 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (4 x 1 GB 2Rx32 PC3L-12800U-11)
Disk Subsystem:	128 GB SSD
Other Hardware:	None

Software
Operating System:	Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600
Compiler:	C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

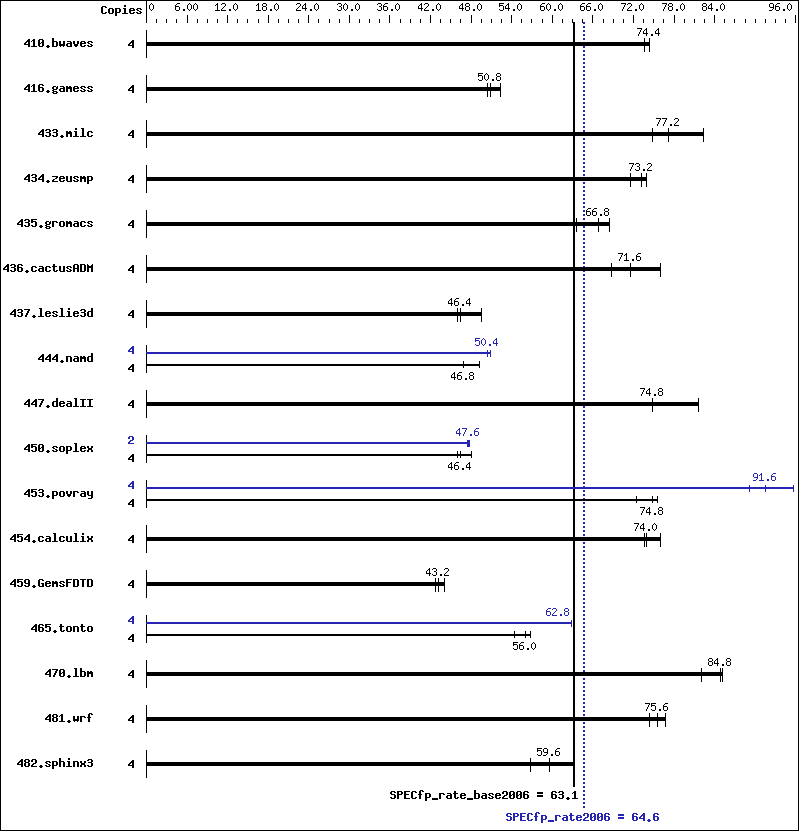

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	729	74.4	739	73.6	732	74.4	4	729	74.4	739	73.6	732	74.4
416.gamess	4	1552	50.4	1546	50.8	1489	52.4	4	1552	50.4	1546	50.8	1489	52.4
433.milc	4	445	82.4	492	74.8	476	77.2	4	445	82.4	492	74.8	476	77.2
434.zeusmp	4	498	73.2	508	71.6	492	74.0	4	498	73.2	508	71.6	492	74.0
435.gromacs	4	427	66.8	449	63.6	417	68.4	4	427	66.8	449	63.6	417	68.4
436.cactusADM	4	696	68.8	667	71.6	631	76.0	4	696	68.8	667	71.6	631	76.0
437.leslie3d	4	810	46.4	817	46.0	760	49.6	4	810	46.4	817	46.0	760	49.6
444.namd	4	685	46.8	687	46.8	650	49.2	4	636	50.4	634	50.8	636	50.4
447.dealII	4	611	74.8	613	74.8	560	81.6	4	611	74.8	613	74.8	560	81.6
450.soplex	4	718	46.4	728	46.0	692	48.0	2	350	47.6	348	47.8	352	47.4
453.povray	4	294	72.4	281	75.6	285	74.8	4	239	89.2	233	91.6	223	95.6
454.calculix	4	448	73.6	446	74.0	435	76.0	4	448	73.6	446	74.0	435	76.0
459.GemsFDTD	4	989	42.8	985	43.2	967	44.0	4	989	42.8	985	43.2	967	44.0
465.tonto	4	723	54.4	705	56.0	693	56.8	4	625	62.8	626	62.8	627	62.8
470.lbm	4	669	82.0	647	84.8	644	85.2	4	669	82.0	647	84.8	644	85.2
481.wrf	4	601	74.4	592	75.6	581	76.8	4	601	74.4	592	75.6	581	76.8
482.sphinx3	4	1371	56.8	1304	59.6	1235	63.2	4	1371	56.8	1304	59.6	1235	63.2

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\Users\peca\Desktop\SPEC14.0\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on ea_i5 Thu Sep 11 14:30:42 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: Microsoft Corporation
 System Model  : Surface Pro 3
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 69 Stepping 1 GenuineIntel ~1900 Mhz
 BIOS Version  : American Megatrends Inc. 3.10.0250, 8/28/2014
 Total Physical Memory: 4,001 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 2501
 Name          : Intel(R) Core(TM) i5-4300U CPU @ 1.90GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

Test ran with power supply connected
Power Supply: 12V, 2.58A

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 /names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
