| CPU2006 license: | 3 | Test date: | Feb-2014 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2014 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4890 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 60 cores, 4 chips, 15 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 37.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 2 x 500 GB SAS, 10 K RPM, RAID 1 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP3 Kernel 3.0.76-0.11-default |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

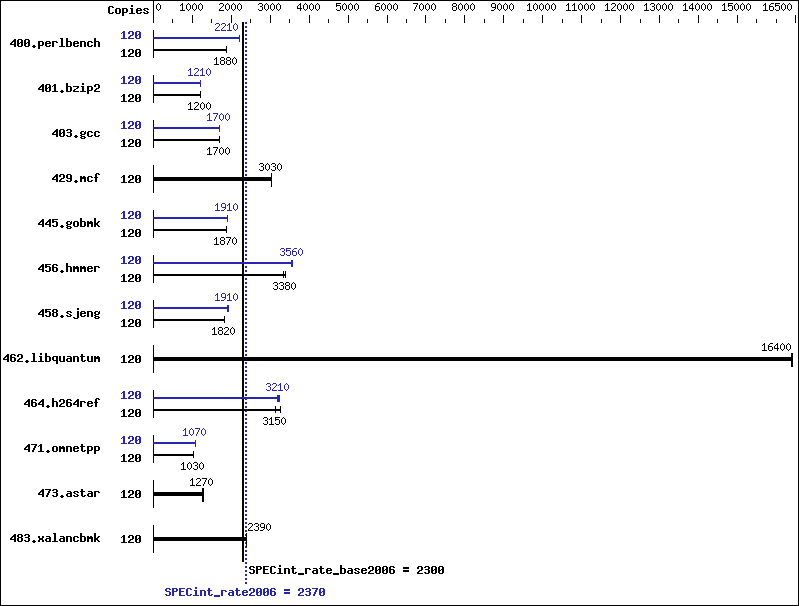

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 120 | 625 | 1880 | 622 | 1890 | 623 | 1880 | 120 | 530 | 2210 | 528 | 2220 | 530 | 2210 |
| 401.bzip2 | 120 | 968 | 1200 | 968 | 1200 | 969 | 1190 | 120 | 956 | 1210 | 956 | 1210 | 956 | 1210 |
| 403.gcc | 120 | 569 | 1700 | 567 | 1700 | 568 | 1700 | 120 | 567 | 1700 | 570 | 1700 | 571 | 1690 |
| 429.mcf | 120 | 361 | 3040 | 361 | 3030 | 362 | 3030 | 120 | 361 | 3040 | 361 | 3030 | 362 | 3030 |
| 445.gobmk | 120 | 671 | 1870 | 673 | 1870 | 671 | 1880 | 120 | 658 | 1910 | 658 | 1910 | 660 | 1910 |
| 456.hmmer | 120 | 331 | 3380 | 334 | 3350 | 330 | 3390 | 120 | 314 | 3570 | 315 | 3560 | 315 | 3550 |
| 458.sjeng | 120 | 797 | 1820 | 798 | 1820 | 795 | 1830 | 120 | 761 | 1910 | 758 | 1910 | 757 | 1920 |
| 462.libquantum | 120 | 151 | 16400 | 152 | 16400 | 151 | 16400 | 120 | 151 | 16400 | 152 | 16400 | 151 | 16400 |
| 464.h264ref | 120 | 814 | 3260 | 844 | 3150 | 846 | 3140 | 120 | 836 | 3180 | 819 | 3240 | 826 | 3210 |
| 471.omnetpp | 120 | 727 | 1030 | 728 | 1030 | 727 | 1030 | 120 | 699 | 1070 | 698 | 1070 | 697 | 1080 |
| 473.astar | 120 | 665 | 1270 | 660 | 1280 | 663 | 1270 | 120 | 665 | 1270 | 660 | 1280 | 663 | 1270 |
| 483.xalancbmk | 120 | 346 | 2390 | 347 | 2390 | 346 | 2390 | 120 | 346 | 2390 | 347 | 2390 | 346 | 2390 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Platform Notes
BIOS Configuration: HP Power Profile was set to Maximum Performance Thermal Configuration was set to Maximum Cooling Collaborative Power Control was set to Disabled Memory Double Refresh Rate was set to Disabled Processor Power and Utilization Monitoring was set to Disabled Sysinfo program /home/cpu2006/config/sysinfo.rev6874.hp $Rev: 6874 $ $Date:: 2013-11-20 #$ e05b96ddac6c3d74bfe176502a0a2391 running on dl580-rwen Thu Feb 13 15:13:00 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-4890 v2 @ 2.80GHz 4 "physical id"s (chips) 120 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 15 siblings : 30 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 cache size : 38400 KB From /proc/meminfo MemTotal: 1058730268 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux dl580-rwen 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 13 15:05 last=S SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sdb3 ext3 275G 8.7G 265G 4% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS HP P79 02/03/2014 Memory: 64x HP 712383-081 16 GB 1866 MHz, configured at 1333 MHz 32x UNKNOWN NOT AVAILABLE (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 1 TB and the dmidecode description should have one line reading as: 64x HP 712383-081 16 GB 1866 MHz, configured at 1333 MHz
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
