CPU2006 license: | 001176 | Test date: | Oct-2013 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Oct-2013 |
Tested by: | Supermicro | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2697 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
CPU MHz: | 2700 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 x 1000 GB SATA III, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4, Kernel 2.6.32-358.18.1.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

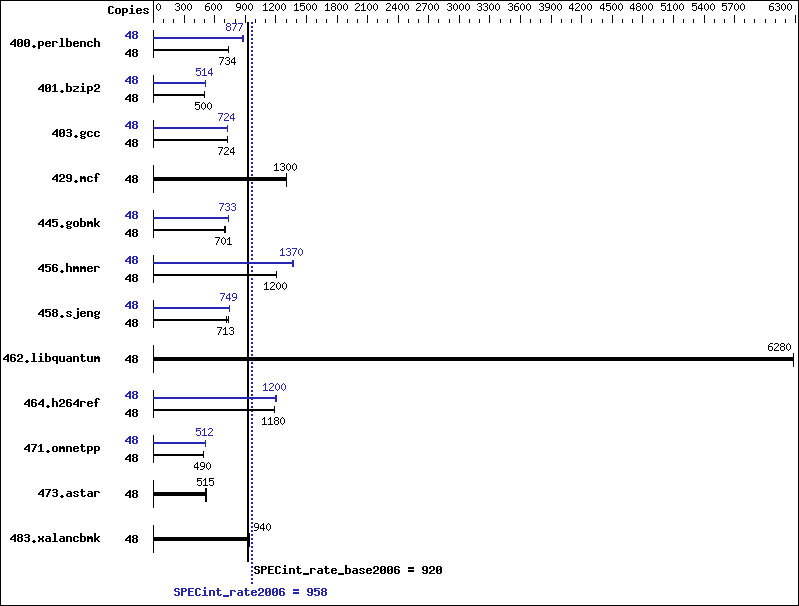

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 48 | 639 | 734 | 640 | 732 | 638 | 735 | 48 | 535 | 877 | 533 | 880 | 536 | 875 |
401.bzip2 | 48 | 926 | 500 | 927 | 499 | 925 | 501 | 48 | 904 | 513 | 901 | 514 | 900 | 515 |
403.gcc | 48 | 533 | 725 | 534 | 724 | 534 | 724 | 48 | 534 | 724 | 535 | 722 | 534 | 724 |
429.mcf | 48 | 336 | 1300 | 336 | 1300 | 336 | 1300 | 48 | 336 | 1300 | 336 | 1300 | 336 | 1300 |
445.gobmk | 48 | 714 | 706 | 718 | 701 | 718 | 701 | 48 | 687 | 733 | 683 | 738 | 688 | 732 |
456.hmmer | 48 | 372 | 1200 | 372 | 1200 | 372 | 1200 | 48 | 328 | 1370 | 327 | 1370 | 328 | 1370 |
458.sjeng | 48 | 815 | 713 | 814 | 713 | 793 | 732 | 48 | 776 | 748 | 775 | 750 | 776 | 749 |
462.libquantum | 48 | 159 | 6270 | 158 | 6280 | 158 | 6280 | 48 | 159 | 6270 | 158 | 6280 | 158 | 6280 |
464.h264ref | 48 | 899 | 1180 | 898 | 1180 | 897 | 1180 | 48 | 881 | 1210 | 885 | 1200 | 889 | 1190 |
471.omnetpp | 48 | 616 | 487 | 612 | 490 | 612 | 490 | 48 | 585 | 512 | 586 | 512 | 586 | 512 |
473.astar | 48 | 656 | 514 | 653 | 516 | 654 | 515 | 48 | 656 | 514 | 653 | 516 | 654 | 515 |
483.xalancbmk | 48 | 352 | 940 | 352 | 940 | 352 | 941 | 48 | 352 | 940 | 352 | 940 | 352 | 941 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006/libs/32:/root/cpu2006/libs/64:/root/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xAVX -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
