| CPU2006 license: | 11 | Test date: | Aug-2012 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2012 |
| Tested by: | IBM Corporation | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2418L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.10 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz) |
| Disk Subsystem: | 1 x 500 GB SAS, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

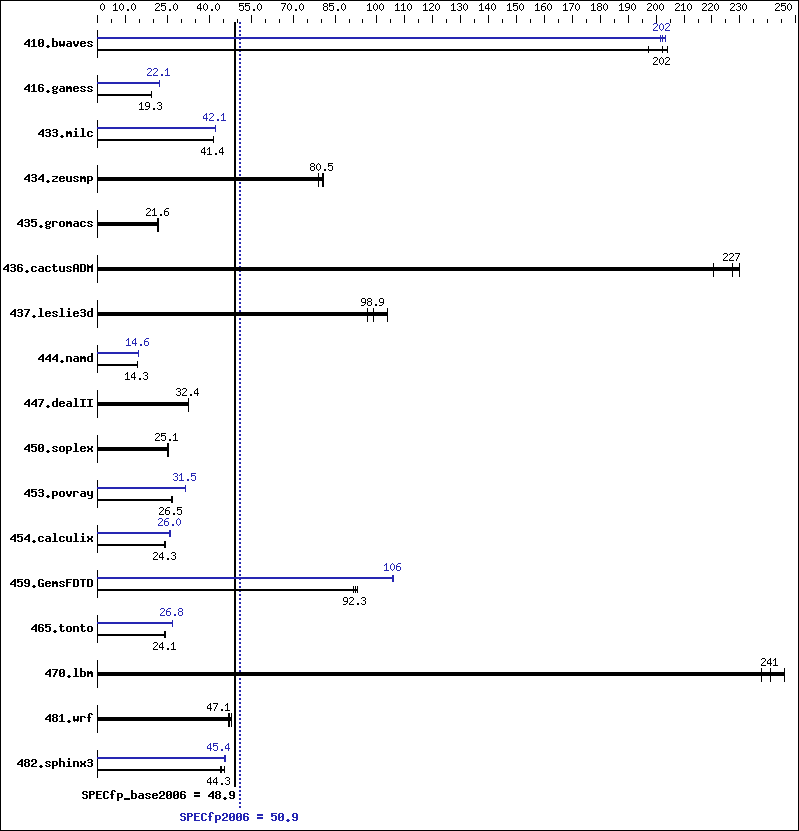

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 68.8 | 197 | 66.6 | 204 | 67.2 | 202 | 67.4 | 201 | 67.2 | 202 | 66.8 | 203 |
| 416.gamess | 1019 | 19.2 | 1009 | 19.4 | 1012 | 19.3 | 890 | 22.0 | 886 | 22.1 | 886 | 22.1 |
| 433.milc | 222 | 41.4 | 222 | 41.4 | 222 | 41.4 | 217 | 42.2 | 218 | 42.1 | 218 | 42.1 |
| 434.zeusmp | 113 | 80.5 | 112 | 80.9 | 115 | 79.2 | 113 | 80.5 | 112 | 80.9 | 115 | 79.2 |
| 435.gromacs | 333 | 21.5 | 330 | 21.6 | 331 | 21.6 | 333 | 21.5 | 330 | 21.6 | 331 | 21.6 |
| 436.cactusADM | 52.0 | 230 | 54.2 | 221 | 52.6 | 227 | 52.0 | 230 | 54.2 | 221 | 52.6 | 227 |
| 437.leslie3d | 95.1 | 98.9 | 90.7 | 104 | 97.3 | 96.6 | 95.1 | 98.9 | 90.7 | 104 | 97.3 | 96.6 |
| 444.namd | 559 | 14.4 | 559 | 14.3 | 559 | 14.3 | 550 | 14.6 | 550 | 14.6 | 550 | 14.6 |
| 447.dealII | 353 | 32.4 | 354 | 32.3 | 353 | 32.4 | 353 | 32.4 | 354 | 32.3 | 353 | 32.4 |
| 450.soplex | 334 | 25.0 | 332 | 25.1 | 331 | 25.2 | 334 | 25.0 | 332 | 25.1 | 331 | 25.2 |
| 453.povray | 201 | 26.5 | 201 | 26.5 | 199 | 26.8 | 169 | 31.6 | 170 | 31.4 | 169 | 31.5 |
| 454.calculix | 340 | 24.3 | 340 | 24.3 | 344 | 24.0 | 320 | 25.8 | 317 | 26.0 | 317 | 26.0 |
| 459.GemsFDTD | 116 | 91.6 | 115 | 92.3 | 114 | 92.9 | 101 | 105 | 100 | 106 | 100 | 106 |
| 465.tonto | 408 | 24.1 | 408 | 24.1 | 409 | 24.1 | 367 | 26.8 | 367 | 26.8 | 367 | 26.8 |
| 470.lbm | 57.8 | 238 | 55.8 | 246 | 57.0 | 241 | 57.8 | 238 | 55.8 | 246 | 57.0 | 241 |
| 481.wrf | 234 | 47.8 | 239 | 46.8 | 237 | 47.1 | 234 | 47.8 | 239 | 46.8 | 237 | 47.1 |
| 482.sphinx3 | 443 | 44.0 | 440 | 44.3 | 430 | 45.4 | 429 | 45.4 | 430 | 45.4 | 427 | 45.6 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Operating Mode set to Maximum Perfomance in BIOS Sysinfo program /cpu2006.1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on kestral-pete Sun Aug 5 16:27:11 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2418L 0 @ 2.00GHz 2 "physical id"s (chips) 16 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 0 1 2 3 physical 1: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 99044260 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux kestral-pete 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 3 14:43 SPEC is set to: /cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_kestralpete-lv_root ext4 449G 6.1G 420G 2% / Additional information from dmidecode: Memory: 12x Micron 36JSF1G72PZ-1G6M1 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64" OMP_NUM_THREADS = "8" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
