CPU2006 license: | 19 | Test date: | Jun-2012 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jul-2012 |
Tested by: | Fujitsu | Software Availability: | Feb-2012 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2440 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (6 x 8 GB 2Rx4 PC3L-12800R-11, ECC, running at 1333 MHz and CL9) |
Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.293 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

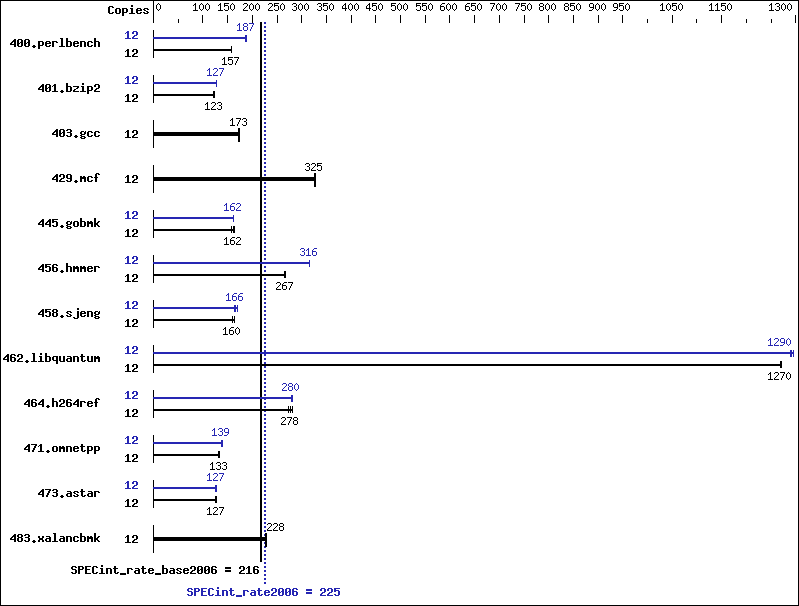

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 12 | 745 | 157 | 744 | 157 | 743 | 158 | 12 | 630 | 186 | 625 | 187 | 624 | 188 |
401.bzip2 | 12 | 945 | 123 | 957 | 121 | 935 | 124 | 12 | 915 | 127 | 915 | 127 | 912 | 127 |
403.gcc | 12 | 556 | 174 | 559 | 173 | 558 | 173 | 12 | 556 | 174 | 559 | 173 | 558 | 173 |
429.mcf | 12 | 337 | 325 | 336 | 325 | 335 | 327 | 12 | 337 | 325 | 336 | 325 | 335 | 327 |
445.gobmk | 12 | 793 | 159 | 771 | 163 | 778 | 162 | 12 | 780 | 161 | 776 | 162 | 775 | 162 |
456.hmmer | 12 | 418 | 268 | 422 | 266 | 419 | 267 | 12 | 354 | 316 | 355 | 316 | 354 | 316 |
458.sjeng | 12 | 913 | 159 | 891 | 163 | 908 | 160 | 12 | 886 | 164 | 855 | 170 | 873 | 166 |
462.libquantum | 12 | 196 | 1270 | 196 | 1270 | 196 | 1270 | 12 | 193 | 1290 | 193 | 1290 | 192 | 1300 |
464.h264ref | 12 | 946 | 281 | 954 | 278 | 973 | 273 | 12 | 950 | 280 | 941 | 282 | 954 | 278 |
471.omnetpp | 12 | 568 | 132 | 566 | 133 | 563 | 133 | 12 | 540 | 139 | 542 | 138 | 541 | 139 |
473.astar | 12 | 660 | 128 | 661 | 127 | 669 | 126 | 12 | 661 | 127 | 667 | 126 | 661 | 127 |
483.xalancbmk | 12 | 364 | 228 | 364 | 228 | 362 | 229 | 12 | 364 | 228 | 364 | 228 | 362 | 229 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64" Binaries compiled on a system with 2x E5-2650 CPU + 96 GB memory using RHEL6.2 For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
473.astar: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
