| CPU2006 license: | 001176 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2012 |
| Tested by: | Supermicro | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2650L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.30 GHz |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 1 TB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.2, Kernel 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

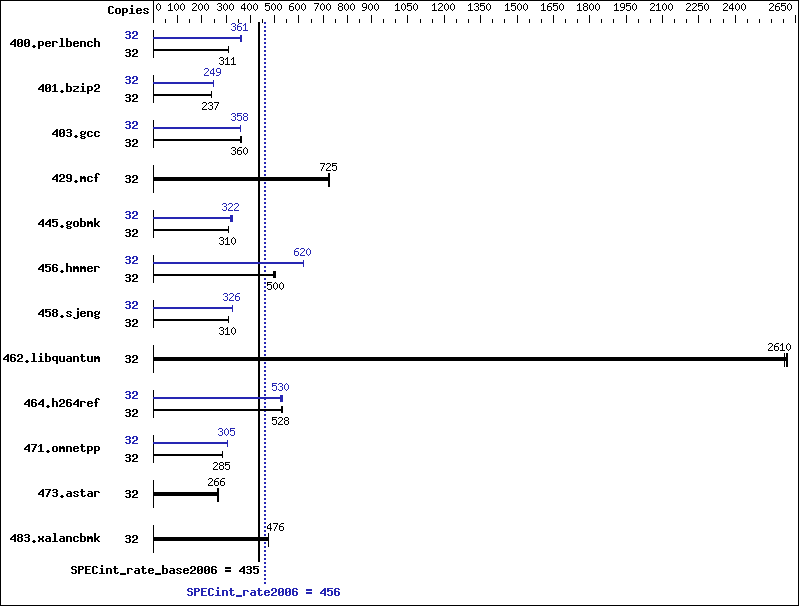

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 1007 | 311 | 1007 | 311 | 1008 | 310 | 32 | 869 | 360 | 864 | 362 | 867 | 361 |
| 401.bzip2 | 32 | 1301 | 237 | 1300 | 237 | 1299 | 238 | 32 | 1241 | 249 | 1241 | 249 | 1241 | 249 |
| 403.gcc | 32 | 713 | 361 | 716 | 360 | 715 | 360 | 32 | 721 | 357 | 719 | 358 | 720 | 358 |
| 429.mcf | 32 | 404 | 723 | 402 | 725 | 402 | 726 | 32 | 404 | 723 | 402 | 725 | 402 | 726 |
| 445.gobmk | 32 | 1082 | 310 | 1084 | 310 | 1081 | 311 | 32 | 1042 | 322 | 1051 | 320 | 1028 | 327 |
| 456.hmmer | 32 | 601 | 497 | 593 | 504 | 597 | 500 | 32 | 482 | 620 | 482 | 619 | 481 | 620 |
| 458.sjeng | 32 | 1249 | 310 | 1251 | 310 | 1251 | 309 | 32 | 1187 | 326 | 1186 | 327 | 1188 | 326 |
| 462.libquantum | 32 | 254 | 2610 | 253 | 2620 | 255 | 2600 | 32 | 254 | 2610 | 253 | 2620 | 255 | 2600 |
| 464.h264ref | 32 | 1333 | 531 | 1345 | 526 | 1342 | 528 | 32 | 1337 | 530 | 1335 | 530 | 1352 | 524 |
| 471.omnetpp | 32 | 702 | 285 | 700 | 286 | 702 | 285 | 32 | 656 | 305 | 655 | 305 | 655 | 305 |
| 473.astar | 32 | 843 | 267 | 845 | 266 | 845 | 266 | 32 | 843 | 267 | 845 | 266 | 845 | 266 |
| 483.xalancbmk | 32 | 465 | 475 | 464 | 476 | 464 | 476 | 32 | 465 | 475 | 464 | 476 | 464 | 476 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
