CPU2006 license: | 49 | Test date: | Mar-2012 |
---|---|---|---|
Test sponsor: | Advanced Micro Devices | Hardware Availability: | Mar-2012 |
Tested by: | Advanced Micro Devices | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 3250 HE |
CPU Characteristics: | AMD Turbo CORE technology up to 3.50 GHz |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 128 KB I on chip per chip, 64 KB shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (8 x 8 GB 2Rx4 PC3-12800U-11, running at 1333MHz) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.5.1 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

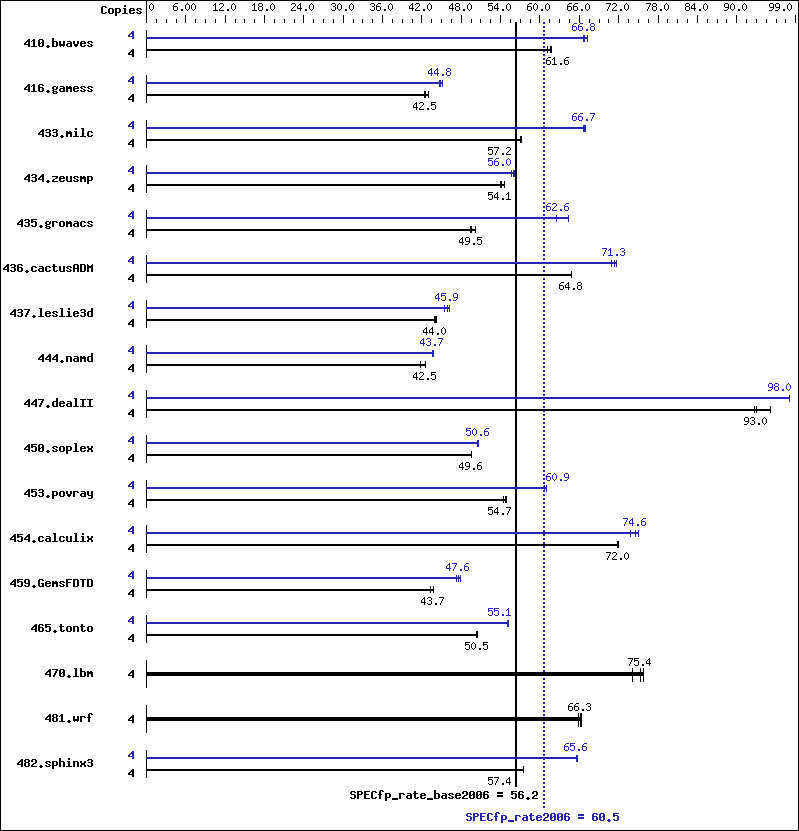

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 883 | 61.6 | 880 | 61.8 | 888 | 61.2 | 4 | 809 | 67.2 | 814 | 66.8 | 815 | 66.7 |
416.gamess | 4 | 1845 | 42.5 | 1844 | 42.5 | 1823 | 43.0 | 4 | 1747 | 44.8 | 1753 | 44.7 | 1737 | 45.1 |
433.milc | 4 | 642 | 57.2 | 644 | 57.0 | 642 | 57.2 | 4 | 550 | 66.7 | 551 | 66.6 | 549 | 66.9 |
434.zeusmp | 4 | 675 | 53.9 | 667 | 54.6 | 672 | 54.1 | 4 | 649 | 56.0 | 650 | 56.0 | 653 | 55.7 |
435.gromacs | 4 | 578 | 49.4 | 568 | 50.2 | 577 | 49.5 | 4 | 457 | 62.5 | 444 | 64.3 | 456 | 62.6 |
436.cactusADM | 4 | 738 | 64.7 | 737 | 64.9 | 738 | 64.8 | 4 | 671 | 71.3 | 667 | 71.7 | 674 | 70.9 |
437.leslie3d | 4 | 850 | 44.2 | 854 | 44.0 | 855 | 44.0 | 4 | 826 | 45.5 | 819 | 45.9 | 814 | 46.2 |
444.namd | 4 | 754 | 42.5 | 754 | 42.5 | 768 | 41.8 | 4 | 736 | 43.6 | 732 | 43.8 | 734 | 43.7 |
447.dealII | 4 | 492 | 93.0 | 493 | 92.7 | 481 | 95.1 | 4 | 467 | 98.1 | 467 | 98.0 | 467 | 98.0 |
450.soplex | 4 | 673 | 49.6 | 673 | 49.6 | 672 | 49.6 | 4 | 659 | 50.6 | 661 | 50.5 | 660 | 50.6 |
453.povray | 4 | 389 | 54.7 | 391 | 54.4 | 388 | 54.9 | 4 | 349 | 60.9 | 349 | 60.9 | 351 | 60.7 |
454.calculix | 4 | 460 | 71.8 | 458 | 72.0 | 458 | 72.0 | 4 | 447 | 73.8 | 443 | 74.6 | 440 | 75.0 |
459.GemsFDTD | 4 | 980 | 43.3 | 971 | 43.7 | 969 | 43.8 | 4 | 897 | 47.3 | 891 | 47.6 | 887 | 47.8 |
465.tonto | 4 | 782 | 50.4 | 780 | 50.5 | 780 | 50.5 | 4 | 714 | 55.1 | 715 | 55.0 | 714 | 55.2 |
470.lbm | 4 | 729 | 75.4 | 742 | 74.1 | 725 | 75.8 | 4 | 729 | 75.4 | 742 | 74.1 | 725 | 75.8 |
481.wrf | 4 | 679 | 65.8 | 674 | 66.3 | 674 | 66.3 | 4 | 679 | 65.8 | 674 | 66.3 | 674 | 66.3 |
482.sphinx3 | 4 | 1357 | 57.4 | 1358 | 57.4 | 1357 | 57.5 | 4 | 1188 | 65.6 | 1187 | 65.7 | 1190 | 65.5 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=3584 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-rate-libs-revC/32:/root/work/cpu2006v1.2/amd1104-rate-libs-revC/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6274 chips + 64GB Memory using RHEL 6.1
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso |
-march=bdver1 -Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET |
-march=bdver1 -Ofast -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
435.gromacs: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m -CG:local_sched_alg=2 -GRA:unspill=ON -CG:load_exe=3 -LNO:simd=3 |
436.cactusADM: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP -CG:locs_shallow_depth=1 -CG:load_exe=0 -CG:dsched=on -WOPT:sib=on |
454.calculix: | -march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -CG:dsched=on -HP:bdt=2m:heap=2m |
481.wrf: | basepeak = yes |
