| CPU2006 license: | 9019 | Test date: | Feb-2012 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Mar-2011 |
| Tested by: | Cisco Systems | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5690 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3L-10600R-9, ECC) |
| Disk Subsystem: | 600 GB SAS 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

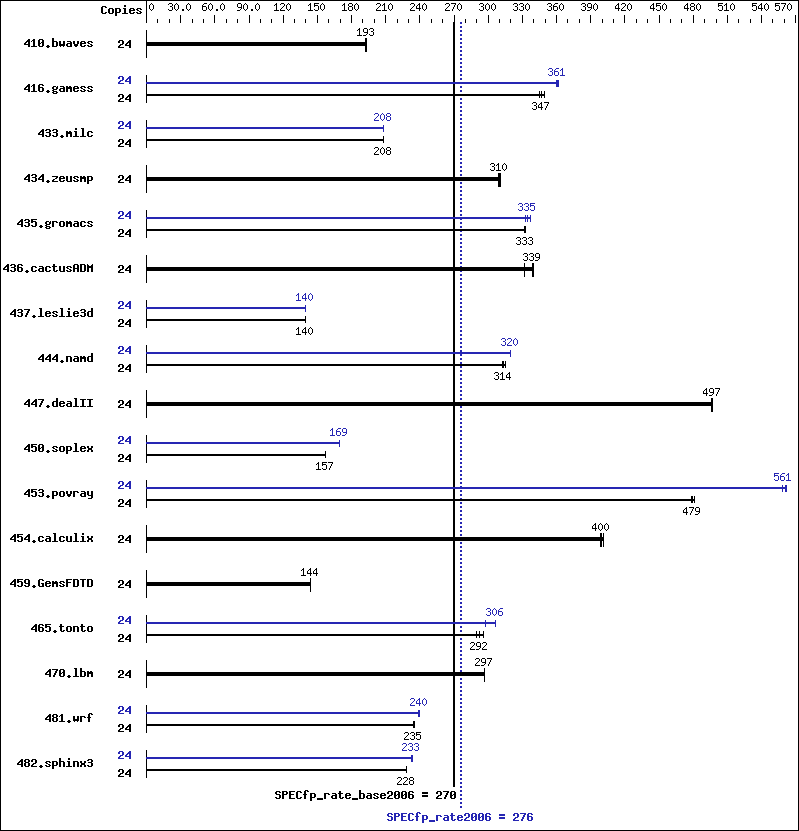

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 24 | 1690 | 193 | 1691 | 193 | 1693 | 193 | 24 | 1690 | 193 | 1691 | 193 | 1693 | 193 |
| 416.gamess | 24 | 1346 | 349 | 1364 | 345 | 1355 | 347 | 24 | 1300 | 361 | 1301 | 361 | 1304 | 360 |
| 433.milc | 24 | 1057 | 209 | 1057 | 208 | 1057 | 208 | 24 | 1058 | 208 | 1058 | 208 | 1059 | 208 |
| 434.zeusmp | 24 | 703 | 311 | 705 | 310 | 707 | 309 | 24 | 703 | 311 | 705 | 310 | 707 | 309 |
| 435.gromacs | 24 | 515 | 333 | 515 | 333 | 516 | 332 | 24 | 512 | 335 | 515 | 333 | 508 | 337 |
| 436.cactusADM | 24 | 845 | 339 | 846 | 339 | 863 | 332 | 24 | 845 | 339 | 846 | 339 | 863 | 332 |
| 437.leslie3d | 24 | 1614 | 140 | 1612 | 140 | 1611 | 140 | 24 | 1613 | 140 | 1613 | 140 | 1613 | 140 |
| 444.namd | 24 | 611 | 315 | 614 | 314 | 615 | 313 | 24 | 603 | 319 | 602 | 320 | 602 | 320 |
| 447.dealII | 24 | 553 | 497 | 553 | 496 | 553 | 497 | 24 | 553 | 497 | 553 | 496 | 553 | 497 |
| 450.soplex | 24 | 1273 | 157 | 1273 | 157 | 1273 | 157 | 24 | 1183 | 169 | 1183 | 169 | 1183 | 169 |
| 453.povray | 24 | 266 | 479 | 267 | 478 | 266 | 481 | 24 | 228 | 561 | 227 | 562 | 229 | 558 |
| 454.calculix | 24 | 493 | 401 | 496 | 400 | 496 | 399 | 24 | 493 | 401 | 496 | 400 | 496 | 399 |
| 459.GemsFDTD | 24 | 1766 | 144 | 1766 | 144 | 1766 | 144 | 24 | 1766 | 144 | 1766 | 144 | 1766 | 144 |
| 465.tonto | 24 | 799 | 295 | 816 | 290 | 808 | 292 | 24 | 771 | 306 | 770 | 307 | 794 | 298 |
| 470.lbm | 24 | 1110 | 297 | 1111 | 297 | 1110 | 297 | 24 | 1110 | 297 | 1111 | 297 | 1110 | 297 |
| 481.wrf | 24 | 1141 | 235 | 1143 | 235 | 1143 | 235 | 24 | 1117 | 240 | 1117 | 240 | 1121 | 239 |
| 482.sphinx3 | 24 | 2049 | 228 | 2050 | 228 | 2050 | 228 | 24 | 2004 | 233 | 2010 | 233 | 2009 | 233 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Configuration : Data Reuse Optimization = Disabled Sysinfo program /opt/cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Sun Jan 29 01:54:38 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU X5690 @ 3.47GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 8 9 10 physical 1: cores 0 1 2 8 9 10 cache size : 12288 KB From /proc/meminfo MemTotal: 98999864 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jan 29 01:00 SPEC is set to: /opt/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 551G 5.5G 517G 2% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006/libs/32:/opt/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
