| CPU2006 license: | 20 | Test date: | Jul-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2009 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

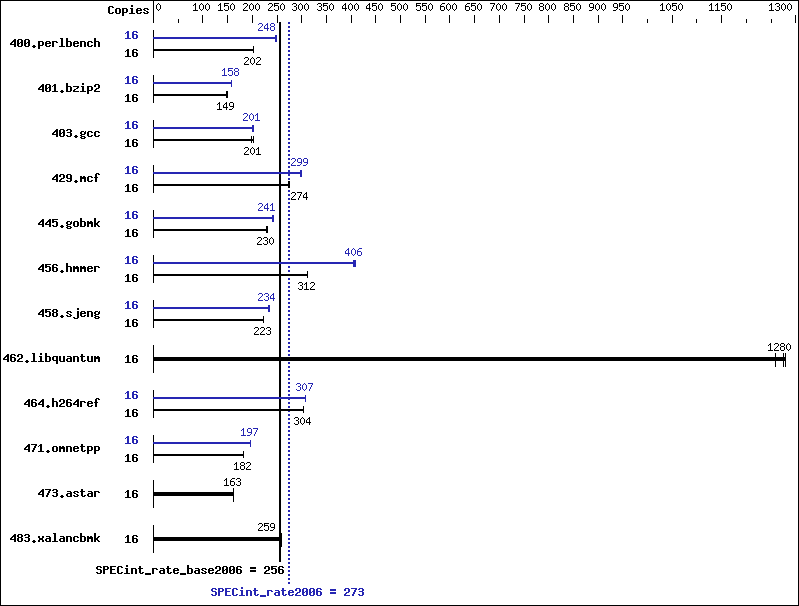

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 771 | 203 | 774 | 202 | 773 | 202 | 16 | 632 | 247 | 629 | 248 | 630 | 248 |
| 401.bzip2 | 16 | 1039 | 149 | 1037 | 149 | 1040 | 149 | 16 | 979 | 158 | 979 | 158 | 978 | 158 |
| 403.gcc | 16 | 648 | 199 | 635 | 203 | 639 | 201 | 16 | 643 | 200 | 638 | 202 | 641 | 201 |
| 429.mcf | 16 | 532 | 274 | 529 | 276 | 534 | 273 | 16 | 490 | 298 | 489 | 299 | 487 | 300 |
| 445.gobmk | 16 | 730 | 230 | 731 | 229 | 731 | 230 | 16 | 694 | 242 | 696 | 241 | 695 | 241 |
| 456.hmmer | 16 | 478 | 312 | 480 | 311 | 478 | 312 | 16 | 367 | 406 | 368 | 405 | 365 | 409 |
| 458.sjeng | 16 | 868 | 223 | 869 | 223 | 873 | 222 | 16 | 827 | 234 | 826 | 234 | 829 | 234 |
| 462.libquantum | 16 | 260 | 1280 | 264 | 1260 | 259 | 1280 | 16 | 260 | 1280 | 264 | 1260 | 259 | 1280 |
| 464.h264ref | 16 | 1165 | 304 | 1167 | 303 | 1164 | 304 | 16 | 1154 | 307 | 1154 | 307 | 1151 | 308 |
| 471.omnetpp | 16 | 550 | 182 | 551 | 182 | 552 | 181 | 16 | 508 | 197 | 508 | 197 | 508 | 197 |
| 473.astar | 16 | 691 | 162 | 690 | 163 | 691 | 163 | 16 | 691 | 162 | 690 | 163 | 691 | 163 |
| 483.xalancbmk | 16 | 427 | 259 | 425 | 260 | 429 | 257 | 16 | 427 | 259 | 425 | 260 | 429 | 257 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 7200 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled)
General Notes
Binaries were compiled on RHEL5.5 The Dell PowerEdge T710 and the Bull NovaScale T860 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge T710 model
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
