| CPU2006 license: | 55 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Apr-2011 |
| Tested by: | Dell Inc. | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4870 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (64 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Redhat Enterprise Linux 6.0, Kernel 2.6.32-71.el6.x86_64 |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

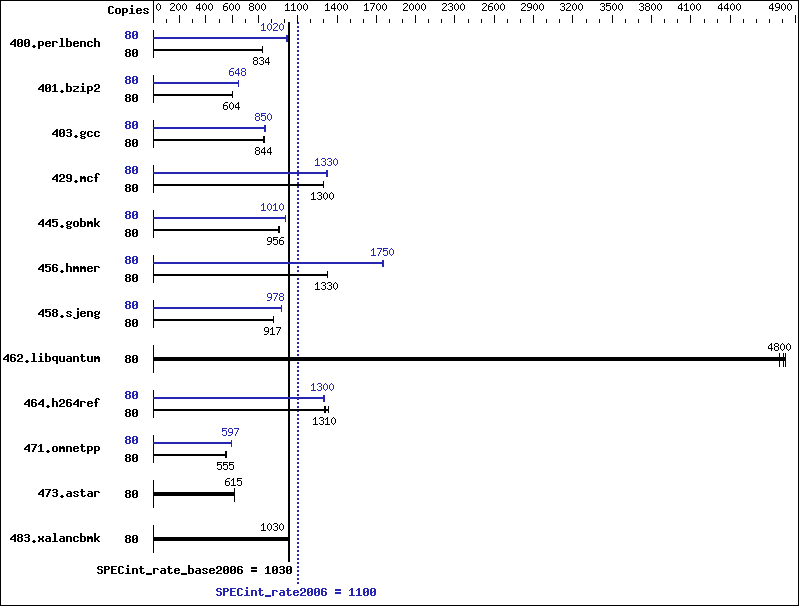

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 80 | 939 | 832 | 937 | 834 | 938 | 834 | 80 | 766 | 1020 | 768 | 1020 | 763 | 1020 |
| 401.bzip2 | 80 | 1284 | 601 | 1279 | 604 | 1279 | 604 | 80 | 1192 | 648 | 1191 | 648 | 1192 | 647 |
| 403.gcc | 80 | 759 | 848 | 765 | 842 | 763 | 844 | 80 | 758 | 850 | 755 | 853 | 758 | 850 |
| 429.mcf | 80 | 562 | 1300 | 562 | 1300 | 562 | 1300 | 80 | 550 | 1330 | 550 | 1330 | 551 | 1320 |
| 445.gobmk | 80 | 878 | 956 | 875 | 959 | 879 | 955 | 80 | 834 | 1010 | 834 | 1010 | 834 | 1010 |
| 456.hmmer | 80 | 562 | 1330 | 562 | 1330 | 562 | 1330 | 80 | 426 | 1750 | 427 | 1750 | 425 | 1760 |
| 458.sjeng | 80 | 1055 | 917 | 1056 | 917 | 1055 | 918 | 80 | 990 | 978 | 990 | 977 | 990 | 978 |
| 462.libquantum | 80 | 345 | 4800 | 344 | 4820 | 347 | 4780 | 80 | 345 | 4800 | 344 | 4820 | 347 | 4780 |
| 464.h264ref | 80 | 1324 | 1340 | 1355 | 1310 | 1348 | 1310 | 80 | 1359 | 1300 | 1368 | 1290 | 1366 | 1300 |
| 471.omnetpp | 80 | 901 | 555 | 897 | 558 | 912 | 548 | 80 | 837 | 597 | 837 | 597 | 835 | 599 |
| 473.astar | 80 | 907 | 619 | 914 | 614 | 914 | 615 | 80 | 907 | 619 | 914 | 614 | 914 | 615 |
| 483.xalancbmk | 80 | 536 | 1030 | 534 | 1030 | 536 | 1030 | 80 | 536 | 1030 | 534 | 1030 | 536 | 1030 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 72000 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model. Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
