CPU2006 license: | 9019 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Mar-2011 |
Tested by: | Cisco Systems | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
CPU MHz: | 2667 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 ,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3L-10600R-9, ECC) |
Disk Subsystem: | 73 GB SAS, 15K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 Binaries compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5 |

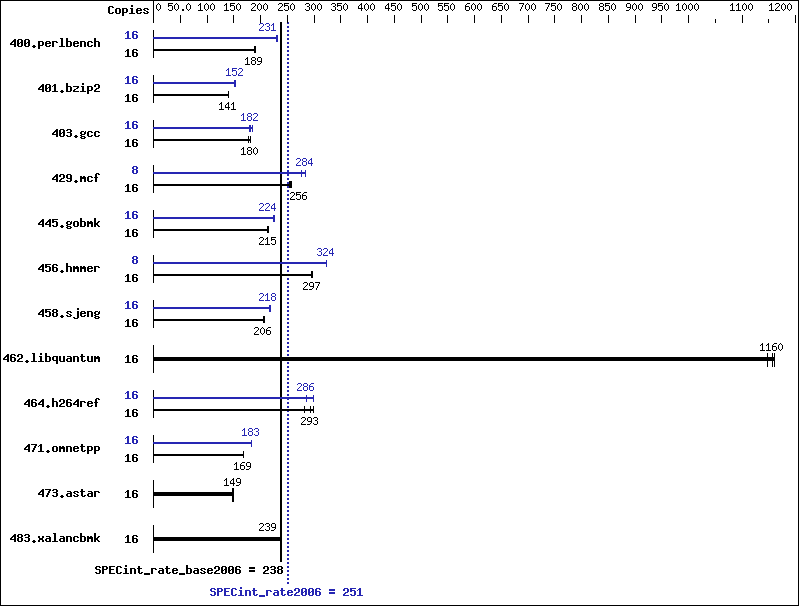

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 824 | 190 | 829 | 188 | 826 | 189 | 16 | 680 | 230 | 676 | 231 | 676 | 231 |
401.bzip2 | 16 | 1104 | 140 | 1098 | 141 | 1098 | 141 | 16 | 1012 | 153 | 1013 | 152 | 1015 | 152 |
403.gcc | 16 | 724 | 178 | 711 | 181 | 714 | 180 | 16 | 715 | 180 | 699 | 184 | 709 | 182 |
429.mcf | 16 | 574 | 254 | 568 | 257 | 570 | 256 | 8 | 257 | 284 | 264 | 277 | 257 | 284 |
445.gobmk | 16 | 781 | 215 | 782 | 215 | 788 | 213 | 16 | 748 | 224 | 743 | 226 | 749 | 224 |
456.hmmer | 16 | 505 | 296 | 503 | 297 | 503 | 297 | 8 | 230 | 324 | 230 | 324 | 230 | 324 |
458.sjeng | 16 | 937 | 207 | 938 | 206 | 940 | 206 | 16 | 888 | 218 | 890 | 218 | 891 | 217 |
462.libquantum | 16 | 286 | 1160 | 287 | 1160 | 289 | 1150 | 16 | 286 | 1160 | 287 | 1160 | 289 | 1150 |
464.h264ref | 16 | 1186 | 299 | 1208 | 293 | 1251 | 283 | 16 | 1238 | 286 | 1185 | 299 | 1238 | 286 |
471.omnetpp | 16 | 593 | 169 | 594 | 168 | 592 | 169 | 16 | 547 | 183 | 547 | 183 | 547 | 183 |
473.astar | 16 | 756 | 149 | 756 | 149 | 758 | 148 | 16 | 756 | 149 | 756 | 149 | 758 | 148 |
483.xalancbmk | 16 | 462 | 239 | 462 | 239 | 463 | 239 | 16 | 462 | 239 | 462 | 239 | 463 | 239 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
BIOS Configuration : Data Reuse Optimization = Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
