CPU2006 license: | 19 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
Tested by: | Fujitsu | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5645 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x SATA, 160 GB, 5400 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

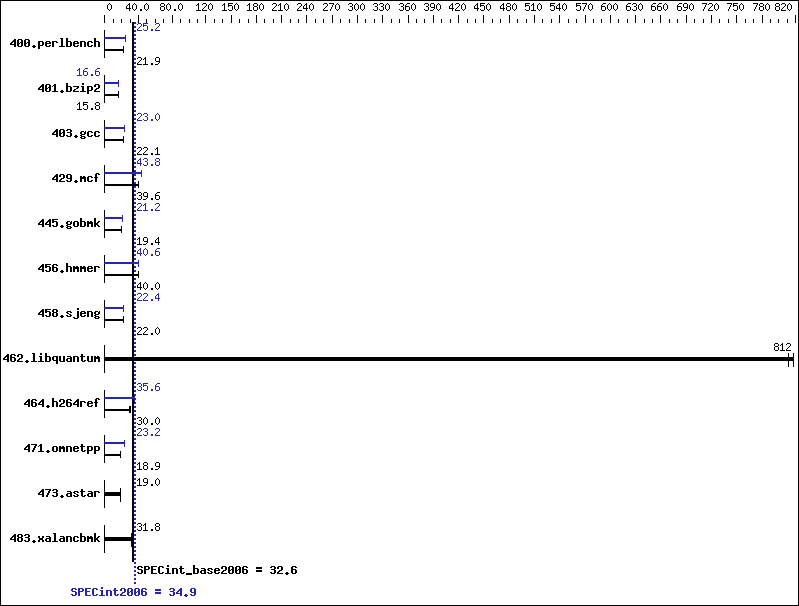

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 446 | 21.9 | 448 | 21.8 | 447 | 21.9 | 388 | 25.2 | 388 | 25.2 | 387 | 25.2 |
401.bzip2 | 610 | 15.8 | 610 | 15.8 | 610 | 15.8 | 583 | 16.6 | 583 | 16.6 | 583 | 16.5 |
403.gcc | 364 | 22.1 | 364 | 22.1 | 364 | 22.1 | 350 | 23.0 | 350 | 23.0 | 350 | 23.0 |
429.mcf | 230 | 39.7 | 231 | 39.6 | 230 | 39.6 | 208 | 43.7 | 208 | 43.9 | 208 | 43.8 |
445.gobmk | 542 | 19.4 | 542 | 19.3 | 535 | 19.6 | 494 | 21.2 | 494 | 21.2 | 494 | 21.2 |
456.hmmer | 233 | 40.0 | 233 | 40.0 | 233 | 40.0 | 230 | 40.6 | 231 | 40.4 | 230 | 40.6 |
458.sjeng | 550 | 22.0 | 551 | 22.0 | 551 | 22.0 | 540 | 22.4 | 540 | 22.4 | 540 | 22.4 |
462.libquantum | 25.3 | 818 | 25.5 | 812 | 25.5 | 811 | 25.3 | 818 | 25.5 | 812 | 25.5 | 811 |
464.h264ref | 738 | 30.0 | 739 | 30.0 | 739 | 29.9 | 622 | 35.6 | 621 | 35.6 | 622 | 35.6 |
471.omnetpp | 330 | 18.9 | 331 | 18.9 | 330 | 19.0 | 269 | 23.2 | 269 | 23.2 | 269 | 23.3 |
473.astar | 369 | 19.0 | 371 | 18.9 | 369 | 19.0 | 369 | 19.0 | 371 | 18.9 | 369 | 19.0 |
483.xalancbmk | 216 | 32.0 | 217 | 31.8 | 217 | 31.8 | 216 | 32.0 | 217 | 31.8 | 217 | 31.8 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages were not configured on the system
BIOS configuration: Data Reuse Optimization = Disable Intel HT Technology = Disable
OMP_NUM_THREADS set to number of cores For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
icc -m64 | |
400.perlbench: | icc -m32 |
429.mcf: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m64 | |
471.omnetpp: | icpc -m32 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
