| CPU2006 license: | 6 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Mar-2011 |
| Tested by: | Oracle Corporation | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5690 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 300 GB 10000 RPM SAS2 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Linux 5.5 kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

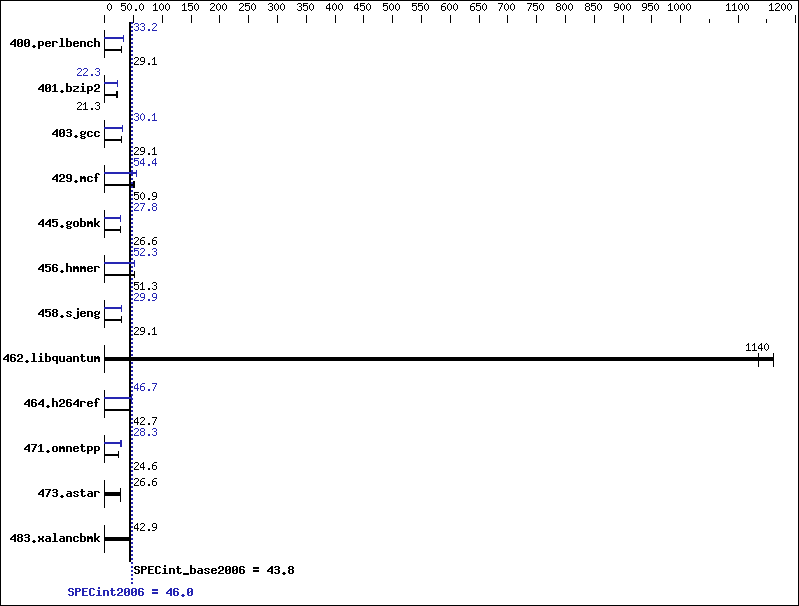

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 336 | 29.1 | 336 | 29.1 | 337 | 29.0 | 295 | 33.2 | 295 | 33.2 | 295 | 33.1 |
| 401.bzip2 | 453 | 21.3 | 454 | 21.3 | 454 | 21.3 | 433 | 22.3 | 433 | 22.3 | 433 | 22.3 |
| 403.gcc | 276 | 29.1 | 276 | 29.1 | 278 | 28.9 | 268 | 30.1 | 268 | 30.1 | 268 | 30.0 |
| 429.mcf | 180 | 50.6 | 179 | 50.9 | 179 | 50.9 | 168 | 54.4 | 167 | 54.6 | 168 | 54.4 |
| 445.gobmk | 395 | 26.6 | 396 | 26.5 | 393 | 26.7 | 377 | 27.8 | 377 | 27.8 | 377 | 27.9 |
| 456.hmmer | 182 | 51.3 | 182 | 51.3 | 182 | 51.3 | 178 | 52.3 | 178 | 52.3 | 179 | 52.1 |
| 458.sjeng | 417 | 29.0 | 414 | 29.2 | 416 | 29.1 | 405 | 29.8 | 405 | 29.9 | 405 | 29.9 |
| 462.libquantum | 18.3 | 1140 | 18.2 | 1140 | 17.8 | 1160 | 18.3 | 1140 | 18.2 | 1140 | 17.8 | 1160 |
| 464.h264ref | 517 | 42.8 | 518 | 42.7 | 519 | 42.6 | 473 | 46.8 | 474 | 46.7 | 473 | 46.7 |
| 471.omnetpp | 255 | 24.5 | 253 | 24.7 | 254 | 24.6 | 222 | 28.2 | 221 | 28.3 | 221 | 28.3 |
| 473.astar | 264 | 26.6 | 263 | 26.7 | 264 | 26.6 | 264 | 26.6 | 263 | 26.7 | 264 | 26.6 |
| 483.xalancbmk | 161 | 42.9 | 160 | 43.1 | 161 | 42.9 | 161 | 42.9 | 160 | 43.1 | 161 | 42.9 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 900 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Load Default BIOS Settings and then change the following Hardware Prefetch Enabled Adjacent Cache Line Prefetch Enabled L1 Data Prefetch Enabled Intel Hyperthreading Options Disabled
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter Binaries were compiled on RHEL5.5 with Binutils binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
