| CPU2006 license: | 3 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Oct-2010 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Mar-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X7560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2266 |
| FPU: | Integrated |
| CPU(s) enabled: | 64 cores, 8 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4, 8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (128 x 2 GB PC3-10600R dual-rank) |
| Disk Subsystem: | 4 x 73 GB 15K 6Gb SAS |
| Other Hardware: | 512 MB Flash Backed Write Cache for P410i Smart Array |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.5, Kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 5 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

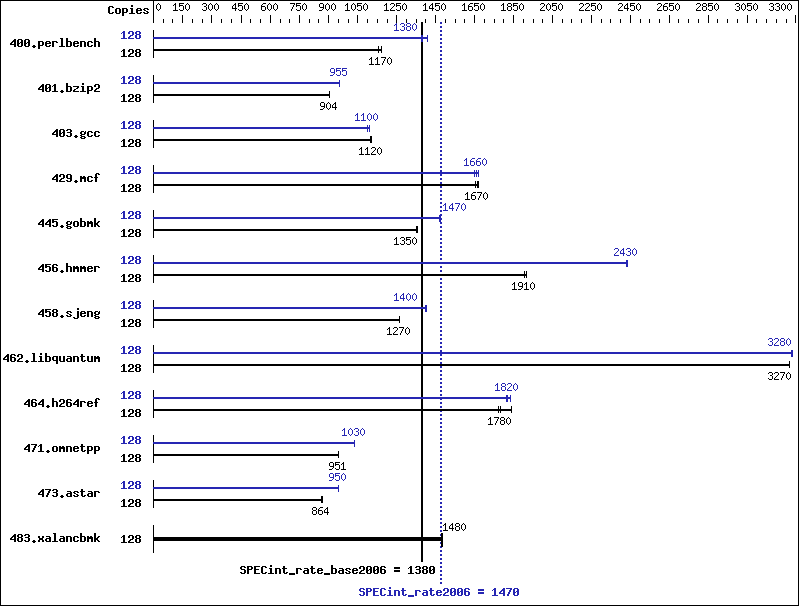

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 128 | 1068 | 1170 | 1081 | 1160 | 1067 | 1170 | 128 | 905 | 1380 | 890 | 1410 | 908 | 1380 |
| 401.bzip2 | 128 | 1366 | 904 | 1368 | 903 | 1366 | 904 | 128 | 1294 | 955 | 1293 | 955 | 1295 | 954 |
| 403.gcc | 128 | 918 | 1120 | 923 | 1120 | 921 | 1120 | 128 | 935 | 1100 | 937 | 1100 | 927 | 1110 |
| 429.mcf | 128 | 699 | 1670 | 700 | 1670 | 705 | 1660 | 128 | 699 | 1670 | 708 | 1650 | 703 | 1660 |
| 445.gobmk | 128 | 991 | 1360 | 993 | 1350 | 992 | 1350 | 128 | 914 | 1470 | 913 | 1470 | 912 | 1470 |
| 456.hmmer | 128 | 624 | 1910 | 626 | 1910 | 626 | 1910 | 128 | 492 | 2430 | 491 | 2430 | 490 | 2440 |
| 458.sjeng | 128 | 1224 | 1270 | 1223 | 1270 | 1224 | 1270 | 128 | 1105 | 1400 | 1106 | 1400 | 1108 | 1400 |
| 462.libquantum | 128 | 811 | 3270 | 812 | 3270 | 811 | 3270 | 128 | 809 | 3280 | 808 | 3280 | 809 | 3280 |
| 464.h264ref | 128 | 1541 | 1840 | 1589 | 1780 | 1597 | 1770 | 128 | 1561 | 1820 | 1543 | 1840 | 1559 | 1820 |
| 471.omnetpp | 128 | 842 | 950 | 841 | 951 | 841 | 952 | 128 | 774 | 1030 | 775 | 1030 | 773 | 1030 |
| 473.astar | 128 | 1036 | 868 | 1041 | 864 | 1041 | 863 | 128 | 945 | 951 | 946 | 950 | 945 | 950 |
| 483.xalancbmk | 128 | 595 | 1480 | 594 | 1490 | 597 | 1480 | 128 | 595 | 1480 | 594 | 1490 | 597 | 1480 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
Power Regulator set to HP Static High Performance Mode
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
