| CPU2006 license: | 11 | Test date: | Jun-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB PC3-10600R CL9, 2 Rank) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

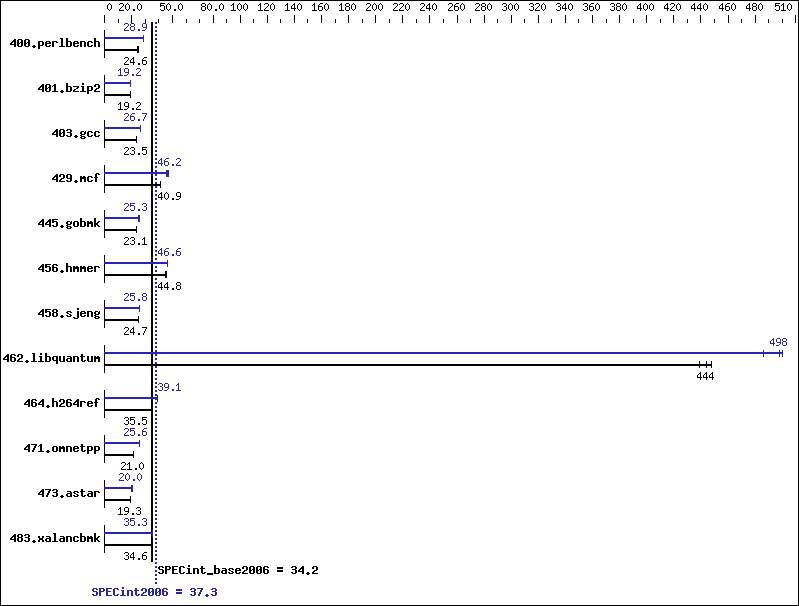

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 408 | 24.0 | 396 | 24.6 | 397 | 24.6 | 338 | 28.9 | 339 | 28.8 | 338 | 28.9 |
| 401.bzip2 | 503 | 19.2 | 500 | 19.3 | 504 | 19.1 | 502 | 19.2 | 504 | 19.1 | 503 | 19.2 |
| 403.gcc | 342 | 23.5 | 343 | 23.5 | 341 | 23.6 | 302 | 26.7 | 301 | 26.7 | 301 | 26.7 |
| 429.mcf | 223 | 40.9 | 223 | 40.9 | 223 | 40.8 | 200 | 45.6 | 194 | 47.0 | 197 | 46.2 |
| 445.gobmk | 455 | 23.1 | 454 | 23.1 | 454 | 23.1 | 415 | 25.3 | 416 | 25.2 | 414 | 25.4 |
| 456.hmmer | 206 | 45.3 | 208 | 44.8 | 209 | 44.7 | 200 | 46.6 | 200 | 46.6 | 200 | 46.5 |
| 458.sjeng | 490 | 24.7 | 490 | 24.7 | 485 | 24.9 | 469 | 25.8 | 469 | 25.8 | 468 | 25.8 |
| 462.libquantum | 46.2 | 448 | 47.2 | 439 | 46.6 | 444 | 41.6 | 498 | 42.6 | 486 | 41.4 | 500 |
| 464.h264ref | 625 | 35.4 | 622 | 35.6 | 623 | 35.5 | 570 | 38.8 | 565 | 39.2 | 565 | 39.1 |
| 471.omnetpp | 297 | 21.0 | 298 | 21.0 | 298 | 21.0 | 244 | 25.6 | 244 | 25.6 | 244 | 25.6 |
| 473.astar | 363 | 19.3 | 364 | 19.3 | 367 | 19.1 | 351 | 20.0 | 351 | 20.0 | 347 | 20.2 |
| 483.xalancbmk | 200 | 34.5 | 199 | 34.6 | 199 | 34.7 | 197 | 35.1 | 195 | 35.3 | 195 | 35.3 |
Platform Notes
Turbo Mode Enable Turbo Boost set to Traditional CPU C State Enable
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
