| CPU2006 license: | 97 | Test date: | Apr-2010 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | May-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (12 x 2GB DDR3-1333 RDIMM, running at 800 MHz) |
| Disk Subsystem: | 1000 GB SATAII, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5 |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

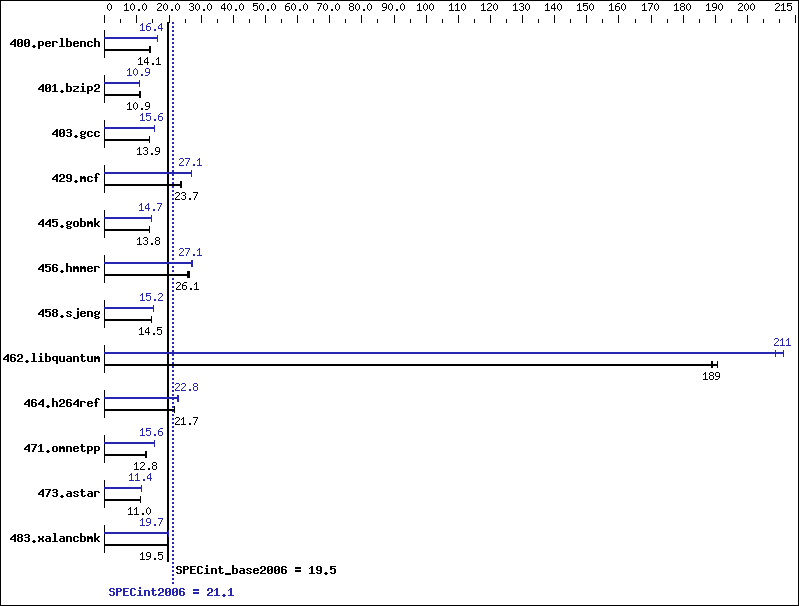

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 695 | 14.1 | 692 | 14.1 | 694 | 14.1 | 594 | 16.4 | 595 | 16.4 | 593 | 16.5 |
| 401.bzip2 | 879 | 11.0 | 884 | 10.9 | 890 | 10.8 | 881 | 11.0 | 884 | 10.9 | 886 | 10.9 |
| 403.gcc | 579 | 13.9 | 580 | 13.9 | 579 | 13.9 | 517 | 15.6 | 517 | 15.6 | 518 | 15.6 |
| 429.mcf | 385 | 23.7 | 384 | 23.7 | 384 | 23.8 | 336 | 27.1 | 338 | 27.0 | 336 | 27.1 |
| 445.gobmk | 760 | 13.8 | 760 | 13.8 | 756 | 13.9 | 715 | 14.7 | 719 | 14.6 | 714 | 14.7 |
| 456.hmmer | 354 | 26.4 | 360 | 25.9 | 358 | 26.1 | 343 | 27.2 | 344 | 27.1 | 344 | 27.1 |
| 458.sjeng | 837 | 14.5 | 836 | 14.5 | 839 | 14.4 | 795 | 15.2 | 795 | 15.2 | 795 | 15.2 |
| 462.libquantum | 110 | 189 | 109 | 191 | 110 | 189 | 99.2 | 209 | 98.0 | 211 | 98.0 | 211 |
| 464.h264ref | 1020 | 21.7 | 1019 | 21.7 | 1026 | 21.6 | 969 | 22.8 | 970 | 22.8 | 971 | 22.8 |
| 471.omnetpp | 487 | 12.8 | 486 | 12.9 | 487 | 12.8 | 402 | 15.6 | 402 | 15.5 | 402 | 15.6 |
| 473.astar | 640 | 11.0 | 639 | 11.0 | 640 | 11.0 | 621 | 11.3 | 618 | 11.4 | 618 | 11.4 |
| 483.xalancbmk | 355 | 19.5 | 353 | 19.5 | 351 | 19.7 | 350 | 19.7 | 348 | 19.8 | 350 | 19.7 |
Operating System Notes
'ulimit -s unlimited' was set for stacksize unlimited
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter This result was measured on the Gateway GT150 F1. The Acer AT150 F1 and Gateway GT150 F1 are electronically equivalent. Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
