SPEC® CFP2006 Result

Supermicro (Test Sponsor: Advanced Micro Devices)

A+ Server 1022G-NTF, AMD Opteron 6128

SPECfp®2006 = 28.1

SPECfp_base2006 = 20.4

CPU2006 license:	49	Test date:	May-2010
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Mar-2010
Tested by:	Advanced Micro Devices	Software Availability:	May-2010

Hardware
CPU Name:	AMD Opteron 6128
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	16 cores, 2 chips, 8 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache:	None
Memory:	64 GB (16 x 4 GB, DDR3-1333, CL9, Reg, Dual Rank)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.4, Advanced Platform with patch RHSA-2009:1670, Kernel 2.6.18-164.9.1.el5
Compiler:	x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18

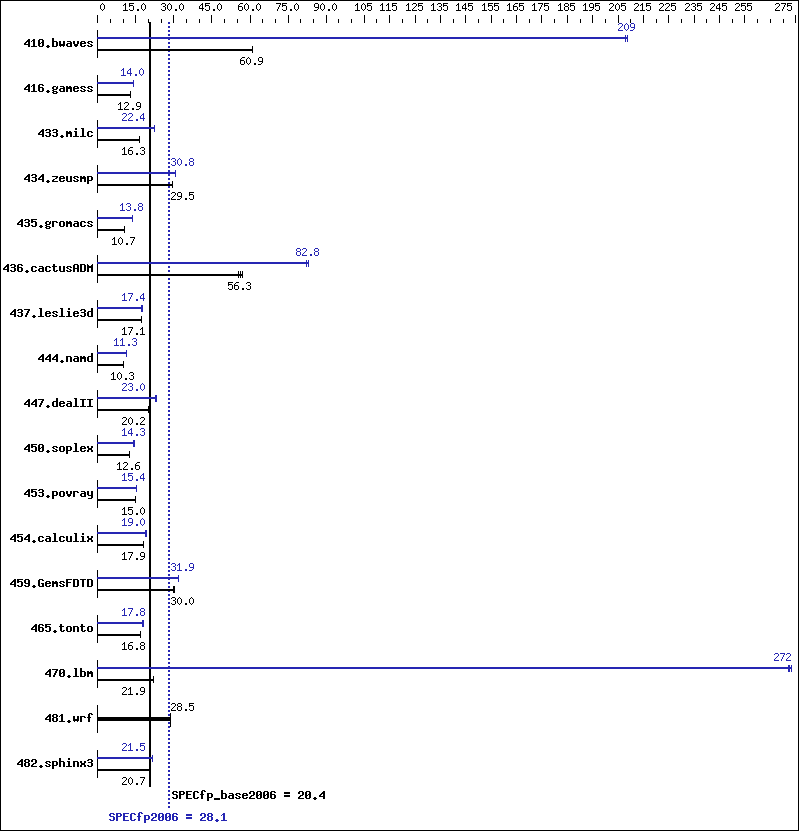

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	223	60.9	223	60.9	223	60.9	65.2	209	65.1	209	65.3	208
416.gamess	1517	12.9	1518	12.9	1521	12.9	1392	14.1	1396	14.0	1397	14.0
433.milc	556	16.5	565	16.3	564	16.3	411	22.3	408	22.5	409	22.4
434.zeusmp	308	29.5	308	29.5	309	29.5	296	30.8	296	30.8	296	30.7
435.gromacs	665	10.7	666	10.7	667	10.7	516	13.8	516	13.8	516	13.8
436.cactusADM	215	55.6	212	56.3	209	57.1	144	82.8	145	82.4	144	83.0
437.leslie3d	550	17.1	546	17.2	551	17.1	542	17.4	537	17.5	543	17.3
444.namd	777	10.3	776	10.3	777	10.3	711	11.3	708	11.3	707	11.3
447.dealII	566	20.2	567	20.2	565	20.2	498	23.0	499	22.9	498	23.0
450.soplex	659	12.7	662	12.6	666	12.5	583	14.3	583	14.3	584	14.3
453.povray	355	15.0	356	15.0	357	14.9	346	15.4	346	15.4	346	15.4
454.calculix	459	18.0	460	17.9	462	17.9	434	19.0	434	19.0	434	19.0
459.GemsFDTD	354	30.0	353	30.0	353	30.0	333	31.9	333	31.9	333	31.9
465.tonto	584	16.8	584	16.8	583	16.9	550	17.9	553	17.8	554	17.8
470.lbm	628	21.9	628	21.9	629	21.8	50.3	273	50.5	272	50.4	272
481.wrf	392	28.5	392	28.5	392	28.5	392	28.5	392	28.5	392	28.5
482.sphinx3	945	20.6	942	20.7	941	20.7	907	21.5	908	21.5	909	21.4

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-speed-libs-revA/64:/root/work/cpu2006/amd1002mc-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -Ofast -apo -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -CG:compute_to=on -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	-march=barcelona -Ofast -mso -apo -CG:sse_cse_regs=0 -LNO:prefetch_ahead=4 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:compute_to=on -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -OPT:alias=restricted -m3dnow -IPA:inline=off
482.sphinx3:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m:heap=2m
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:	-march=barcelona -Ofast -apo -OPT:malloc_alg=2 -CG:use_prefetchnta=on -CG:cmp_peep=on -LNO:blocking=off -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -LNO:apo_use_feedback=on -WOPT:aggstr=0
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -Ofast -apo -LNO:blocking=off -LNO:interchange=off -LNO:fusion_peeling_limit=0 -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -CG:compute_to=on -GRA:prioritize_by_density=on -HP:bdt=2m:heap=2m
437.leslie3d:	-march=barcelona -Ofast -apo -OPT:unroll_size=256 -LNO:prefetch_ahead=4 -LNO:parallel_overhead=32768 -GRA:prioritize_by_density=on -m3dnow -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -Ofast -apo -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -Ofast -apo -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -Ofast -apo -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LANG:heap_allocation_threshold=1000 -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m
454.calculix:	-march=barcelona -Ofast -LNO:prefetch_ahead=30 -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m -apo
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.xml.
