| CPU2006 license: | 001176 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
| Tested by: | Supermicro | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5667 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3067 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
| Disk Subsystem: | 1 x 320 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

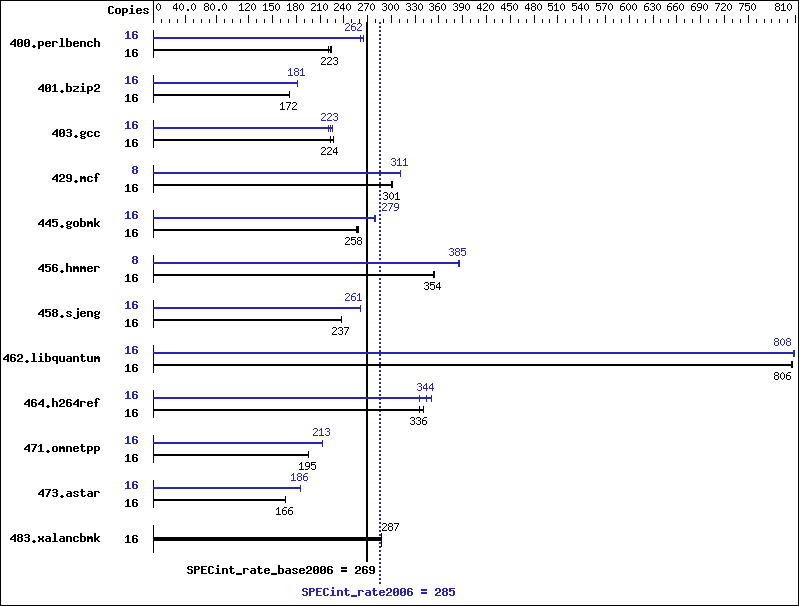

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 701 | 223 | 707 | 221 | 698 | 224 | 16 | 598 | 262 | 591 | 264 | 599 | 261 |
| 401.bzip2 | 16 | 900 | 172 | 900 | 172 | 899 | 172 | 16 | 850 | 182 | 851 | 181 | 851 | 181 |
| 403.gcc | 16 | 578 | 223 | 567 | 227 | 576 | 224 | 16 | 577 | 223 | 582 | 221 | 569 | 226 |
| 429.mcf | 16 | 484 | 301 | 485 | 301 | 485 | 301 | 8 | 235 | 311 | 234 | 311 | 234 | 311 |
| 445.gobmk | 16 | 655 | 256 | 649 | 258 | 652 | 258 | 16 | 601 | 279 | 599 | 280 | 602 | 279 |
| 456.hmmer | 16 | 422 | 354 | 423 | 353 | 421 | 355 | 8 | 194 | 385 | 194 | 385 | 194 | 385 |
| 458.sjeng | 16 | 816 | 237 | 817 | 237 | 816 | 237 | 16 | 742 | 261 | 740 | 262 | 741 | 261 |
| 462.libquantum | 16 | 412 | 805 | 411 | 806 | 411 | 806 | 16 | 411 | 807 | 410 | 808 | 410 | 808 |
| 464.h264ref | 16 | 1040 | 340 | 1053 | 336 | 1055 | 336 | 16 | 1029 | 344 | 1009 | 351 | 1054 | 336 |
| 471.omnetpp | 16 | 513 | 195 | 512 | 195 | 511 | 196 | 16 | 471 | 213 | 470 | 213 | 470 | 213 |
| 473.astar | 16 | 675 | 166 | 675 | 166 | 676 | 166 | 16 | 605 | 186 | 605 | 186 | 606 | 185 |
| 483.xalancbmk | 16 | 384 | 287 | 384 | 288 | 385 | 287 | 16 | 384 | 287 | 384 | 288 | 385 | 287 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-865-PQ power supply, 2 SNK-P0035AP4 heatsinks, along with 2 Nidec UltraFlo T92T12MMA7-57 T072 and 1 SANYO DENKI San Ace 80 9G0812G103 cooling fans.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
