| CPU2006 license: | 001176 | Test date: | Feb-2010 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Sep-2009 |
| Tested by: | Supermicro | Software Availability: | Oct-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3430 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
| Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

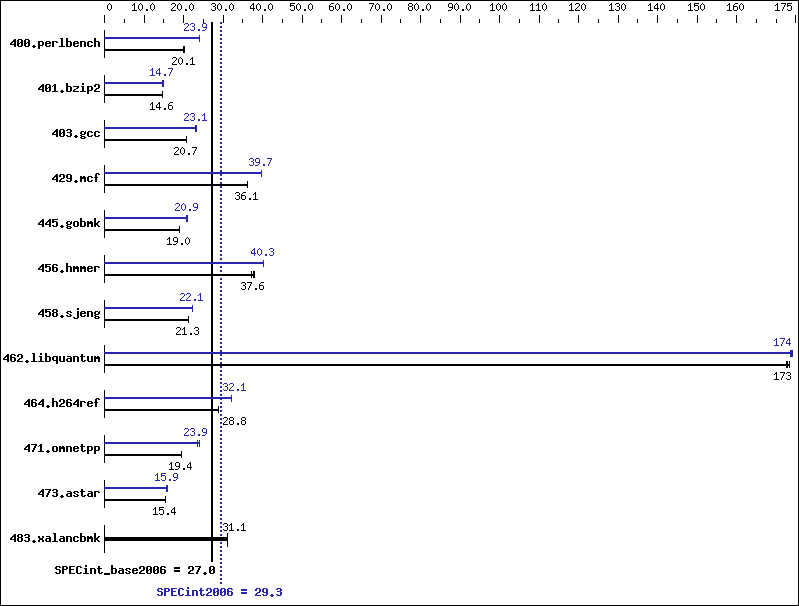

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 488 | 20.0 | 485 | 20.1 | 486 | 20.1 | 406 | 24.1 | 408 | 23.9 | 408 | 23.9 |
| 401.bzip2 | 663 | 14.6 | 661 | 14.6 | 663 | 14.6 | 652 | 14.8 | 655 | 14.7 | 658 | 14.7 |
| 403.gcc | 388 | 20.7 | 389 | 20.7 | 389 | 20.7 | 348 | 23.2 | 348 | 23.1 | 349 | 23.1 |
| 429.mcf | 253 | 36.1 | 252 | 36.1 | 253 | 36.1 | 230 | 39.6 | 229 | 39.8 | 230 | 39.7 |
| 445.gobmk | 552 | 19.0 | 551 | 19.0 | 556 | 18.9 | 504 | 20.8 | 502 | 20.9 | 502 | 20.9 |
| 456.hmmer | 247 | 37.8 | 248 | 37.6 | 251 | 37.2 | 232 | 40.2 | 232 | 40.3 | 232 | 40.3 |
| 458.sjeng | 570 | 21.2 | 569 | 21.3 | 569 | 21.3 | 546 | 22.2 | 547 | 22.1 | 547 | 22.1 |
| 462.libquantum | 119 | 173 | 120 | 173 | 120 | 173 | 119 | 174 | 119 | 174 | 119 | 174 |
| 464.h264ref | 769 | 28.8 | 769 | 28.8 | 771 | 28.7 | 690 | 32.1 | 691 | 32.0 | 689 | 32.1 |
| 471.omnetpp | 322 | 19.4 | 322 | 19.4 | 322 | 19.4 | 261 | 23.9 | 261 | 23.9 | 266 | 23.5 |
| 473.astar | 457 | 15.4 | 457 | 15.4 | 457 | 15.4 | 442 | 15.9 | 441 | 15.9 | 447 | 15.7 |
| 483.xalancbmk | 223 | 31.0 | 221 | 31.2 | 222 | 31.1 | 223 | 31.0 | 221 | 31.2 | 222 | 31.1 |
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-665-PQ power supply, SNK-P0046P heatsink, and FAN-0077L cooling fan.
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
