CPU2006 license: | 19 | Test date: | Jan-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Feb-2010 |
Tested by: | Fujitsu | Software Availability: | Oct-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3440 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
CPU MHz: | 2533 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 8 GB (2x4 GB PC3-10600U, 2 rank, CL9) |
Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

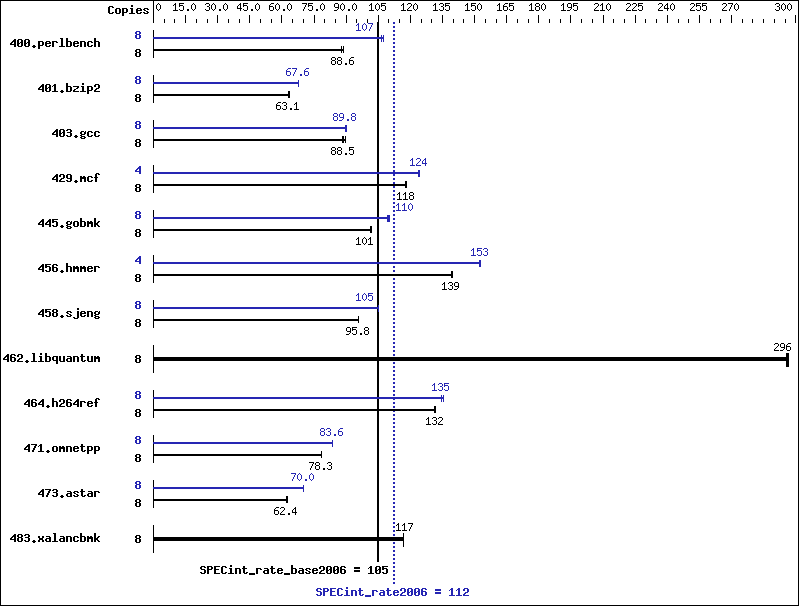

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 891 | 87.8 | 882 | 88.6 | 881 | 88.8 | 8 | 733 | 107 | 727 | 108 | 727 | 107 |
401.bzip2 | 8 | 1224 | 63.1 | 1225 | 63.0 | 1219 | 63.3 | 8 | 1139 | 67.8 | 1143 | 67.5 | 1142 | 67.6 |
403.gcc | 8 | 729 | 88.4 | 728 | 88.5 | 720 | 89.5 | 8 | 717 | 89.8 | 719 | 89.6 | 714 | 90.2 |
429.mcf | 8 | 619 | 118 | 617 | 118 | 618 | 118 | 4 | 294 | 124 | 294 | 124 | 295 | 124 |
445.gobmk | 8 | 824 | 102 | 828 | 101 | 828 | 101 | 8 | 768 | 109 | 765 | 110 | 762 | 110 |
456.hmmer | 8 | 537 | 139 | 535 | 140 | 537 | 139 | 4 | 245 | 152 | 244 | 153 | 244 | 153 |
458.sjeng | 8 | 1010 | 95.8 | 1012 | 95.7 | 1011 | 95.8 | 8 | 921 | 105 | 922 | 105 | 923 | 105 |
462.libquantum | 8 | 560 | 296 | 561 | 296 | 559 | 296 | 8 | 560 | 296 | 561 | 296 | 559 | 296 |
464.h264ref | 8 | 1345 | 132 | 1342 | 132 | 1346 | 131 | 8 | 1316 | 135 | 1308 | 135 | 1314 | 135 |
471.omnetpp | 8 | 638 | 78.4 | 639 | 78.2 | 639 | 78.3 | 8 | 598 | 83.6 | 598 | 83.6 | 598 | 83.6 |
473.astar | 8 | 902 | 62.3 | 900 | 62.4 | 901 | 62.4 | 8 | 802 | 70.0 | 800 | 70.2 | 802 | 70.0 |
483.xalancbmk | 8 | 473 | 117 | 473 | 117 | 473 | 117 | 8 | 473 | 117 | 473 | 117 | 473 | 117 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
