| CPU2006 license: | 001176 | Test date: | Jan-2010 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Jan-2010 |
| Tested by: | Supermicro | Software Availability: | Oct-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5520 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2270 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB DDR3-1333 RDIMM, running at 1066 MHz, CL7) |
| Disk Subsystem: | 1 x 300 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

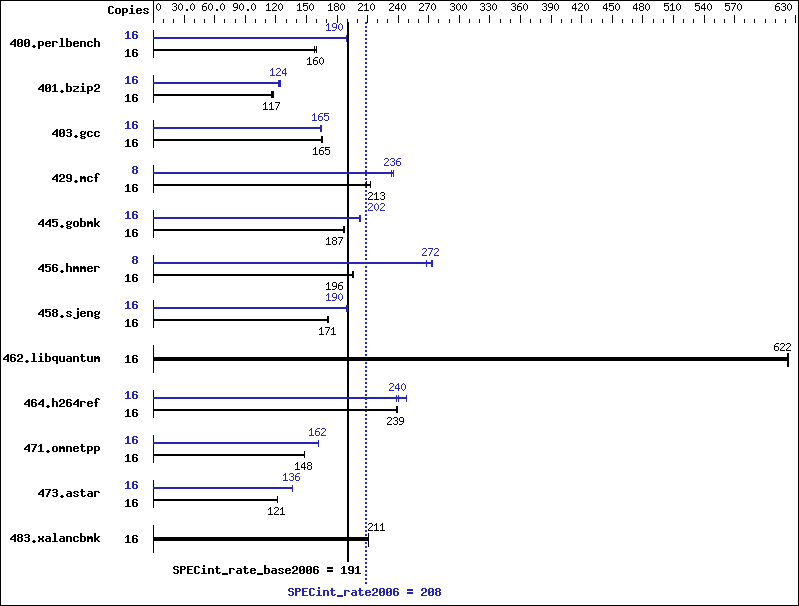

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 990 | 158 | 980 | 160 | 977 | 160 | 16 | 824 | 190 | 826 | 189 | 825 | 190 |
| 401.bzip2 | 16 | 1329 | 116 | 1310 | 118 | 1324 | 117 | 16 | 1257 | 123 | 1243 | 124 | 1246 | 124 |
| 403.gcc | 16 | 779 | 165 | 783 | 164 | 777 | 166 | 16 | 783 | 165 | 787 | 164 | 780 | 165 |
| 429.mcf | 16 | 698 | 209 | 685 | 213 | 684 | 213 | 8 | 312 | 234 | 310 | 236 | 310 | 236 |
| 445.gobmk | 16 | 895 | 188 | 899 | 187 | 899 | 187 | 16 | 832 | 202 | 828 | 203 | 832 | 202 |
| 456.hmmer | 16 | 761 | 196 | 762 | 196 | 763 | 196 | 8 | 274 | 272 | 279 | 268 | 273 | 273 |
| 458.sjeng | 16 | 1130 | 171 | 1130 | 171 | 1131 | 171 | 16 | 1018 | 190 | 1021 | 190 | 1021 | 190 |
| 462.libquantum | 16 | 533 | 622 | 533 | 622 | 533 | 623 | 16 | 533 | 622 | 533 | 622 | 533 | 623 |
| 464.h264ref | 16 | 1483 | 239 | 1479 | 239 | 1484 | 239 | 16 | 1424 | 249 | 1485 | 239 | 1472 | 240 |
| 471.omnetpp | 16 | 675 | 148 | 675 | 148 | 675 | 148 | 16 | 619 | 162 | 619 | 162 | 619 | 162 |
| 473.astar | 16 | 926 | 121 | 927 | 121 | 926 | 121 | 16 | 824 | 136 | 825 | 136 | 825 | 136 |
| 483.xalancbmk | 16 | 523 | 211 | 523 | 211 | 522 | 211 | 16 | 523 | 211 | 523 | 211 | 522 | 211 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
System can be built with CSE-714M-230B. To ensure system stability, enclosure SBE-714E-D28 with 2 1400 W power supplies with full fan speed are needed. Product description can be obtained at: http://www.supermicro.com/servers/blade/module/SBI-7426T-T3.cfm
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
