SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M9000

CPU2006 license: 6 Test date: Aug-2009
Test sponsor: Sun Microsystems Hardware Availability: Nov-2009
Tested by: Fujitsu Limited Software Availability: Jun-2009

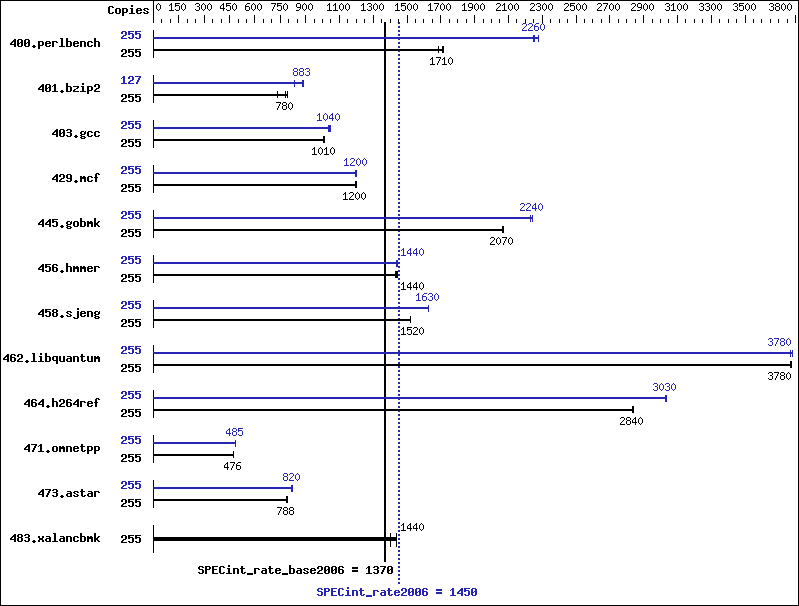

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2880
FPU: Integrated
CPU(s) enabled: 128 cores, 32 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 8 CMUs; each CMU contains 2 or 4 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 704 GB (160 x 2 GB + 96 x 4 GB), 8-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
1700 GB RAID 0 Solaris Volume
12 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Stripe interlace 2048 Kbytes
Other Hardware: None
Software
Operating System: Solaris 10 5/09 with patches 119963-13,
120753-06, 118683-03
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 255 1476 1690 1456 1710 1451 1720 255 1109 2250 1104 2260 1093 2280
401.bzip2 255 3350 735 3111 791 3155 780 127 1469 834 1383 886 1388 883
403.gcc 255 2036 1010 2030 1010 2028 1010 255 1970 1040 1982 1040 1958 1050
429.mcf 255 1936 1200 1946 1190 1946 1200 255 1938 1200 1939 1200 1946 1200
445.gobmk 255 1296 2060 1293 2070 1295 2070 255 1198 2230 1194 2240 1194 2240
456.hmmer 255 1660 1430 1649 1440 1657 1440 255 1655 1440 1656 1440 1648 1440
458.sjeng 255 2030 1520 2026 1520 2029 1520 255 1899 1630 1898 1630 1898 1630
462.libquantum 255 1399 3780 1399 3780 1401 3770 255 1401 3770 1397 3780 1398 3780
464.h264ref 255 1989 2840 1989 2840 1987 2840 255 1862 3030 1862 3030 1859 3040
471.omnetpp 255 3350 476 3361 474 3348 476 255 3289 485 3293 484 3287 485
473.astar 255 2262 791 2280 785 2271 788 255 2186 819 2173 824 2182 820
483.xalancbmk 255 1252 1410 1224 1440 1222 1440 255 1252 1410 1224 1440 1222 1440

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)




    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=40000000
       Memory byte limit for caching I/O buffers.


    lpg_alloc_prefer=1
       Set lgroup page allocation to strongly prefer local pages.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

 The SPEC toolset was bound to processors 1-511 using processor sets:
       psrset -c 1-255
       psrset -e 1 ksh

Platform Notes


 Memory is 8-way interleaved by filling each CMU's slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M9000 Server.
 Note that the Fujitsu SPARC Enterprise M9000 and Sun SPARC Enterprise
 M9000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=std   -ll2amm

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=compatible   -ll2amm   -lfast

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -lfast   -ll2amm
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -ll2amm
429.mcf:  -fast   -xipo=2   -xpagesize=4M   -xprefetch=no   -xalias_level=std   -fma=fused   -lfast
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -ll2amm
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2
462.libquantum:  -fast   -xpagesize=4M   -xipo=2   -xprefetch_level=1
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -ll2amm
473.astar:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:3   -lfast   -ll2amm
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
