SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M5000

CPU2006 license: 6 Test date: Sep-2009
Test sponsor: Sun Microsystems Hardware Availability: Nov-2009
Tested by: Sun Microsystems Software Availability: Oct-2009

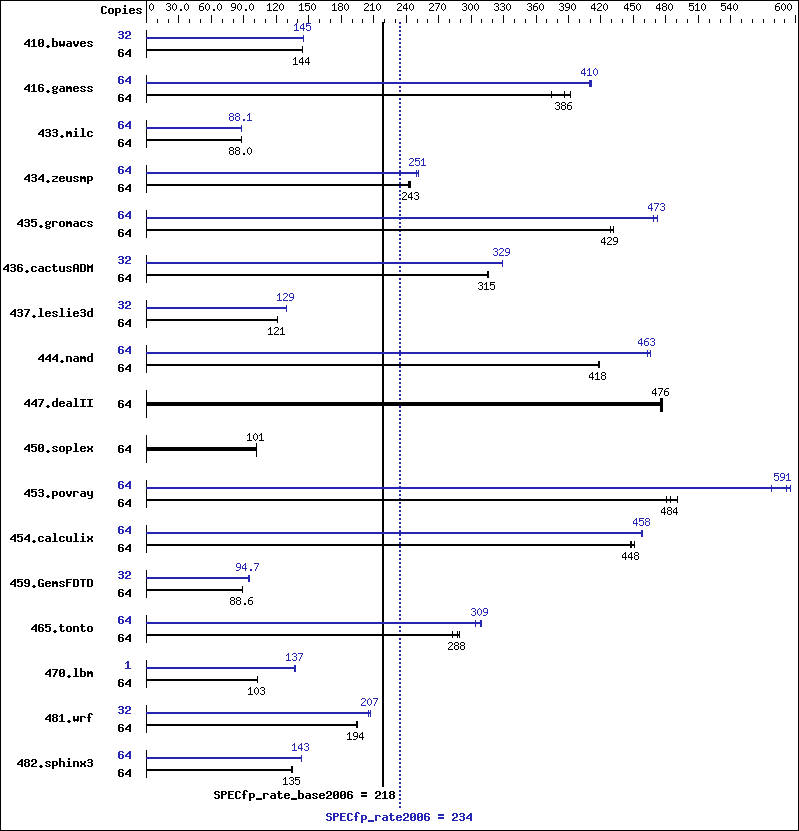

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2530
FPU: Integrated
CPU(s) enabled: 32 cores, 8 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CPUMs; each CPUM contains 2 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5632 KB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (64 x 2 GB), 8-way interleaved
Disk Subsystem: 536 GB (zfs 8 x 3-way mirrors) on
24 x 73GB 15000RPM FC-AL disks
in 2 x SE3510 enclosures
Other Hardware: None
Software
Operating System: Solaris 10 10/09 (s10s_u8wos_06)
Compiler: Sun Studio 12 Update 1 plus patches (see notes)
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 6043 144   6034 144   6035 144   32 3001 145   3002 145   3001 145
416.gamess 64 3199 392   3347 374   3243 386   64 3058 410   3050 411   3056 410
433.milc 64 6674 88.0 6676 88.0 6672 88.1 64 6665 88.2 6667 88.1 6665 88.1
434.zeusmp 64 2393 243   2401 243   2390 244   64 2318 251   2317 251   2331 250
435.gromacs 64 1065 429   1067 428   1059 432   64 967 473   967 473   976 468
436.cactusADM 64 2423 316   2425 315   2426 315   32 1163 329   1161 329   1161 329
437.leslie3d 64 4968 121   4966 121   4961 121   32 2324 129   2323 129   2325 129
444.namd 64 1230 417   1227 418   1229 418   64 1108 463   1103 466   1108 463
447.dealII 64 1538 476   1541 475   1534 477   64 1538 476   1541 475   1534 477
450.soplex 64 5262 101   5273 101   5270 101   64 5262 101   5273 101   5270 101
453.povray 64 694 491   704 484   708 481   64 589 578   572 595   576 591
454.calculix 64 1172 451   1180 448   1178 448   64 1152 458   1152 458   1153 458
459.GemsFDTD 64 7677 88.5 7667 88.6 7666 88.6 32 3584 94.7 3587 94.7 3587 94.7
465.tonto 64 2226 283   2179 289   2189 288   64 2040 309   2032 310   2074 304
470.lbm 64 8553 103   8555 103   8553 103   1 100 137   100 137   100 137
481.wrf 64 3667 195   3681 194   3679 194   32 1738 206   1730 207   1729 207
482.sphinx3 64 9272 135   9269 135   9279 134   64 8712 143   8710 143   8698 143

Compiler Invocation Notes

 Sun Studio 12 Update 1 was used, plus patch 119963-17

 Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes


 Processes were assigned to specific processors using 'pbind'
 commands.  The config file option 'submit' was used, along
 with a list of processors in the 'BIND' variable, to generate
 the pbind commands.  (For details, please see the config file.)

Operating System Notes


 ulimit -s 131072 was used to allow the stack to grow
 up to 131072 KB (aka 128 MB).  Note that saying "131072"
 is preferable to "unlimited", because there is a tradeoff
 between space for the stack vs. space for the heap.


 System Tunables (/etc/system parameters):

 tune_t_fsflushr=10
     Controls how many seconds elapse between runs of the
     page flush daemon, fsflush.
 autoup=600
     Causes pages older than the listed number of seconds to
     be written by fsflush.
 zfs:zfs_arc_max = 0x10000000
     Control the amount of memory used by ZFS for caching
 lpg_alloc_prefer=1
     Prefer local pages, even if not easily available

 Other System Settings:

 The webconsole service was turned off using
     svcadm disable webconsole

 The system had 50 GB of swap space

Platform Notes


 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

 This result is measured on a Sun SPARC Enterprise M5000
 Server.  The Sun SPARC Enterprise M5000 and the Fujitsu
 SPARC Enterprise M5000 are electrically equivalent.

General Notes

 Environment variables set by runspec before the start of the run:
    OMP_NUM_THREADS = "64"
    SUNW_MP_PROCBIND = "true"
    SUNW_MP_THR_IDLE = "SPIN"

    447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

    447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:0.5   -library=no%Cstd   -I/export/home/apache/stdcxx-4.2.1/include   -I/export/home/apache/stdcxx-4.2.1/build/include   -L/export/home/apache/stdcxx-4.2.1/build/lib   -R/export/home/apache/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -xprefetch_level=2

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std
470.lbm:  -fast   -xpagesize=4M   -xprefetch_level=3   -xipo=2   -fma=fused   -xvector   -xarch=generic   -xautopar   -xreduction
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xinline=   -xprefetch=no%auto   -xalias_level=strong   -lfast   -ll2amm

C++ benchmarks:

444.namd:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -fma=fused   -xipo=2   -xprefetch=no%auto   -xlinkopt=2
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=2
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=no%auto
434.zeusmp:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=1   -ll2amm
437.leslie3d:  -fast   -xpagesize=4M   -xprefetch=no
459.GemsFDTD:  -fast   -xpagesize=4M   -fma=fused   -fsimple=1   -xprefetch=no
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xprefetch=no   -lfast   -ll2amm

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xchip=generic   -xinline=   -fsimple=0
436.cactusADM:  -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=latx:0.7   -fsimple=1
454.calculix:  -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=1   -xalias_level=std   -xprefetch_auto_type=indirect_array_access
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -xipo=2   -xprefetch_level=2

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
