SPEC® CINT2006 Result

IBM Corporation

IBM System x iDataPlex dx360 M2 (Intel Xeon E5530)

Hardware
CPU Name:	Intel Xeon E5530
CPU Characteristics:	Intel Turbo Boost Technology up to 2.66 GHz
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (12 x 2 GB PC3-10600R, 2 Rank, running at 1066 MHz)
Disk Subsystem:	1 x 250 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp
Compiler:	Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

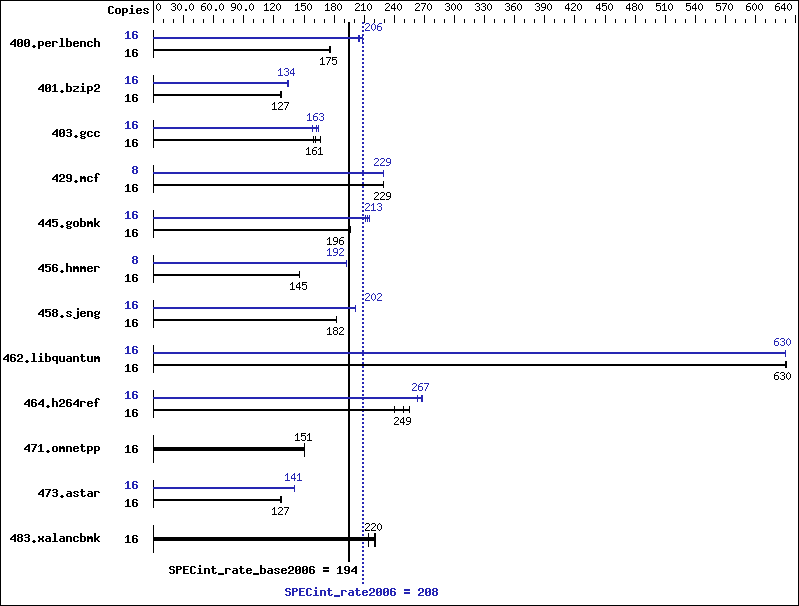

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	891	175	885	177	891	175	16	767	204	761	206	751	208
401.bzip2	16	1220	127	1214	127	1209	128	16	1158	133	1155	134	1149	134
403.gcc	16	775	166	806	160	798	161	16	782	165	813	158	791	163
429.mcf	16	636	229	637	229	636	229	8	319	229	318	229	318	229
445.gobmk	16	857	196	864	194	856	196	16	779	215	789	213	793	212
456.hmmer	16	1028	145	1025	146	1028	145	8	389	192	388	192	388	192
458.sjeng	16	1060	183	1063	182	1063	182	16	961	202	962	201	960	202
462.libquantum	16	527	629	526	630	526	630	16	526	630	526	630	526	630
464.h264ref	16	1386	255	1422	249	1472	241	16	1321	268	1325	267	1346	263
471.omnetpp	16	664	151	663	151	664	151	16	664	151	663	151	664	151
473.astar	16	882	127	886	127	883	127	16	797	141	799	141	797	141
483.xalancbmk	16	501	220	500	221	515	214	16	501	220	500	221	515	214

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
 Turbo Mode Enable

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.0/080/bin/intel64/icc

	icpc
473.astar:	/opt/intel/Compiler/11.0/080/bin/intel64/icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	basepeak = yes
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:
