| CPU2006 license: | 19 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (3x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
| Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

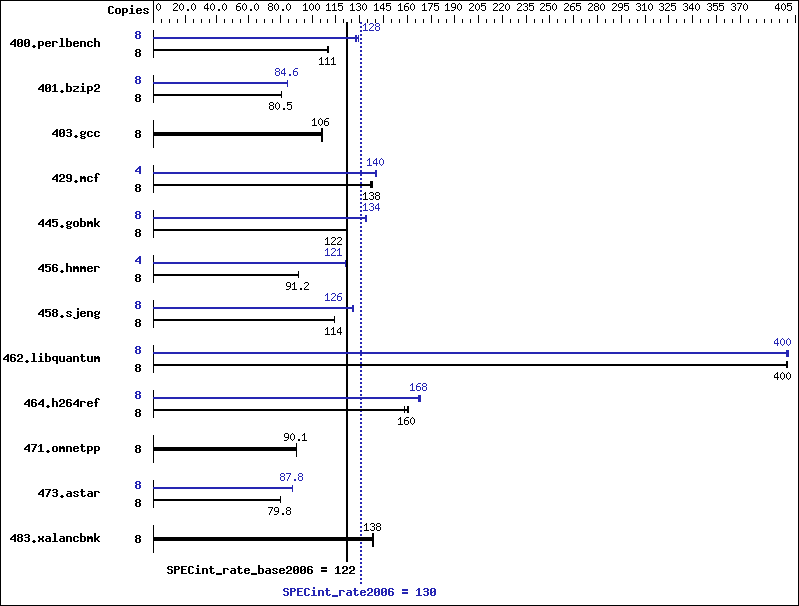

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 707 | 111 | 707 | 111 | 713 | 110 | 8 | 604 | 129 | 610 | 128 | 612 | 128 |
| 401.bzip2 | 8 | 960 | 80.5 | 959 | 80.5 | 957 | 80.6 | 8 | 913 | 84.5 | 912 | 84.7 | 913 | 84.6 |
| 403.gcc | 8 | 607 | 106 | 603 | 107 | 607 | 106 | 8 | 607 | 106 | 603 | 107 | 607 | 106 |
| 429.mcf | 8 | 532 | 137 | 530 | 138 | 529 | 138 | 4 | 260 | 140 | 260 | 140 | 260 | 140 |
| 445.gobmk | 8 | 689 | 122 | 690 | 122 | 690 | 122 | 8 | 627 | 134 | 628 | 134 | 625 | 134 |
| 456.hmmer | 8 | 814 | 91.7 | 818 | 91.2 | 818 | 91.2 | 4 | 309 | 121 | 308 | 121 | 308 | 121 |
| 458.sjeng | 8 | 848 | 114 | 847 | 114 | 848 | 114 | 8 | 769 | 126 | 770 | 126 | 770 | 126 |
| 462.libquantum | 8 | 415 | 400 | 416 | 399 | 414 | 400 | 8 | 415 | 399 | 414 | 400 | 414 | 401 |
| 464.h264ref | 8 | 1120 | 158 | 1104 | 160 | 1103 | 161 | 8 | 1055 | 168 | 1053 | 168 | 1058 | 167 |
| 471.omnetpp | 8 | 555 | 90.1 | 555 | 90.1 | 555 | 90.1 | 8 | 555 | 90.1 | 555 | 90.1 | 555 | 90.1 |
| 473.astar | 8 | 704 | 79.8 | 703 | 79.9 | 704 | 79.8 | 8 | 640 | 87.8 | 639 | 87.8 | 640 | 87.7 |
| 483.xalancbmk | 8 | 398 | 139 | 399 | 138 | 400 | 138 | 8 | 398 | 139 | 399 | 138 | 400 | 138 |
General Notes
This result was measured on the PRIMERGY RX300 S5. The PRIMERGY TX300 S5 and the PRIMERGY RX300 S5 are electronically equivalent. For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
