SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade X6440 (AMD Opteron 8389 2.9GHz)

CPU2006 license: 6 Test date: Aug-2009
Test sponsor: Sun Microsystems Hardware Availability: Jan-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

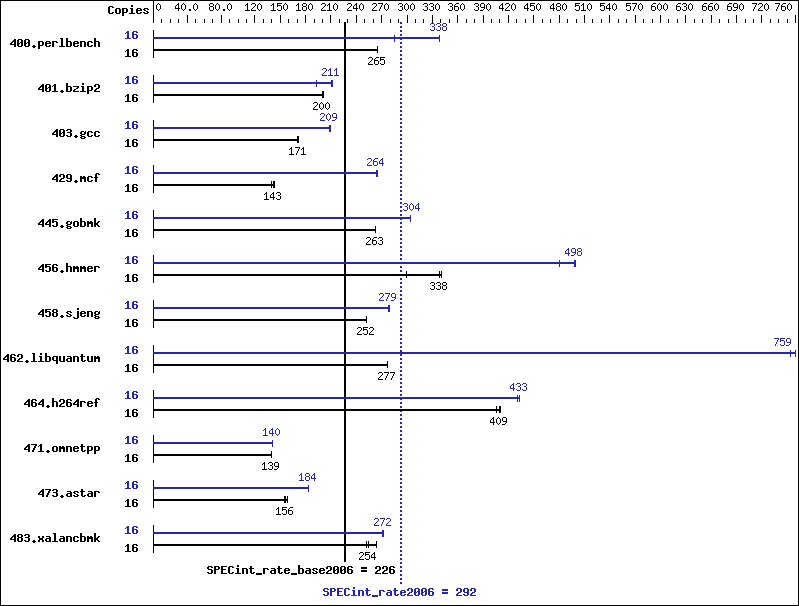

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8389
CPU Characteristics:
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 2 or 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16x4GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 80 GB 10 K RPM SATA via NFS
Other Hardware: See additional details below
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Kernel 2.6.18-128.el5 for x86_64
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite (from AMD)
Auto Parallel: No
File System: NFSv3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 589 266 589 265 589 265 16 547 286 462 338 462 338
401.bzip2 16 773 200 766 202 772 200 16 799 193 732 211 727 212
403.gcc 16 752 171 756 170 752 171 16 618 208 616 209 618 209
429.mcf 16 1024 143 1041 140 1021 143 16 553 264 552 265 552 264
445.gobmk 16 638 263 638 263 639 263 16 552 304 552 304 552 304
456.hmmer 16 499 299 438 341 441 338 16 310 481 300 498 299 499
458.sjeng 16 769 252 769 252 769 252 16 695 279 694 279 694 279
462.libquantum 16 1198 277 1197 277 1197 277 16 436 760 436 759 440 753
464.h264ref 16 874 405 863 410 866 409 16 817 433 821 431 818 433
471.omnetpp 16 717 139 716 140 717 139 16 712 140 711 141 713 140
473.astar 16 720 156 708 159 725 155 16 611 184 611 184 612 184
483.xalancbmk 16 438 252 419 263 434 254 16 405 272 406 272 407 271

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit
Set vm/nr_hugepages=14336 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

   Default BIOS settings used except:
   DCT Unganged Mode set to "Enable" to enable Unganged Mode

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/data1/SPECcpu2006v1.1-pegasus215/amd0905is-libs/64:/data1/SPECcpu2006v1.1-pegasus215/amd0905is-libs/32"
PGI_HUGE_PAGES = "896"
The NFS server used was a Sun Fire X2100 M2 containing 1 x 80 GB 10 K RPM SATA disks.
Connections to the clients were via gigabit ethernet.
The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64.

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -m32   -INLINE:aggressive=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 opencc
456.hmmer:  pgcc

C++ benchmarks (except as noted below):

 openCC
473.astar:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:unroll_size=0   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m
462.libquantum:  -march=barcelona   -Ofast   -LNO:pf2=0   -CG:gcm=off   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:space=1000   -IPA:plimit=20000
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  -march=barcelona   -Ofast   -CG:gcm=off   -INLINE:aggressive=on   -OPT:alias=disjoint   -WOPT:if_conv=0   -m32   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp shanghai-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4

C++ benchmarks:

473.astar:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform.20090929.html,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090915.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.20090915.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform.20090929.xml,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090915.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.20090915.xml.
