| CPU2006 license: | 3 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2009 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB PC3-10600R CL9) |
| Disk Subsystem: | 2x146 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

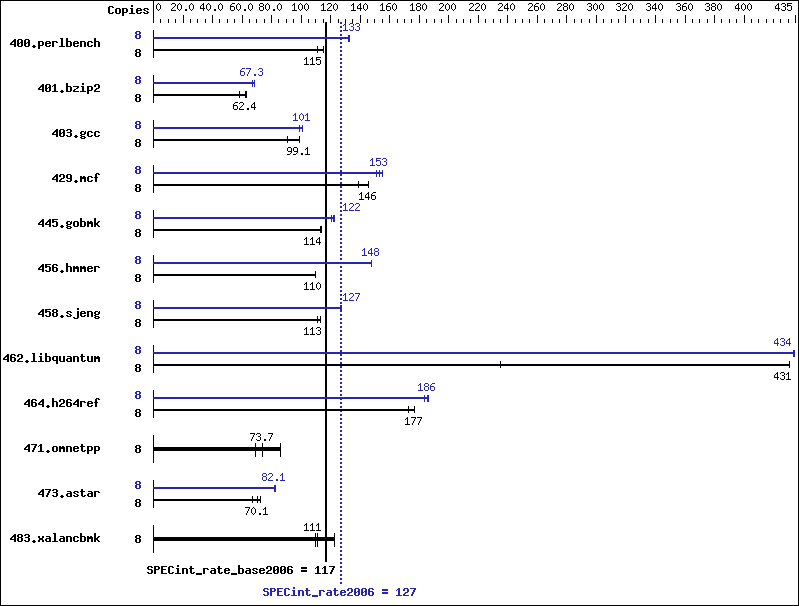

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 702 | 111 | 680 | 115 | 678 | 115 | 8 | 593 | 132 | 589 | 133 | 590 | 133 |
| 401.bzip2 | 8 | 1325 | 58.3 | 1221 | 63.2 | 1237 | 62.4 | 8 | 1148 | 67.3 | 1128 | 68.4 | 1149 | 67.2 |
| 403.gcc | 8 | 710 | 90.7 | 650 | 99.1 | 650 | 99.1 | 8 | 653 | 98.7 | 637 | 101 | 640 | 101 |
| 429.mcf | 8 | 525 | 139 | 501 | 146 | 500 | 146 | 8 | 483 | 151 | 471 | 155 | 476 | 153 |
| 445.gobmk | 8 | 737 | 114 | 738 | 114 | 741 | 113 | 8 | 683 | 123 | 689 | 122 | 695 | 121 |
| 456.hmmer | 8 | 681 | 110 | 682 | 109 | 682 | 110 | 8 | 506 | 148 | 505 | 148 | 506 | 148 |
| 458.sjeng | 8 | 869 | 111 | 854 | 113 | 854 | 113 | 8 | 763 | 127 | 764 | 127 | 762 | 127 |
| 462.libquantum | 8 | 705 | 235 | 385 | 431 | 385 | 431 | 8 | 382 | 434 | 382 | 434 | 382 | 434 |
| 464.h264ref | 8 | 1002 | 177 | 1000 | 177 | 1025 | 173 | 8 | 950 | 186 | 953 | 186 | 964 | 184 |
| 471.omnetpp | 8 | 723 | 69.1 | 582 | 85.9 | 679 | 73.7 | 8 | 723 | 69.1 | 582 | 85.9 | 679 | 73.7 |
| 473.astar | 8 | 840 | 66.8 | 777 | 72.3 | 801 | 70.1 | 8 | 685 | 81.9 | 684 | 82.1 | 682 | 82.4 |
| 483.xalancbmk | 8 | 502 | 110 | 449 | 123 | 498 | 111 | 8 | 502 | 110 | 449 | 123 | 498 | 111 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance HP Power Regulator set to HP Static High Performance Mode Thermal Configuration set to Increased Cooling
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
