SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NTT System S. A.

NTT Tytan S8 Series

SPECfp®2006 = 23.0

SPECfp_base2006 = 22.1

CPU2006 license:	9013	Test date:	Jan-2009
Test sponsor:	NTT System S. A.	Hardware Availability:	Dec-2008
Tested by:	NTT System S. A.	Software Availability:	Dec-2008

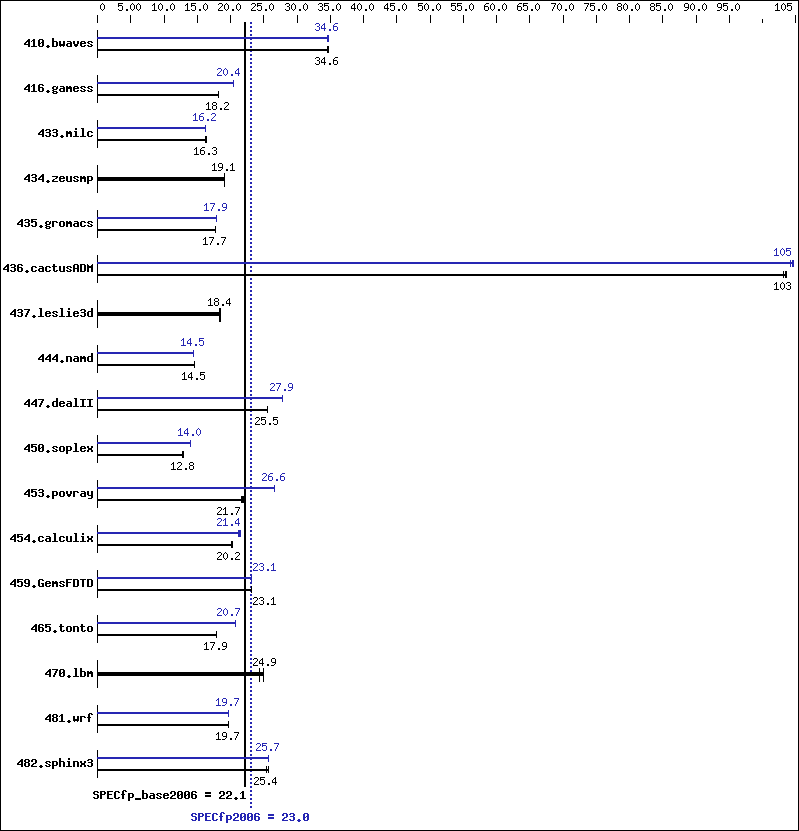

Benchmark results graph

Hardware
CPU Name:	Intel Xeon E5430
CPU Characteristics:	2.66 GHz, 2x6 MB P2 shared, 1333 MHz System Bus
CPU MHz:	2666
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4 x 4GB DDR2-667 FBDIMM)
Disk Subsystem:	300 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux SLES10 SP1, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ and Fortran Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066, l_cprof_p_11.0.066
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.18.50.0.7.20080502

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	393	34.6	392	34.6	392	34.6	392	34.7	393	34.6	393	34.6
416.gamess	1077	18.2	1076	18.2	1075	18.2	962	20.4	962	20.4	961	20.4
433.milc	567	16.2	562	16.3	562	16.3	568	16.2	565	16.3	568	16.2
434.zeusmp	479	19.0	477	19.1	476	19.1	479	19.0	477	19.1	476	19.1
435.gromacs	404	17.7	403	17.7	403	17.7	401	17.8	400	17.9	399	17.9
436.cactusADM	116	103	115	104	116	103	114	105	115	104	114	105
437.leslie3d	512	18.4	511	18.4	509	18.5	512	18.4	511	18.4	509	18.5
444.namd	552	14.5	552	14.5	552	14.5	555	14.5	555	14.5	556	14.4
447.dealII	448	25.5	448	25.5	448	25.6	411	27.9	411	27.8	411	27.9
450.soplex	653	12.8	650	12.8	647	12.9	596	14.0	596	14.0	597	14.0
453.povray	243	21.9	245	21.7	245	21.7	200	26.6	200	26.7	200	26.6
454.calculix	408	20.2	407	20.3	409	20.2	385	21.4	389	21.2	386	21.4
459.GemsFDTD	459	23.1	459	23.1	459	23.1	459	23.1	460	23.1	459	23.1
465.tonto	549	17.9	551	17.8	550	17.9	476	20.7	475	20.7	475	20.7
470.lbm	549	25.0	564	24.4	551	24.9	549	25.0	564	24.4	551	24.9
481.wrf	569	19.6	568	19.7	567	19.7	567	19.7	567	19.7	570	19.6
482.sphinx3	759	25.7	766	25.4	767	25.4	757	25.7	760	25.7	759	25.7

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias
470.lbm:	basepeak = yes
482.sphinx3:	-m32 -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- -opt-prefetch
450.soplex:	-m32 -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch -parallel
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32
454.calculix:	-xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32
481.wrf:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.03.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090710.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.03.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090710.xml.
