| CPU2006 license: | 9013 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | NTT System S. A. | Hardware Availability: | Dec-2008 |
| Tested by: | NTT System S. A. | Software Availability: | Dec-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 2 GHz, 2x6 MB L2 shared, 1333 MHz System Bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4GB) |
| Disk Subsystem: | 300 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP1, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

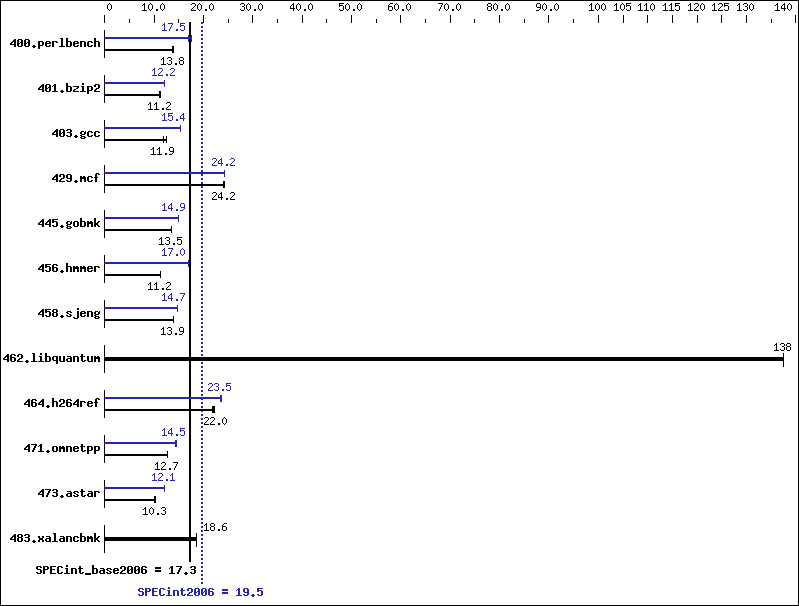

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 705 | 13.9 | 711 | 13.7 | 706 | 13.8 | 558 | 17.5 | 557 | 17.5 | 575 | 17.0 |
| 401.bzip2 | 858 | 11.2 | 855 | 11.3 | 862 | 11.2 | 794 | 12.2 | 793 | 12.2 | 793 | 12.2 |
| 403.gcc | 646 | 12.5 | 677 | 11.9 | 678 | 11.9 | 522 | 15.4 | 522 | 15.4 | 522 | 15.4 |
| 429.mcf | 377 | 24.2 | 378 | 24.2 | 377 | 24.2 | 375 | 24.3 | 377 | 24.2 | 376 | 24.2 |
| 445.gobmk | 775 | 13.5 | 776 | 13.5 | 776 | 13.5 | 704 | 14.9 | 704 | 14.9 | 704 | 14.9 |
| 456.hmmer | 831 | 11.2 | 832 | 11.2 | 832 | 11.2 | 550 | 17.0 | 551 | 16.9 | 550 | 17.0 |
| 458.sjeng | 870 | 13.9 | 871 | 13.9 | 869 | 13.9 | 824 | 14.7 | 825 | 14.7 | 826 | 14.6 |
| 462.libquantum | 151 | 137 | 151 | 138 | 151 | 138 | 151 | 137 | 151 | 138 | 151 | 138 |
| 464.h264ref | 1006 | 22.0 | 1010 | 21.9 | 999 | 22.2 | 943 | 23.5 | 940 | 23.5 | 938 | 23.6 |
| 471.omnetpp | 490 | 12.8 | 491 | 12.7 | 494 | 12.7 | 433 | 14.4 | 432 | 14.5 | 432 | 14.5 |
| 473.astar | 696 | 10.1 | 679 | 10.3 | 679 | 10.3 | 582 | 12.1 | 582 | 12.1 | 580 | 12.1 |
| 483.xalancbmk | 370 | 18.6 | 371 | 18.6 | 370 | 18.6 | 370 | 18.6 | 371 | 18.6 | 370 | 18.6 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
