SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4600 M2 (AMD Opteron 8384 2.7GHz)

CPU2006 license: 6 Test date: Dec-2008
Test sponsor: Sun Microsystems Hardware Availability: Jan-2009
Tested by: Sun Microsystems Software Availability: Nov-2008

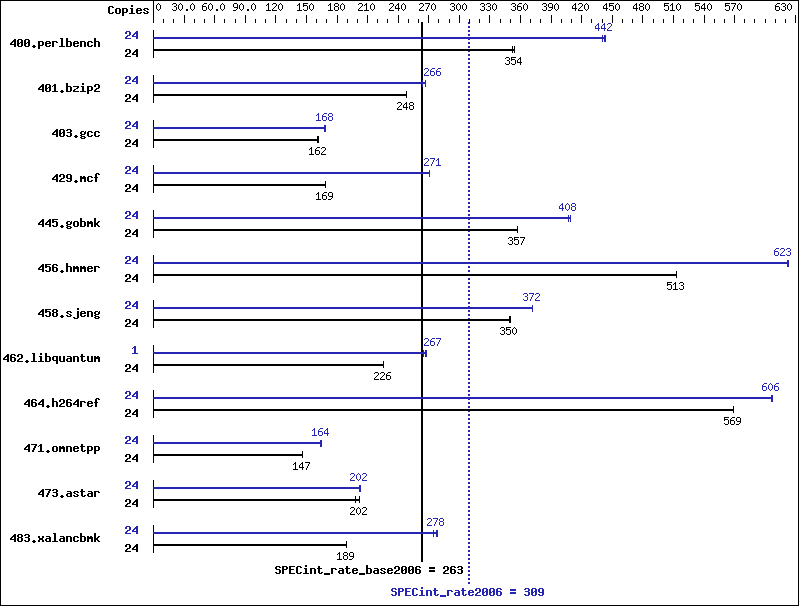

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8384
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 24 cores, 6 chips, 4 cores/chip
CPU(s) orderable: 2, 4, 6, 8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 96 GB (48 x 2 GB, DDR2-667 CL5 ECC Registered
SDRAM)
Disk Subsystem: 2 x SAS, 72 GB, 10 K RPM
Other Hardware: 2 x Filler Modules
Software
Operating System: OpenSolaris 2008.05
Compiler: Sun Studio Express 11/08
Auto Parallel: Yes
File System: Benchmark on ufs, OS on zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 7.4 32-bit Library for Solaris

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 24 665 352 662 354 662 354 24 529   443 530   442 533   440
401.bzip2 24 933 248 933 248 931 249 24 869   266 877   264 869   267
403.gcc 24 1196 162 1201 161 1196 162 24 1147   168 1144   169 1151   168
429.mcf 24 1298 169 1298 169 1298 169 24 809   271 808   271 809   270
445.gobmk 24 705 357 705 357 705 357 24 618   407 616   409 618   408
456.hmmer 24 437 513 437 513 436 513 24 360   622 359   623 360   623
458.sjeng 24 831 349 830 350 831 350 24 781   372 781   372 781   372
462.libquantum 24 2202 226 2205 226 2202 226 1 77.6 267 78.2 265 77.4 268
464.h264ref 24 934 569 934 569 933 569 24 876   606 876   606 875   607
471.omnetpp 24 1024 147 1024 146 1024 147 24 913   164 913   164 912   164
473.astar 24 849 198 834 202 833 202 24 831   203 836   202 835   202
483.xalancbmk 24 875 189 875 189 875 189 24 602   275 595   278 596   278

Submit Notes

The config file option 'submit' was used.
 Processes were bound to cores using "submit" and "pbind".

Operating System Notes


 export OMP_NUM_THREADS=24
 export SUNW_MP_PROCBIND=TRUE
 export SUNW_MP_THR_IDLE=SPIN
 export OMP_NESTED=FALSE
 export STACKSIZE=16384
 export OMP_DYNAMIC=TRUE
 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
    autoup=900
    lpg_alloc_prefer=1

Platform Notes


 Default BIOS settings was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xprefetch   -m64

C++ benchmarks:

 -fast   -xipo=2   -xvector=simd   -m64   -xpagesize=2m   -xprefetch=no   -library=stlport4

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -lbsdmalloc   -xvector=simd   -xpagesize=2M   -xprefetch=no   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -xalias_level=std
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=strong   -lumem   -xpagesize=2M   -xprefetch=no   -Wu,-fsimple=3
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=std   -xprefetch=no   -xpagesize=2M   -m64   -Wu,-fsimple=3
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=strict   -xprefetch=no%auto   -lbsdmalloc   -Wu,-fsimple=3
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xrestrict   -xalias_level=strong   -xdepend   -xpagesize=2m   -lmvec   -Wu,-fsimple=3
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -Wu,-fsimple=3
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xvector=simd   -m64   -xrestrict   -xpagesize=2M   -xprefetch=no   -xalias_level=std   -Wu,-fsimple=3
462.libquantum:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xreduction   -xipo=2   -xvector=simd   -m64   -xautopar   -xunroll=8   -lmtmalloc   -Wu,-fsimple=3   -xalias_level=std
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=std   -Wu,-fsimple=3

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xvector=simd   -lumem   -xpagesize=2M   -xprefetch=no   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -xalias_level=compatible   -Qoption ube -fsimple=3   -qoption ube -sched_first_pass=0   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2m   -M /usr/lib/ld/map.bssalign   -xprefetch=no   -xvector=simd   -xdepend   -xalias_level=simple   -Qoption ube -fsimple=3   -library=stlport4
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -Qoption ube -fsimple=3   -xvector=simd   -lumem   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -library=stlport4

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090713.00.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:35:34 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 December 2008.
