| CPU2006 license: | 19 | Test date: | Jul-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Limited | Hardware Availability: | Jul-2008 |
| Tested by: | Sun Microsystems | Software Availability: | Jul-2008 |
| Hardware | |
|---|---|
| CPU Name: | SPARC64 VII |
| CPU Characteristics: | |
| CPU MHz: | 2520 |
| FPU: | Integrated |
| CPU(s) enabled: | 64 cores, 16 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 to 4 CMUs; each CMU contains 2 or 4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 256 GB (128 x 2 GB) |
| Disk Subsystem: | Fujitsu 73 GB 10000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Solaris 10 5/08 with Patch 137111-03 |
| Compiler: | Sun Studio 12 with patches 124867-06, 124861-07, 124863-05 (see patch information below) |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

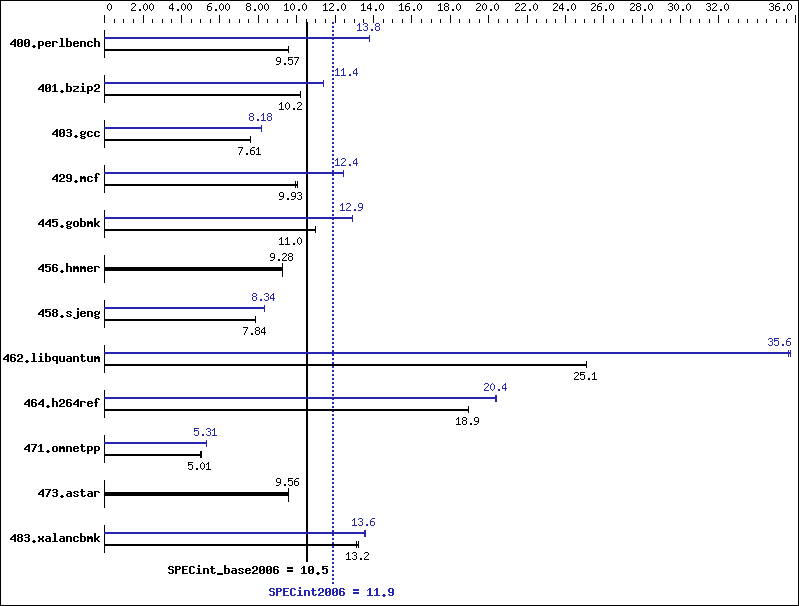

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 1021 | 9.57 | 1021 | 9.57 | 1021 | 9.57 | 709 | 13.8 | 708 | 13.8 | 709 | 13.8 |
| 401.bzip2 | 944 | 10.2 | 946 | 10.2 | 944 | 10.2 | 848 | 11.4 | 848 | 11.4 | 848 | 11.4 |
| 403.gcc | 1060 | 7.59 | 1058 | 7.61 | 1058 | 7.61 | 984 | 8.18 | 984 | 8.18 | 984 | 8.18 |
| 429.mcf | 908 | 10.0 | 918 | 9.93 | 919 | 9.93 | 734 | 12.4 | 734 | 12.4 | 734 | 12.4 |
| 445.gobmk | 956 | 11.0 | 955 | 11.0 | 956 | 11.0 | 812 | 12.9 | 812 | 12.9 | 812 | 12.9 |
| 456.hmmer | 1006 | 9.27 | 1006 | 9.28 | 1006 | 9.28 | 1006 | 9.27 | 1006 | 9.28 | 1006 | 9.28 |
| 458.sjeng | 1543 | 7.84 | 1543 | 7.84 | 1541 | 7.85 | 1451 | 8.34 | 1451 | 8.34 | 1452 | 8.33 |
| 462.libquantum | 826 | 25.1 | 826 | 25.1 | 826 | 25.1 | 580 | 35.7 | 581 | 35.6 | 582 | 35.6 |
| 464.h264ref | 1169 | 18.9 | 1168 | 18.9 | 1168 | 18.9 | 1086 | 20.4 | 1086 | 20.4 | 1085 | 20.4 |
| 471.omnetpp | 1243 | 5.03 | 1247 | 5.01 | 1247 | 5.01 | 1177 | 5.31 | 1177 | 5.31 | 1180 | 5.30 |
| 473.astar | 735 | 9.56 | 734 | 9.56 | 734 | 9.56 | 735 | 9.56 | 734 | 9.56 | 734 | 9.56 |
| 483.xalancbmk | 522 | 13.2 | 526 | 13.1 | 522 | 13.2 | 510 | 13.5 | 507 | 13.6 | 509 | 13.6 |
Compiler Invocation Notes
Sun Studio compiler patches are available at
http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
Submit Notes
Processes were assigned to specific processors using 'pbind' commands. The config file option 'submit' was used, along with a processor to use in the 'BIND' variable, to generate the pbind commands. (For details, please see the config file.)
Operating System Notes
System Tunables (/etc/system parameters):
tune_t_fsflushr=10
Controls how many seconds elapse between runs of the
page flush daemon, fsflush.
autoup=300
Causes pages older than the listed number of seconds to
be written by fsflush.
bufhwm=3000
Memory byte limit for caching I/O buffers
segmap_percent=3
Set maximum percent memory for file system cache
lpg_alloc_prefer=1
Set lgroup page allocation to strongly prefer local pages
Other System Settings:
The webconsole service was turned off using
svcadm disable webconsole
Platform Notes
Memory is 8-way interleaved by filling all slots with the same capacity DIMMs.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=1 -xalias_level=std -ll2amm |
C++ benchmarks:
| -xdepend -library=stlport4 -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=2 -xalias_level=compatible -lfast |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xdepend -library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xpagesize=4M -xalias_level=compatible -xipo=2 -xprefetch_level=2 -Qoption cg -Qlp-av=0 -fma=fused -lfast |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xdepend -library=stlport4 -fast -xpagesize=4M -xalias_level=compatible -xipo=2 -xprefetch=no -fma=fused -lfast |
