| CPU2006 license: | 11 | Test date: | Apr-2008 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3113 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB DDR2-5300 ECC) |
| Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

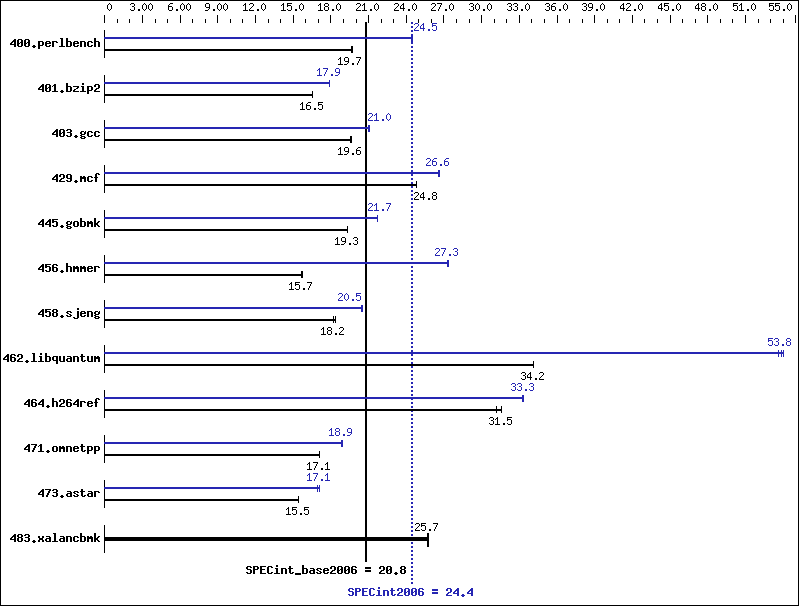

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 496 | 19.7 | 498 | 19.6 | 495 | 19.7 | 399 | 24.5 | 400 | 24.4 | 399 | 24.5 |
| 401.bzip2 | 582 | 16.6 | 584 | 16.5 | 584 | 16.5 | 539 | 17.9 | 539 | 17.9 | 539 | 17.9 |
| 403.gcc | 412 | 19.6 | 411 | 19.6 | 411 | 19.6 | 384 | 21.0 | 382 | 21.1 | 383 | 21.0 |
| 429.mcf | 368 | 24.8 | 367 | 24.8 | 367 | 24.8 | 343 | 26.6 | 343 | 26.6 | 343 | 26.6 |
| 445.gobmk | 543 | 19.3 | 543 | 19.3 | 543 | 19.3 | 483 | 21.7 | 482 | 21.7 | 483 | 21.7 |
| 456.hmmer | 593 | 15.7 | 595 | 15.7 | 594 | 15.7 | 342 | 27.3 | 342 | 27.3 | 341 | 27.3 |
| 458.sjeng | 664 | 18.2 | 665 | 18.2 | 660 | 18.3 | 591 | 20.5 | 590 | 20.5 | 592 | 20.4 |
| 462.libquantum | 607 | 34.2 | 607 | 34.1 | 607 | 34.2 | 384 | 54.0 | 386 | 53.6 | 385 | 53.8 |
| 464.h264ref | 710 | 31.2 | 701 | 31.6 | 701 | 31.5 | 663 | 33.4 | 665 | 33.3 | 665 | 33.3 |
| 471.omnetpp | 366 | 17.1 | 366 | 17.1 | 366 | 17.1 | 331 | 18.9 | 331 | 18.9 | 332 | 18.8 |
| 473.astar | 454 | 15.5 | 455 | 15.4 | 454 | 15.5 | 411 | 17.1 | 411 | 17.1 | 415 | 16.9 |
| 483.xalancbmk | 268 | 25.7 | 268 | 25.7 | 269 | 25.7 | 268 | 25.7 | 268 | 25.7 | 269 | 25.7 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Enabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to null
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
