SPEC® CINT2006 Result

Fujitsu Limited

PRIMEQUEST 540A

SPECint®_rate2006 = 407

SPECint_rate_base2006 = 366

CPU2006 license:	19	Test date:	Mar-2008
Test sponsor:	Fujitsu Limited	Hardware Availability:	May-2008
Tested by:	Fujitsu Limited	Software Availability:	Feb-2008

Hardware
CPU Name:	Dual-Core Intel Itanium 9150M
CPU Characteristics:	1.66GHz/24MB, 667MHz FSB
CPU MHz:	1667
FPU:	Integrated
CPU(s) enabled:	32 cores, 16 chips, 2 cores/chip
CPU(s) orderable:	2-16 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	256 GB (128 x 2GB DDR2-667 DIMMs)
Disk Subsystem:	2 x 147GB (SCSI Ultra 320, 10000rpm) No RAID configuration
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux 5.1, Kernel 2.6.18-53.el5 on an ia64
Compiler:	Intel C++ Compiler for Linux 10.1 (Build 20080112)
Auto Parallel:	No
File System:	ext2
System State:	Runlevel 1 (single user mode)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill Smartheap 8.0

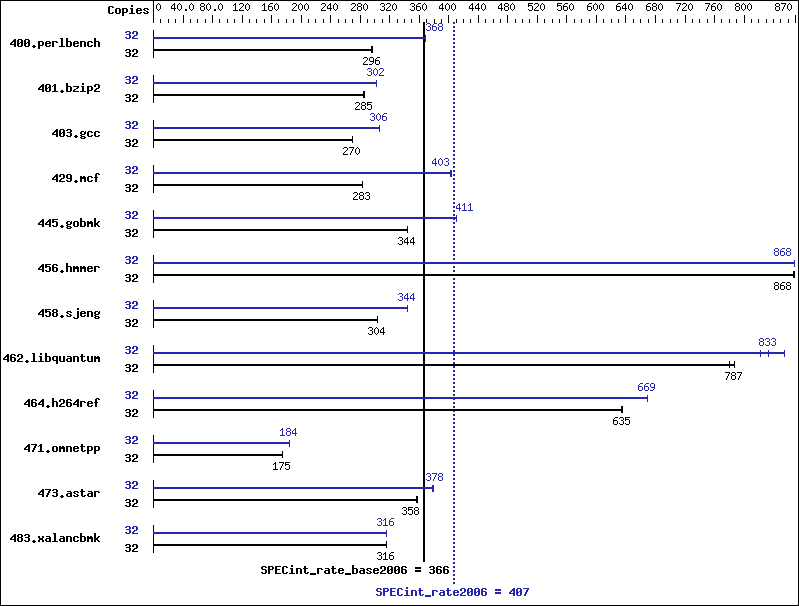

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	32	1055	296	1057	296	1056	296	32	849	368	848	369	849	368
401.bzip2	32	1082	285	1081	286	1083	285	32	1021	302	1023	302	1021	302
403.gcc	32	956	270	955	270	955	270	32	840	307	841	306	841	306
429.mcf	32	1030	283	1030	283	1029	283	32	724	403	723	403	725	403
445.gobmk	32	975	344	975	344	975	344	32	817	411	817	411	817	411
456.hmmer	32	344	868	344	868	345	867	32	344	868	344	868	344	868
458.sjeng	32	1275	304	1275	304	1275	304	32	1126	344	1127	344	1127	344
462.libquantum	32	843	787	850	780	843	787	32	807	822	776	854	796	833
464.h264ref	32	1116	635	1116	635	1116	635	32	1058	669	1059	669	1058	669
471.omnetpp	32	1145	175	1145	175	1145	175	32	1087	184	1087	184	1087	184
473.astar	32	628	358	631	356	628	358	32	595	378	592	379	594	378
483.xalancbmk	32	699	316	698	316	699	316	32	701	315	699	316	699	316

General Notes


 Processes are bound to CPUs using taskset.

 limit stacksize unlimited

 Memory system is in "Non Mirror Mode".

 The following 2 environment variables were set
     MALLOC_MMAP_MAX_=0
     MALLOC_TRIM_THRESHOLD_=-1
 This will cause use of sbrk() calls instead of
 mmap() calls to get memory from the system.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
471.omnetpp:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi_alias -IPF_fp_relaxed -opt-mod-versioning -unroll-aggressive -inline-factor=150
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -ansi-alias -fno-alias -auto-ilp32 -opt-prefetch-next-iteration
403.gcc:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi_alias -auto-ilp32 -IPF_fp_relaxed -no-opt-prefetch-initial-values -opt-prefetch-next-iteration -unroll-aggressive
429.mcf:	-fast -IPF-fp-relaxed -auto-ilp32 -ansi-alias -opt-prefetch-next-iteration
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed -auto-ilp32 -no-opt-prefetch-initial-values -opt-prefetch-next-iteration -ansi-alias
456.hmmer:	-fast -IPF_fp_relaxed -auto-ilp32 -no-opt-prefetch-initial-values
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed -unroll-aggressive -no-prefetch -opt-prefetch-next-iteration
462.libquantum:	-fast -IPF-fp-relaxed -auto-ilp32 -ansi-alias -opt-mod-versioning -no-opt-prefetch-initial-values -opt-prefetch-issue-excl-hint
464.h264ref:	-fast -IPF-fp-relaxed -ansi-alias -fno-alias -auto-ilp32 -no-prefetch -inline-factor=150 -opt-mod-versioning -unroll-aggressive -opt-prefetch-next-iteration

C++ benchmarks:

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -ansi-alias -fno-alias -inline-max-per-routine=50 -inline-factor=150 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:	-fast -IPF-fp-relaxed -no-prefetch -ansi-alias -fno-alias -inline-max-size=5000 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:	-fast -IPF-fp-relaxed -unroll-aggressive -ansi-alias -no-opt-prefetch-initial-values -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.xml.
