| CPU2006 license: | 13 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Quad Q9300 |
| CPU Characteristics: | 2.50 GHz, 1333 FSB |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB Micron DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

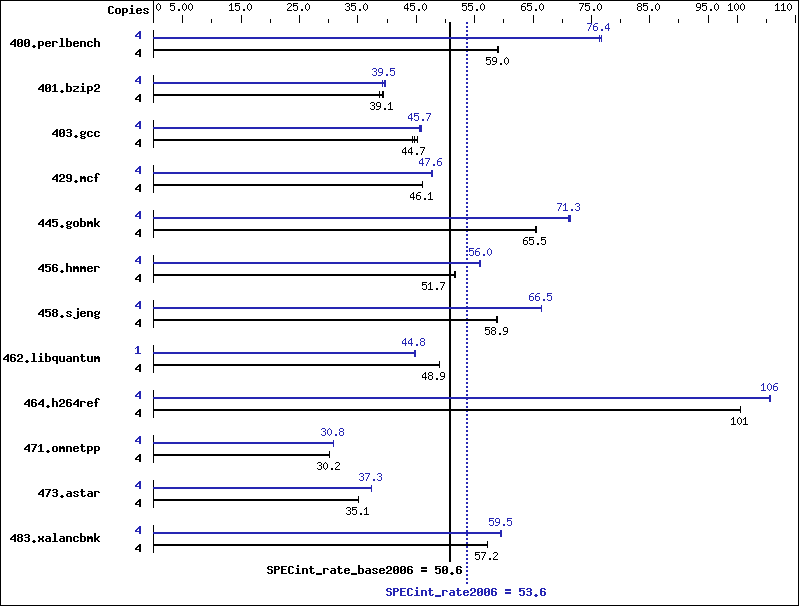

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 663 | 59.0 | 662 | 59.0 | 661 | 59.1 | 4 | 509 | 76.7 | 512 | 76.3 | 511 | 76.4 |
| 401.bzip2 | 4 | 986 | 39.1 | 979 | 39.4 | 995 | 38.8 | 4 | 976 | 39.5 | 986 | 39.2 | 972 | 39.7 |
| 403.gcc | 4 | 726 | 44.3 | 712 | 45.2 | 720 | 44.7 | 4 | 707 | 45.5 | 705 | 45.7 | 703 | 45.8 |
| 429.mcf | 4 | 791 | 46.1 | 793 | 46.0 | 791 | 46.1 | 4 | 766 | 47.6 | 766 | 47.6 | 764 | 47.7 |
| 445.gobmk | 4 | 640 | 65.6 | 641 | 65.4 | 641 | 65.5 | 4 | 588 | 71.4 | 590 | 71.1 | 588 | 71.3 |
| 456.hmmer | 4 | 722 | 51.7 | 723 | 51.6 | 722 | 51.7 | 4 | 667 | 56.0 | 667 | 56.0 | 668 | 55.9 |
| 458.sjeng | 4 | 821 | 58.9 | 823 | 58.8 | 820 | 59.0 | 4 | 728 | 66.5 | 727 | 66.5 | 728 | 66.5 |
| 462.libquantum | 4 | 1695 | 48.9 | 1693 | 49.0 | 1694 | 48.9 | 1 | 462 | 44.8 | 463 | 44.8 | 464 | 44.6 |
| 464.h264ref | 4 | 881 | 101 | 880 | 101 | 880 | 101 | 4 | 838 | 106 | 838 | 106 | 838 | 106 |
| 471.omnetpp | 4 | 829 | 30.2 | 828 | 30.2 | 828 | 30.2 | 4 | 811 | 30.8 | 811 | 30.8 | 811 | 30.8 |
| 473.astar | 4 | 801 | 35.0 | 801 | 35.1 | 800 | 35.1 | 4 | 752 | 37.3 | 752 | 37.3 | 752 | 37.3 |
| 483.xalancbmk | 4 | 483 | 57.1 | 482 | 57.2 | 483 | 57.2 | 4 | 463 | 59.6 | 465 | 59.4 | 464 | 59.5 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 03/2008: http://www.intel.com/products/motherboard/DQ35JO/index.htm The system bus runs at 1333 MHz System was configured with Asus EN8800GTX discrete graphics card Binaries were built on Windows Vista Ultimate (32-bit) The following VS 2005 SP1 updates were applied: KB926601 and KB932232 OMP_NUM_THREADS was set to number of logical processors as seen by the OS KMP_AFFINITY was set to physical,0 submit was disabled for 462.libquantum at peak.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 |
| 429.mcf: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias -Qopt-multi-version-aggressive /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 |
| 462.libquantum: | -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always -Qparallel -Qpar-runtime-control /F512000000 |
| 464.h264ref: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=block -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=routine -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
