SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Asus P5E3 Deluxe (Intel Core 2 Extreme QX6850)

CPU2006 license: 13 Test date: Nov-2007
Test sponsor: Intel Corporation Hardware Availability: Nov-2007
Tested by: Intel Corporation Software Availability: Nov-2007

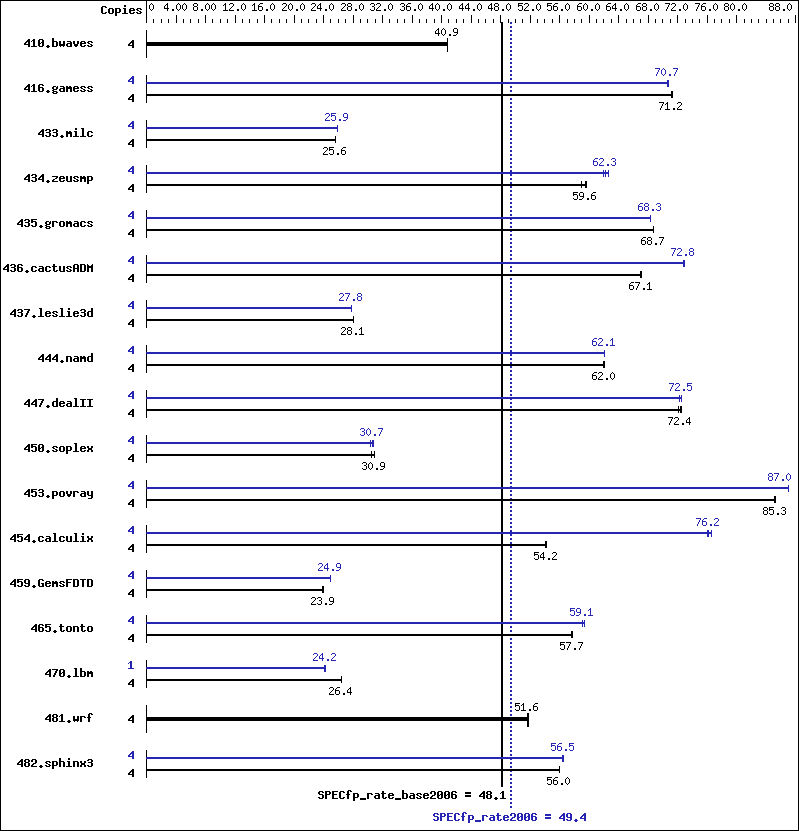

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX6850
CPU Characteristics: 3.00 GHz 1333 MHz FSB
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1GB Corsair TWIN3X2048-1333C9DHX
DDR3-1333 CL9)
Disk Subsystem: Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista64 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.1
Build 20070913 Package ID: w_cc_p_10.1.011
Intel Fortran Compiler for IA32 version 10.1
Build 20070913 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1331 40.9 1331 40.8 1330 40.9 4 1331 40.9 1331 40.8 1330 40.9
416.gamess 4 1100 71.2 1100 71.2 1100 71.2 4 1108 70.7 1108 70.7 1109 70.6
433.milc 4 1433 25.6 1433 25.6 1432 25.6 4 1420 25.9 1419 25.9 1418 25.9
434.zeusmp 4 618 58.9 611 59.6 610 59.7 4 588 61.9 581 62.6 585 62.3
435.gromacs 4 415 68.8 416 68.7 416 68.7 4 418 68.3 418 68.3 418 68.3
436.cactusADM 4 714 67.0 713 67.1 713 67.1 4 657 72.8 657 72.7 656 72.9
437.leslie3d 4 1339 28.1 1338 28.1 1338 28.1 4 1354 27.8 1354 27.8 1352 27.8
444.namd 4 517 62.0 517 62.1 518 62.0 4 517 62.1 516 62.1 517 62.1
447.dealII 4 632 72.4 635 72.1 631 72.6 4 633 72.3 631 72.5 631 72.5
450.soplex 4 1079 30.9 1094 30.5 1080 30.9 4 1087 30.7 1098 30.4 1086 30.7
453.povray 4 249 85.3 250 85.2 250 85.3 4 244 87.0 245 87.0 245 87.0
454.calculix 4 610 54.1 609 54.2 609 54.2 4 433 76.2 434 76.1 431 76.6
459.GemsFDTD 4 1774 23.9 1771 24.0 1778 23.9 4 1705 24.9 1703 24.9 1702 24.9
465.tonto 4 682 57.7 682 57.7 684 57.6 4 666 59.1 666 59.1 663 59.4
470.lbm 4 2083 26.4 2083 26.4 2083 26.4 1 566 24.3 567 24.2 569 24.2
481.wrf 4 864 51.7 865 51.6 865 51.6 4 864 51.7 865 51.6 865 51.6
482.sphinx3 4 1392 56.0 1391 56.0 1391 56.0 4 1381 56.4 1381 56.5 1379 56.5

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 11/2007:
 http://www.asus.com/products.aspx?l1=3&l2=11&l3=572&l4=0&model=1872&modelmenu=1
 The system bus runs at 1333 MHz
 System was configured with Asus EN8800GTX discrete graphics card
 Binaries were built on Windows Vista32
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F1000000000

C++ benchmarks:

 -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000

Benchmarks using both Fortran and C:

 -fast   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -Qunroll2   -Oa   /F1000000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000
482.sphinx3:  -fast   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -fast   -Oa   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -fast   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -fast   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000
437.leslie3d:  -fast   -Qprefetch   /F1000000000
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   /F1000000000
465.tonto:  -fast   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Oa   -Qprefetch   /F1000000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   /F1000000000
454.calculix:  -fast   -Qunroll-aggressive   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.xml.
