| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 3.00 GHz, 4 MB L2, 1333 MHz bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x146.5 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

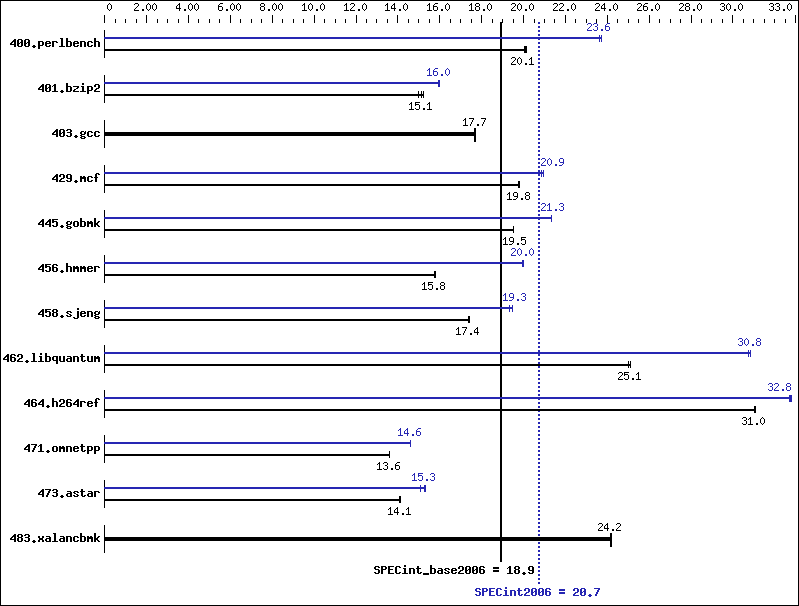

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 486 | 20.1 | 485 | 20.1 | 487 | 20.1 | 413 | 23.6 | 411 | 23.7 | 413 | 23.6 |
| 401.bzip2 | 645 | 15.0 | 635 | 15.2 | 639 | 15.1 | 604 | 16.0 | 604 | 16.0 | 606 | 15.9 |
| 403.gcc | 455 | 17.7 | 455 | 17.7 | 454 | 17.7 | 455 | 17.7 | 455 | 17.7 | 454 | 17.7 |
| 429.mcf | 460 | 19.8 | 461 | 19.8 | 461 | 19.8 | 438 | 20.8 | 437 | 20.9 | 435 | 20.9 |
| 445.gobmk | 537 | 19.5 | 537 | 19.5 | 537 | 19.5 | 492 | 21.3 | 492 | 21.3 | 492 | 21.3 |
| 456.hmmer | 592 | 15.8 | 591 | 15.8 | 592 | 15.8 | 466 | 20.0 | 468 | 19.9 | 467 | 20.0 |
| 458.sjeng | 696 | 17.4 | 695 | 17.4 | 696 | 17.4 | 625 | 19.3 | 622 | 19.5 | 627 | 19.3 |
| 462.libquantum | 825 | 25.1 | 829 | 25.0 | 825 | 25.1 | 673 | 30.8 | 672 | 30.8 | 672 | 30.8 |
| 464.h264ref | 712 | 31.1 | 713 | 31.0 | 713 | 31.0 | 676 | 32.7 | 676 | 32.8 | 674 | 32.8 |
| 471.omnetpp | 460 | 13.6 | 460 | 13.6 | 460 | 13.6 | 428 | 14.6 | 427 | 14.6 | 428 | 14.6 |
| 473.astar | 497 | 14.1 | 498 | 14.1 | 499 | 14.1 | 460 | 15.3 | 466 | 15.1 | 459 | 15.3 |
| 483.xalancbmk | 286 | 24.2 | 285 | 24.2 | 286 | 24.2 | 286 | 24.2 | 285 | 24.2 | 286 | 24.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
