SPEC® CFP2006 Result

NEC Corporation

Express5800/120Ri-2
(Intel Xeon processor 5130)

SPECfp®_rate2006 = 36.9

SPECfp_rate_base2006 = 35.8

CPU2006 license:	9006	Test date:	Oct-2007
Test sponsor:	NEC Corporation	Hardware Availability:	May-2007
Tested by:	NEC Corporation	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Xeon 5130
CPU Characteristics:	2.00 GHz, 4 MB L2, 1333 MHz bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x146.5 GB SAS, 15000RPM
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package-ID: l_cc_c_9.1.049 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package ID: l_fc_c_9.1.045
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

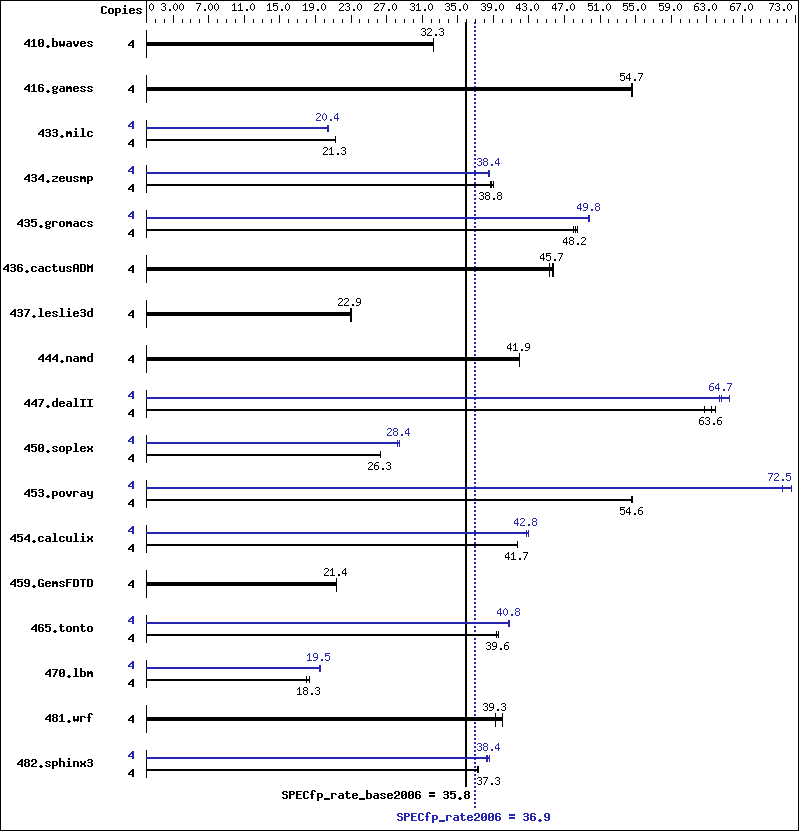

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1683	32.3	1683	32.3	1683	32.3	4	1683	32.3	1683	32.3	1683	32.3
416.gamess	4	1433	54.7	1436	54.6	1432	54.7	4	1433	54.7	1436	54.6	1432	54.7
433.milc	4	1724	21.3	1724	21.3	1724	21.3	4	1800	20.4	1799	20.4	1799	20.4
434.zeusmp	4	934	39.0	939	38.8	940	38.7	4	947	38.4	947	38.4	945	38.5
435.gromacs	4	593	48.2	589	48.5	595	48.0	4	575	49.7	573	49.8	573	49.9
436.cactusADM	4	1056	45.3	1046	45.7	1045	45.7	4	1056	45.3	1046	45.7	1045	45.7
437.leslie3d	4	1632	23.0	1640	22.9	1641	22.9	4	1632	23.0	1640	22.9	1641	22.9
444.namd	4	766	41.9	765	41.9	765	41.9	4	766	41.9	765	41.9	765	41.9
447.dealII	4	720	63.6	729	62.8	716	63.9	4	707	64.7	710	64.4	698	65.5
450.soplex	4	1269	26.3	1268	26.3	1269	26.3	4	1172	28.5	1174	28.4	1181	28.2
453.povray	4	389	54.6	390	54.6	390	54.5	4	294	72.5	293	72.6	298	71.5
454.calculix	4	792	41.7	792	41.7	792	41.7	4	768	43.0	772	42.8	773	42.7
459.GemsFDTD	4	1987	21.4	1985	21.4	1988	21.3	4	1987	21.4	1985	21.4	1988	21.3
465.tonto	4	993	39.6	1000	39.3	994	39.6	4	967	40.7	963	40.9	965	40.8
470.lbm	4	3004	18.3	3047	18.0	3003	18.3	4	2816	19.5	2817	19.5	2819	19.5
481.wrf	4	1139	39.2	1117	40.0	1138	39.3	4	1139	39.2	1117	40.0	1138	39.3
482.sphinx3	4	2092	37.3	2089	37.3	2091	37.3	4	2020	38.6	2032	38.4	2040	38.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 The system bus runs at 1333 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 The Express5800/120Rg-1(Intel Xeon Prosessor 5130) and
 the Express5800/120Ri-2(Intel Xeon Prosessor 5130) models are electronically equivalent.
 The results have been measured on a Express5800/120Ri-2(Intel Xeon Prosessor 5130) model.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
