| CPU2006 license: | 9006 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4 MB L2, 1066 MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x36.3 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

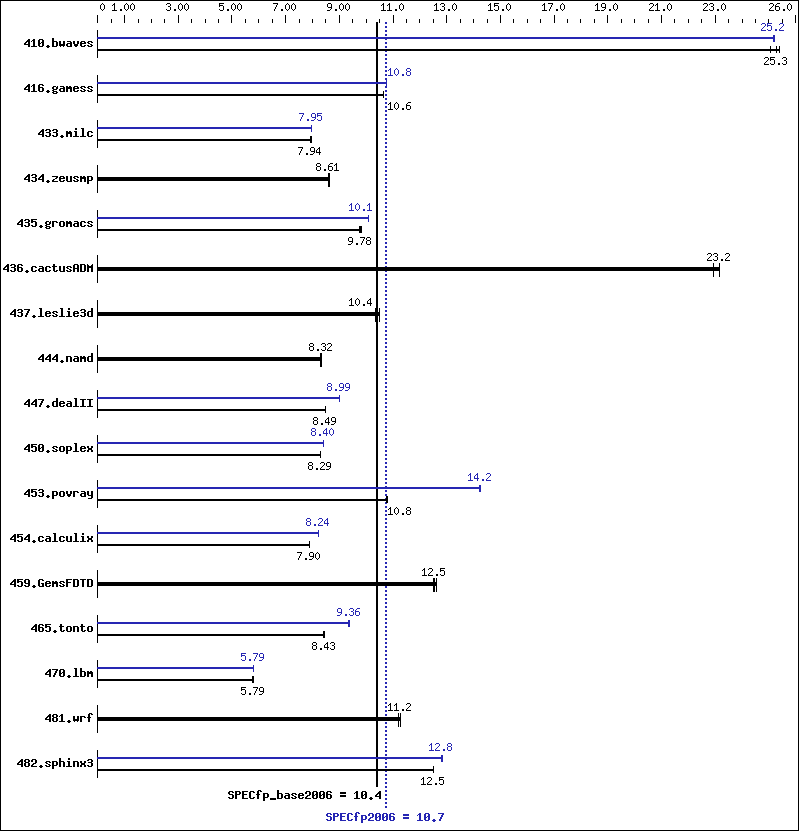

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 537 | 25.3 | 536 | 25.4 | 543 | 25.0 | 539 | 25.2 | 540 | 25.2 | 540 | 25.2 |
| 416.gamess | 1841 | 10.6 | 1838 | 10.7 | 1841 | 10.6 | 1821 | 10.8 | 1821 | 10.8 | 1822 | 10.7 |
| 433.milc | 1157 | 7.94 | 1153 | 7.96 | 1157 | 7.93 | 1155 | 7.95 | 1155 | 7.95 | 1155 | 7.95 |
| 434.zeusmp | 1057 | 8.61 | 1058 | 8.61 | 1055 | 8.63 | 1057 | 8.61 | 1058 | 8.61 | 1055 | 8.63 |
| 435.gromacs | 730 | 9.78 | 727 | 9.82 | 732 | 9.76 | 707 | 10.1 | 707 | 10.1 | 707 | 10.1 |
| 436.cactusADM | 516 | 23.2 | 516 | 23.2 | 521 | 22.9 | 516 | 23.2 | 516 | 23.2 | 521 | 22.9 |
| 437.leslie3d | 897 | 10.5 | 901 | 10.4 | 907 | 10.4 | 897 | 10.5 | 901 | 10.4 | 907 | 10.4 |
| 444.namd | 964 | 8.32 | 968 | 8.29 | 964 | 8.32 | 964 | 8.32 | 968 | 8.29 | 964 | 8.32 |
| 447.dealII | 1348 | 8.49 | 1348 | 8.49 | 1348 | 8.48 | 1272 | 8.99 | 1272 | 8.99 | 1272 | 8.99 |
| 450.soplex | 1006 | 8.29 | 1005 | 8.29 | 1006 | 8.29 | 992 | 8.40 | 992 | 8.40 | 992 | 8.40 |
| 453.povray | 495 | 10.7 | 493 | 10.8 | 493 | 10.8 | 374 | 14.2 | 373 | 14.2 | 373 | 14.3 |
| 454.calculix | 1046 | 7.88 | 1044 | 7.90 | 1044 | 7.90 | 1001 | 8.24 | 1002 | 8.24 | 1002 | 8.24 |
| 459.GemsFDTD | 840 | 12.6 | 846 | 12.5 | 848 | 12.5 | 840 | 12.6 | 846 | 12.5 | 848 | 12.5 |
| 465.tonto | 1164 | 8.45 | 1168 | 8.43 | 1168 | 8.43 | 1051 | 9.37 | 1053 | 9.35 | 1051 | 9.36 |
| 470.lbm | 2380 | 5.77 | 2373 | 5.79 | 2373 | 5.79 | 2375 | 5.79 | 2375 | 5.79 | 2375 | 5.79 |
| 481.wrf | 990 | 11.3 | 997 | 11.2 | 996 | 11.2 | 990 | 11.3 | 997 | 11.2 | 996 | 11.2 |
| 482.sphinx3 | 1559 | 12.5 | 1559 | 12.5 | 1559 | 12.5 | 1520 | 12.8 | 1520 | 12.8 | 1520 | 12.8 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
