| CPU2006 license: | 20 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Aug-2007 |
| Tested by: | Bull SAS | Software Availability: | Aug-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 3.00 GHz, 4 MB L2, 1333 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070809 Package ID: l_cc_p_10.0.026 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

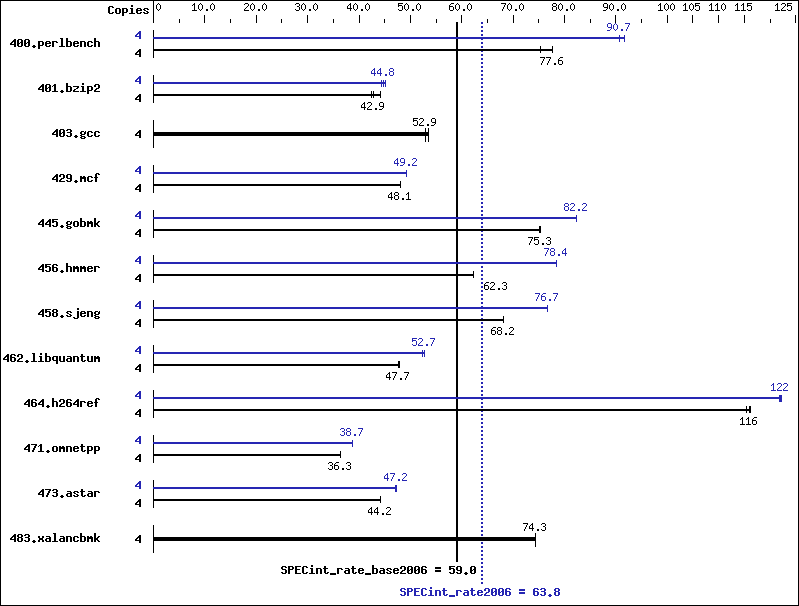

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 518 | 75.4 | 504 | 77.6 | 504 | 77.6 | 4 | 431 | 90.7 | 431 | 90.7 | 426 | 91.7 |
| 401.bzip2 | 4 | 911 | 42.4 | 900 | 42.9 | 873 | 44.2 | 4 | 872 | 44.3 | 856 | 45.1 | 862 | 44.8 |
| 403.gcc | 4 | 602 | 53.5 | 609 | 52.9 | 609 | 52.9 | 4 | 602 | 53.5 | 609 | 52.9 | 609 | 52.9 |
| 429.mcf | 4 | 758 | 48.1 | 759 | 48.1 | 757 | 48.2 | 4 | 742 | 49.2 | 742 | 49.1 | 742 | 49.2 |
| 445.gobmk | 4 | 557 | 75.3 | 558 | 75.2 | 557 | 75.3 | 4 | 510 | 82.2 | 510 | 82.2 | 510 | 82.3 |
| 456.hmmer | 4 | 599 | 62.3 | 599 | 62.3 | 599 | 62.3 | 4 | 476 | 78.4 | 476 | 78.4 | 476 | 78.4 |
| 458.sjeng | 4 | 710 | 68.2 | 710 | 68.2 | 710 | 68.2 | 4 | 631 | 76.7 | 631 | 76.7 | 631 | 76.7 |
| 462.libquantum | 4 | 1734 | 47.8 | 1739 | 47.7 | 1736 | 47.7 | 4 | 1573 | 52.7 | 1570 | 52.8 | 1582 | 52.4 |
| 464.h264ref | 4 | 767 | 115 | 763 | 116 | 762 | 116 | 4 | 725 | 122 | 727 | 122 | 725 | 122 |
| 471.omnetpp | 4 | 688 | 36.3 | 688 | 36.3 | 688 | 36.3 | 4 | 647 | 38.7 | 647 | 38.7 | 647 | 38.6 |
| 473.astar | 4 | 636 | 44.1 | 635 | 44.2 | 635 | 44.2 | 4 | 595 | 47.2 | 595 | 47.2 | 594 | 47.2 |
| 483.xalancbmk | 4 | 371 | 74.4 | 371 | 74.3 | 371 | 74.3 | 4 | 371 | 74.4 | 371 | 74.3 | 371 | 74.3 |
General Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' was used to bind processes to CPUs The R422 is built with two identical (half size) motherboards. Only one of the two motherboards was powered on during the test run. All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/tmp/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/tmp/spec/cpu2006/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
