SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL580 G4
(3.0 GHz, Intel Xeon processor 7120M)

CPU2006 license: 3 Test date: Aug-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Aug-2006
Tested by: Hewlett-Packard Company Software Availability: May-2007

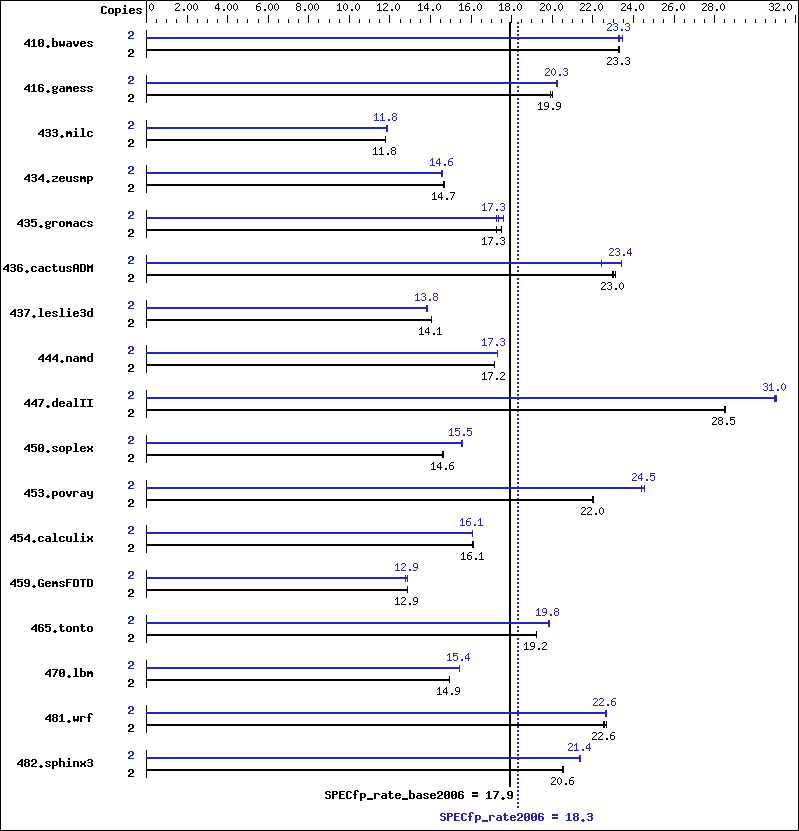

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7120M
CPU Characteristics: 3.0 GHz, 800 MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R)
Disk Subsystem: 1x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SuSE LinuxEnterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T
applications, Version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Intel Fortran Compiler for applications
running on Intel 64, Version 10.0
Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1166 23.3 1166 23.3 1169 23.3 2 1159 23.5 1166 23.3 1169 23.2
416.gamess 2 1956 20.0 1968 19.9 1965 19.9 2 1938 20.2 1931 20.3 1931 20.3
433.milc 2 1559 11.8 1558 11.8 1558 11.8 2 1551 11.8 1554 11.8 1548 11.9
434.zeusmp 2 1241 14.7 1240 14.7 1240 14.7 2 1250 14.6 1246 14.6 1247 14.6
435.gromacs 2 829 17.2 816 17.5 828 17.3 2 828 17.2 811 17.6 824 17.3
436.cactusADM 2 1040 23.0 1033 23.1 1038 23.0 2 1021 23.4 1021 23.4 1066 22.4
437.leslie3d 2 1338 14.1 1339 14.0 1338 14.1 2 1360 13.8 1363 13.8 1359 13.8
444.namd 2 935 17.2 935 17.1 935 17.2 2 927 17.3 927 17.3 927 17.3
447.dealII 2 802 28.5 802 28.5 803 28.5 2 737 31.1 738 31.0 739 31.0
450.soplex 2 1140 14.6 1142 14.6 1140 14.6 2 1072 15.6 1074 15.5 1073 15.5
453.povray 2 483 22.0 483 22.0 484 22.0 2 434 24.5 436 24.4 433 24.6
454.calculix 2 1025 16.1 1024 16.1 1026 16.1 2 1026 16.1 1025 16.1 1026 16.1
459.GemsFDTD 2 1650 12.9 1648 12.9 1649 12.9 2 1662 12.8 1648 12.9 1649 12.9
465.tonto 2 1023 19.2 1025 19.2 1023 19.2 2 992 19.8 993 19.8 994 19.8
470.lbm 2 1842 14.9 1842 14.9 1842 14.9 2 1783 15.4 1782 15.4 1781 15.4
481.wrf 2 986 22.7 989 22.6 991 22.5 2 986 22.7 986 22.6 987 22.6
482.sphinx3 2 1895 20.6 1900 20.5 1894 20.6 2 1826 21.3 1824 21.4 1823 21.4

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

C++ benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

Fortran benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

Benchmarks using both Fortran and C:

 -xP   -ipo   -O3   -static   -no-prec-div

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.0.023/bin/icc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.0.023/bin/icpc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.0.023/bin/ifort   -L/opt/intel/fc/10.0.023/lib   -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -no-scalar-rep   -prefetch
482.sphinx3:  -xP   -ipo   -O3   -static   -no-prec-div   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -ansi-alias   -no-scalar-rep
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xP   -ipo   -O3   -static   -no-prec-div
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -Ob0   -ansi-alias   -no-scalar-rep
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div
437.leslie3d:  Same as 434.zeusmp
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -Ob0
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -auto-ilp32
454.calculix:  -xP   -ipo   -O3   -static   -no-prec-div   -auto-ilp32
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic10-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.xml.
