SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3755 (AMD Opteron 8224 SE)

CPU2006 license: 11 Test date: Aug-2007
Test sponsor: IBM Corporation Hardware Availability: Sep-2007
Tested by: Advanced Micro Devices Software Availability: Oct-2007

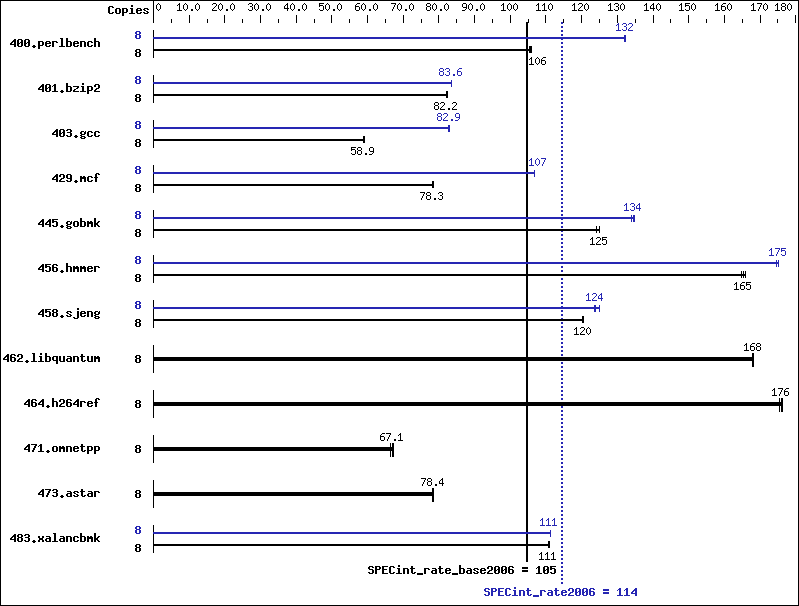

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8224 SE
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1, 2, 3, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16 x 2GB, DDR2-667 CL5 ECC REG Dual Rank)
Disk Subsystem: 1 x 73GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 SP1 64-bit kernel
Compiler: The Portland Group (PGI)
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 739 106   742 105   739 106   8 591 132   593 132   591 132
401.bzip2 8 940 82.1 939 82.2 938 82.3 8 923 83.6 923 83.6 923 83.6
403.gcc 8 1089 59.2 1094 58.9 1096 58.7 8 776 83.0 776 82.9 778 82.8
429.mcf 8 932 78.3 931 78.3 928 78.6 8 683 107   684 107   683 107
445.gobmk 8 671 125   672 125   676 124   8 623 135   627 134   624 134
456.hmmer 8 450 166   453 165   451 165   8 426 175   428 175   426 175
458.sjeng 8 804 120   804 120   804 120   8 775 125   783 124   782 124
462.libquantum 8 986 168   987 168   986 168   8 986 168   987 168   986 168
464.h264ref 8 1005 176   1006 176   1009 175   8 1005 176   1006 176   1009 175
471.omnetpp 8 744 67.2 746 67.1 752 66.5 8 744 67.2 746 67.1 752 66.5
473.astar 8 718 78.3 715 78.5 716 78.4 8 718 78.3 715 78.5 716 78.4
483.xalancbmk 8 498 111   499 111   498 111   8 496 111   496 111   496 111

Operating System Notes

 Environment stack size set to 'unlimited'
 'numactl' was used to bind copies to the cores
 Set vm/nr_hugepages=1024 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mfprelaxed   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   --zc_eh   -tp k8-32   -Bstatic_pgi   -lsmartheap

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w   -L/proj/qa/smartheap/SmartHeap_8/lib

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:8   -Mnounroll   -tp k8-64   -Bstatic_pgi
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
403.gcc:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:32   -Mipa=fast   -Mipa=inline   -tp k8-32   -Bstatic_pgi
429.mcf:  -fastsse   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge:16   -tp k8-32   -Bstatic_pgi
445.gobmk:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -fast   -O4   -Msmartalloc=huge:32   -Mfprelaxed   -Mnovect   -tp k8-64   -Bstatic_pgi
456.hmmer:  -fast   -Msmartalloc=huge:32   -Mfprelaxed   -Msafeptr   -Mipa=const   -Mipa=ptr   -Mipa=arg   -tp k8-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -Msmartalloc=huge:32   -Mfprelaxed   -tp k8-64   -Bstatic_pgi
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  basepeak = yes
483.xalancbmk:  -fastsse   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   --zc_eh   -tp k8-32   -Bstatic_pgi   -lsmartheap

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w   -L/proj/qa/smartheap/SmartHeap_8/lib

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.01.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:06:39 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 4 September 2007.
