| CPU2006 license: | 11 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Jul-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

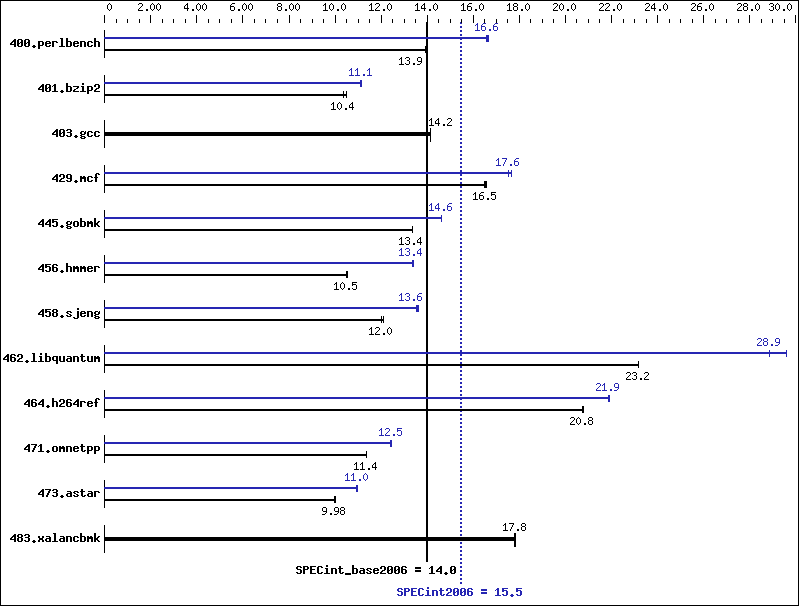

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 702 | 13.9 | 702 | 13.9 | 700 | 14.0 | 588 | 16.6 | 589 | 16.6 | 586 | 16.7 |
| 401.bzip2 | 921 | 10.5 | 930 | 10.4 | 929 | 10.4 | 864 | 11.2 | 866 | 11.1 | 870 | 11.1 |
| 403.gcc | 569 | 14.1 | 569 | 14.2 | 569 | 14.2 | 569 | 14.1 | 569 | 14.2 | 569 | 14.2 |
| 429.mcf | 551 | 16.6 | 551 | 16.5 | 553 | 16.5 | 516 | 17.7 | 520 | 17.5 | 520 | 17.6 |
| 445.gobmk | 785 | 13.4 | 785 | 13.4 | 785 | 13.4 | 717 | 14.6 | 717 | 14.6 | 717 | 14.6 |
| 456.hmmer | 887 | 10.5 | 887 | 10.5 | 887 | 10.5 | 697 | 13.4 | 697 | 13.4 | 698 | 13.4 |
| 458.sjeng | 1000 | 12.1 | 1007 | 12.0 | 1007 | 12.0 | 892 | 13.6 | 895 | 13.5 | 888 | 13.6 |
| 462.libquantum | 895 | 23.2 | 895 | 23.2 | 895 | 23.2 | 700 | 29.6 | 717 | 28.9 | 718 | 28.8 |
| 464.h264ref | 1066 | 20.8 | 1065 | 20.8 | 1067 | 20.7 | 1009 | 21.9 | 1013 | 21.9 | 1012 | 21.9 |
| 471.omnetpp | 550 | 11.4 | 550 | 11.4 | 549 | 11.4 | 502 | 12.5 | 501 | 12.5 | 504 | 12.4 |
| 473.astar | 704 | 9.98 | 704 | 9.97 | 701 | 10.0 | 641 | 11.0 | 640 | 11.0 | 643 | 10.9 |
| 483.xalancbmk | 387 | 17.8 | 388 | 17.8 | 387 | 17.8 | 387 | 17.8 | 388 | 17.8 | 387 | 17.8 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
