SPEC® CFP2006 Result

Bull SAS

NovaScale R440
(Intel Xeon processor 5120,1.86GHz)

SPECfp®2006 = 10.9

SPECfp_base2006 = 10.7

CPU2006 license:	20	Test date:	May-2007
Test sponsor:	Bull SAS	Hardware Availability:	Mar-2007
Tested by:	Bull SAS	Software Availability:	Dec-2006

Hardware
CPU Name:	Intel Xeon 5120
CPU Characteristics:	1.86 GHz, 4 MB L2, 1066 MHz system bus
CPU MHz:	1866
FPU:	Integrated
CPU(s) enabled:	1 core, 1 chip, 2 cores/chip
CPU(s) orderable:	1 to 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	24 GB (12x2 GB) FB-DIMM PC2-5300F ECC CL5
Disk Subsystem:	1x73 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (EM64T) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_cc_c_9.1.045 Build no 20061101 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

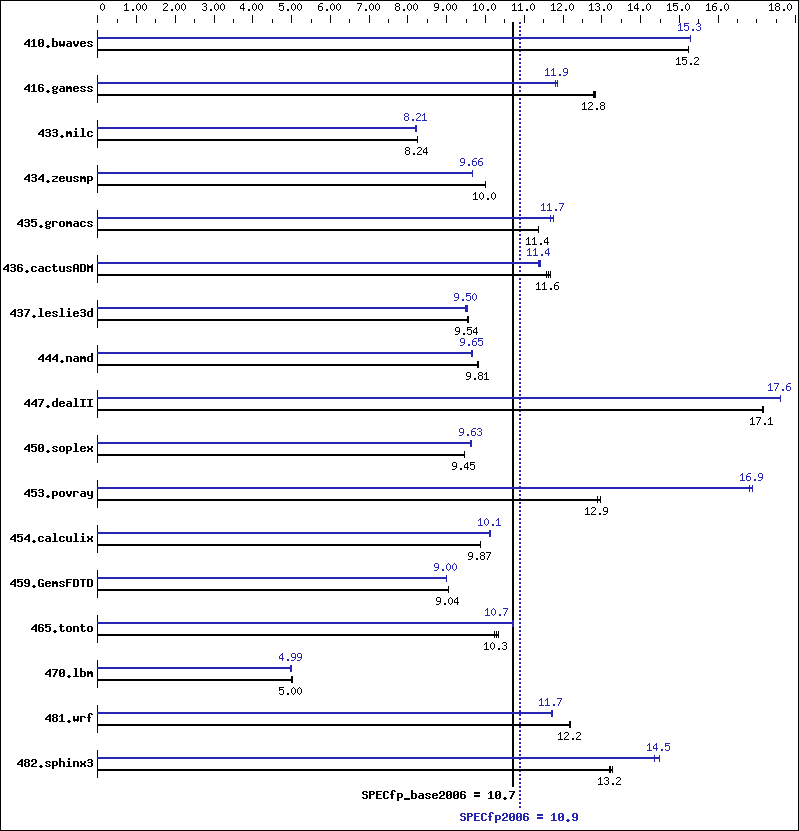

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	892	15.2	892	15.2	892	15.2	890	15.3	890	15.3	890	15.3
416.gamess	1526	12.8	1531	12.8	1528	12.8	1652	11.9	1652	11.9	1657	11.8
433.milc	1114	8.24	1114	8.24	1114	8.24	1118	8.21	1119	8.20	1118	8.21
434.zeusmp	910	10.0	911	9.99	910	10.0	942	9.66	942	9.66	942	9.66
435.gromacs	628	11.4	628	11.4	628	11.4	612	11.7	608	11.7	608	11.7
436.cactusADM	1027	11.6	1032	11.6	1024	11.7	1050	11.4	1050	11.4	1047	11.4
437.leslie3d	985	9.54	986	9.53	983	9.56	987	9.53	989	9.50	990	9.49
444.namd	818	9.80	816	9.83	818	9.81	830	9.66	832	9.64	831	9.65
447.dealII	668	17.1	667	17.1	667	17.2	650	17.6	649	17.6	650	17.6
450.soplex	883	9.45	882	9.45	883	9.45	866	9.63	865	9.64	867	9.61
453.povray	413	12.9	411	13.0	413	12.9	315	16.9	317	16.8	315	16.9
454.calculix	835	9.88	836	9.87	836	9.87	816	10.1	814	10.1	815	10.1
459.GemsFDTD	1173	9.04	1173	9.04	1173	9.04	1179	9.00	1181	8.98	1179	9.00
465.tonto	952	10.3	962	10.2	957	10.3	917	10.7	920	10.7	917	10.7
470.lbm	2742	5.01	2747	5.00	2754	4.99	2747	5.00	2755	4.99	2758	4.98
481.wrf	917	12.2	918	12.2	916	12.2	952	11.7	954	11.7	954	11.7
482.sphinx3	1468	13.3	1473	13.2	1476	13.2	1344	14.5	1356	14.4	1345	14.5

Operating System Notes

 Environment stack size set to 'unlimited'

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in menu.lst

 /usr/bin/taskset utility used to bind CPU(s) to processes

General Notes

    The NovaScale R440 and the NovaScale R460 models are
    electronically equivalent.
    The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64
