SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X2200 M2

CPU2006 license: 6 Test date: Apr-2007
Test sponsor: Sun Microsystems Hardware Availability: Feb-2007
Tested by: Sun Microsystems Software Availability: Aug-2006

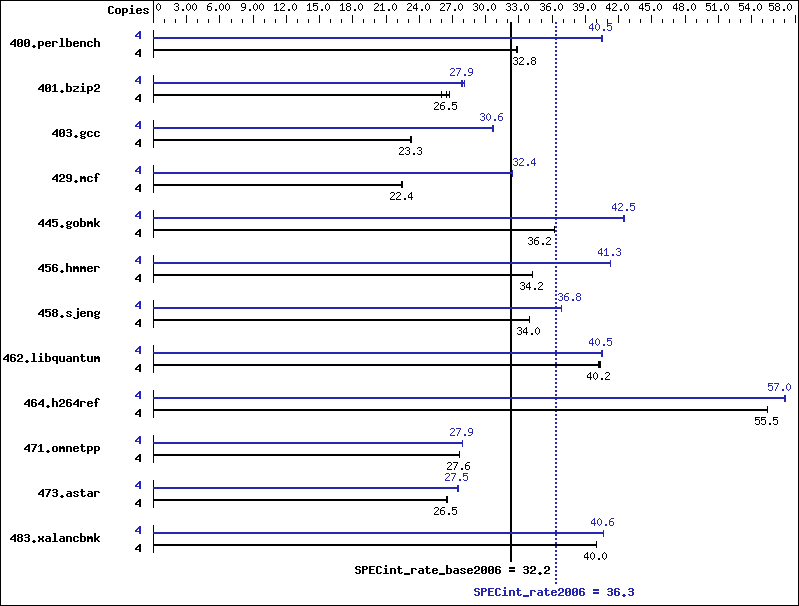

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2210
CPU Characteristics:
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB, DDR2-667 CL5 ECC Reg Dual Rank)
Disk Subsystem: SATA, 250 GB,7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux
AS release 4 Update 5
Compiler: QLogic PathScale
Compiler Suite, Release 2.5
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill's SmartHeap 8.0 32-bit
Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1190 32.8 1191 32.8 1192 32.8 4 965 40.5 965 40.5 966 40.5
401.bzip2 4 1482 26.0 1459 26.5 1445 26.7 4 1375 28.1 1383 27.9 1387 27.8
403.gcc 4 1380 23.3 1381 23.3 1388 23.2 4 1053 30.6 1052 30.6 1049 30.7
429.mcf 4 1624 22.5 1625 22.4 1626 22.4 4 1125 32.4 1124 32.4 1125 32.4
445.gobmk 4 1158 36.2 1158 36.2 1157 36.3 4 988 42.5 987 42.5 987 42.5
456.hmmer 4 1091 34.2 1091 34.2 1092 34.2 4 904 41.3 904 41.3 905 41.2
458.sjeng 4 1425 34.0 1425 34.0 1425 34.0 4 1315 36.8 1315 36.8 1314 36.8
462.libquantum 4 2054 40.3 2059 40.2 2064 40.2 4 2048 40.5 2046 40.5 2048 40.5
464.h264ref 4 1595 55.5 1596 55.5 1595 55.5 4 1552 57.1 1553 57.0 1553 57.0
471.omnetpp 4 905 27.6 905 27.6 905 27.6 4 895 27.9 895 27.9 895 27.9
473.astar 4 1063 26.4 1060 26.5 1059 26.5 4 1022 27.5 1021 27.5 1022 27.5
483.xalancbmk 4 691 40.0 691 40.0 690 40.0 4 680 40.6 680 40.6 679 40.6

General Notes

taskset utility used to bind CPU(s) to processes
Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp

Base Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O2   -ipa   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -WOPT:aggstr=0   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -IPA:pu_reorder=2   -CG:gcm=off   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.27.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.27.xml.
