| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

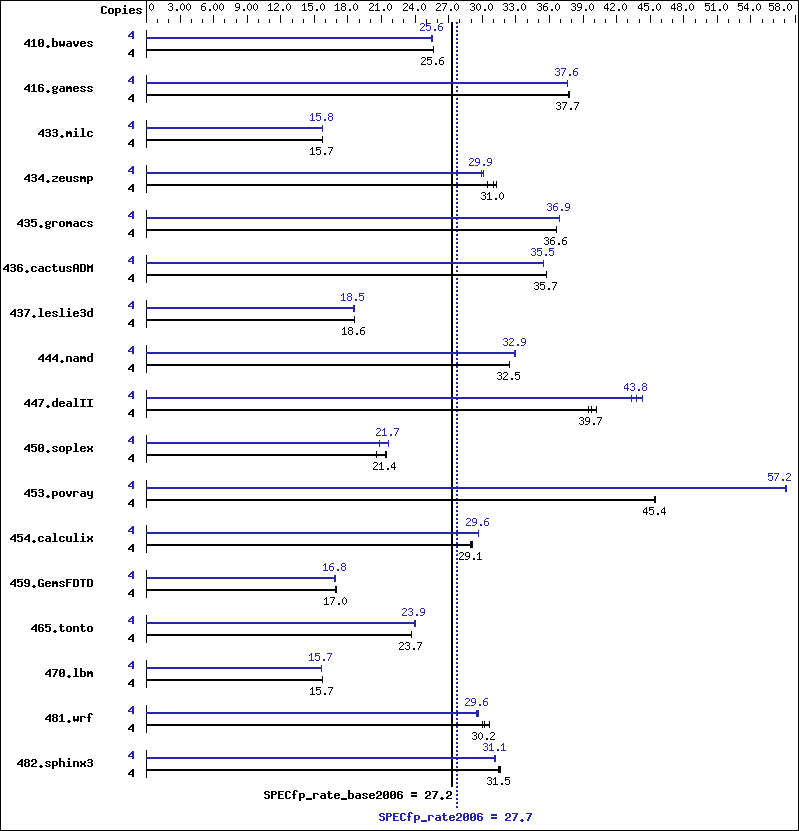

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2120 | 25.6 | 2122 | 25.6 | 2124 | 25.6 | 4 | 2125 | 25.6 | 2132 | 25.5 | 2126 | 25.6 |
| 416.gamess | 4 | 2076 | 37.7 | 2075 | 37.8 | 2076 | 37.7 | 4 | 2082 | 37.6 | 2081 | 37.6 | 2081 | 37.6 |
| 433.milc | 4 | 2335 | 15.7 | 2335 | 15.7 | 2333 | 15.7 | 4 | 2336 | 15.7 | 2329 | 15.8 | 2330 | 15.8 |
| 434.zeusmp | 4 | 1166 | 31.2 | 1193 | 30.5 | 1175 | 31.0 | 4 | 1216 | 29.9 | 1216 | 29.9 | 1210 | 30.1 |
| 435.gromacs | 4 | 780 | 36.6 | 779 | 36.6 | 779 | 36.7 | 4 | 774 | 36.9 | 774 | 36.9 | 773 | 36.9 |
| 436.cactusADM | 4 | 1339 | 35.7 | 1339 | 35.7 | 1339 | 35.7 | 4 | 1347 | 35.5 | 1347 | 35.5 | 1347 | 35.5 |
| 437.leslie3d | 4 | 2028 | 18.5 | 2019 | 18.6 | 2021 | 18.6 | 4 | 2029 | 18.5 | 2029 | 18.5 | 2028 | 18.5 |
| 444.namd | 4 | 989 | 32.4 | 988 | 32.5 | 988 | 32.5 | 4 | 975 | 32.9 | 974 | 32.9 | 973 | 33.0 |
| 447.dealII | 4 | 1152 | 39.7 | 1160 | 39.4 | 1138 | 40.2 | 4 | 1045 | 43.8 | 1056 | 43.3 | 1032 | 44.3 |
| 450.soplex | 4 | 1623 | 20.6 | 1557 | 21.4 | 1561 | 21.4 | 4 | 1602 | 20.8 | 1541 | 21.7 | 1541 | 21.7 |
| 453.povray | 4 | 469 | 45.4 | 468 | 45.4 | 468 | 45.5 | 4 | 373 | 57.1 | 372 | 57.2 | 372 | 57.2 |
| 454.calculix | 4 | 1142 | 28.9 | 1136 | 29.1 | 1132 | 29.1 | 4 | 1114 | 29.6 | 1113 | 29.6 | 1112 | 29.7 |
| 459.GemsFDTD | 4 | 2510 | 16.9 | 2495 | 17.0 | 2495 | 17.0 | 4 | 2526 | 16.8 | 2517 | 16.9 | 2520 | 16.8 |
| 465.tonto | 4 | 1663 | 23.7 | 1662 | 23.7 | 1663 | 23.7 | 4 | 1644 | 23.9 | 1647 | 23.9 | 1637 | 24.0 |
| 470.lbm | 4 | 3494 | 15.7 | 3493 | 15.7 | 3493 | 15.7 | 4 | 3507 | 15.7 | 3507 | 15.7 | 3507 | 15.7 |
| 481.wrf | 4 | 1488 | 30.0 | 1480 | 30.2 | 1456 | 30.7 | 4 | 1513 | 29.5 | 1511 | 29.6 | 1509 | 29.6 |
| 482.sphinx3 | 4 | 2479 | 31.4 | 2473 | 31.5 | 2468 | 31.6 | 4 | 2510 | 31.1 | 2503 | 31.1 | 2503 | 31.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
