SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard X7DBR-8

SPECint®_rate2006 = Not Run

CPU2006 license: 001176 Test date: Oct-2006
Test sponsor: Supermicro Hardware Availability: May-2006
Tested by: Supermicro Software Availability: Oct-2006

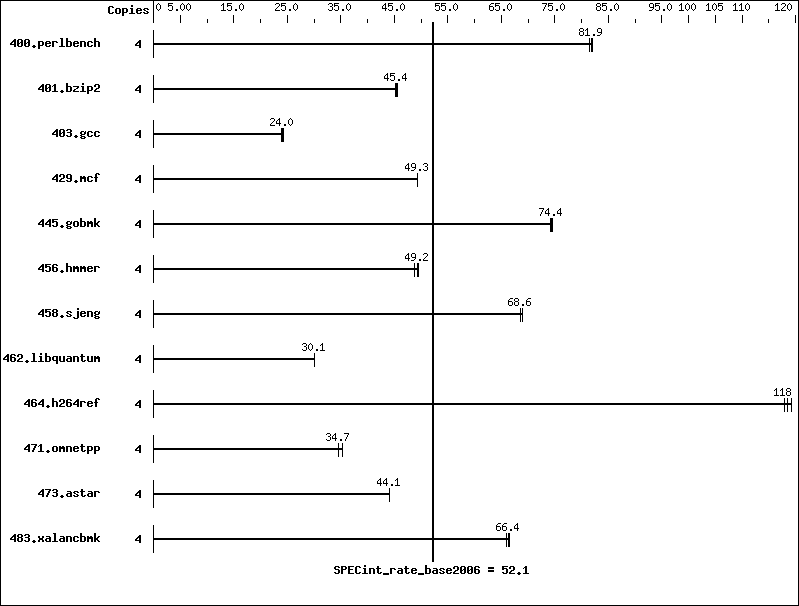

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.0GHz 1333 System Bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 X 2GB ECC, CL5, 667MHz, FBDIMM)
Disk Subsystem: 160GB IDE, 7200RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition W/ SP1
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
SmartHeap Library Version 7.4
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 477 81.9 477 82.0 479 81.5
401.bzip2 4 854 45.2 848 45.5 850 45.4
403.gcc 4 1342 24.0 1323 24.3 1340 24.0
429.mcf 4 740 49.3 740 49.3 740 49.3
445.gobmk 4 562 74.6 564 74.4 566 74.1
456.hmmer 4 758 49.2 753 49.5 767 48.7
458.sjeng 4 705 68.6 705 68.6 701 69.0
462.libquantum 4 2758 30.1 2758 30.1 2757 30.1
464.h264ref 4 748 118   743 119   751 118
471.omnetpp 4 709 35.2 721 34.7 722 34.6
473.astar 4 637 44.1 636 44.1 638 44.0
483.xalancbmk 4 418 66.0 416 66.4 415 66.4

General Notes

Tested systems can be used with SC816S-R700 case,
To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DBR-8.cfm
The system bus runs at 1333 MHz

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.03.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:09:46 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 26 December 2006.
